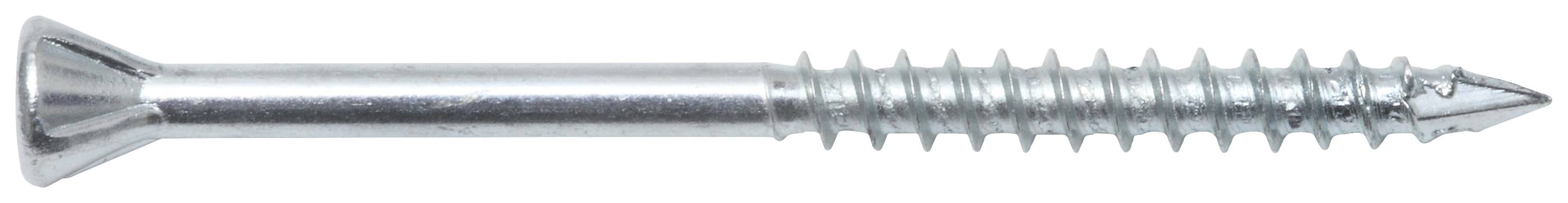

SWG 1652355019 Floorboard screw 3.5 mm 50 mm Star socket Steel shiny 400 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 6 mm
- Thread length min.: 24 mm
- Surface: A2K zinc, layer thickness 5, glossy, bluish
- Thread execution: Part thread
- Rockwell hardness, HRC min.: 32 HRC
- Head height max. 3.8 mm
- Head diameter min.: 5.5 mm
- Hardness according to Rockwell, HRC max. 45 HRC
- Head height min. 3.5 mm
- Thread length max. 26 mm
- Surface hardness according to Vickers, HV max. 450 HV
- Inner drive: TX10
- Breaking torque min.: 3.04 Nm
- Surface hardness according to Vickers, HV min.: 450 HV
- Product type
Floorboard screw
- Drive
Star socket
- Material
Steel
- Thread size
3.5 mm
- (Ø)
3.5 mm
- Length
50 mm
- Dim
(Ø x L) 3.5 mm x 50 mm
- Content
400 pc(s)
- Material properties
shiny
