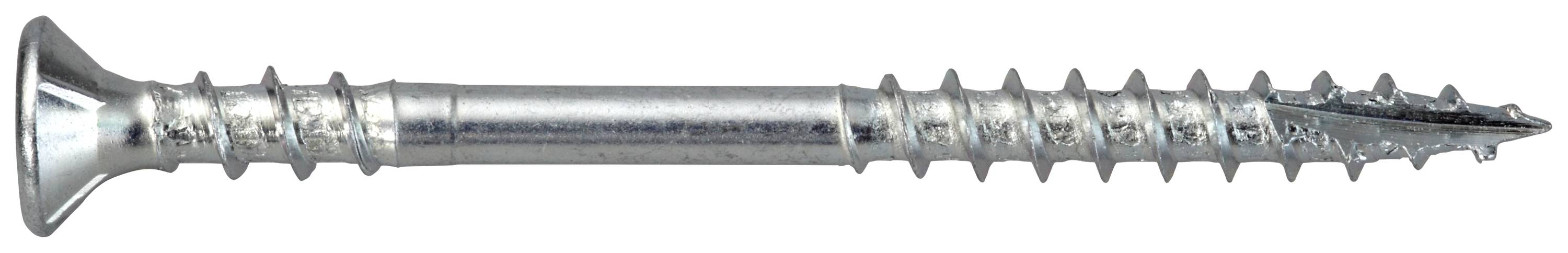

SWG 1659404019 Flooring screw 4 mm 40 mm Star socket Steel shiny 1000 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 8 mm
- Thread length min.: 16 mm
- Thread diameter max. (d w): 4 mm
- Surface: A2K zinc, layer thickness 5, glossy, bluish
- Length max. 40 mm
- Rockwell hardness, HRC min.: 32 HRC
- Min. Thread diameter (D thread) 3.7 mm
- Wire diameter 2.75 mm.
- Head height max. 3 mm
- Thread length: 17 mm
- Head diameter min.: 7.5 mm
- Breaking torque 3.04 Nm
- Hardness according to Rockwell, HRC max. 45 HRC
- Head height min. 2.5 mm
- Penetration depth min.: 1.55 mm
- Slope 2.2 mm
- Thread length max. 18 mm
- Inner drive: TX20
- Length min. 39 mm
- Penetration depth max. 1.9 mm
- Bending angle: 25
- Hardness according to Vickers, HV: 450 HV
- Product type
Flooring screw
- Drive
Star socket
- Material
Steel
- Thread size
4 mm
- (Ø)
4 mm
- Length
40 mm
- Dim
(Ø x L) 4 mm x 40 mm
- Content
1000 pc(s)
- Material properties
shiny
