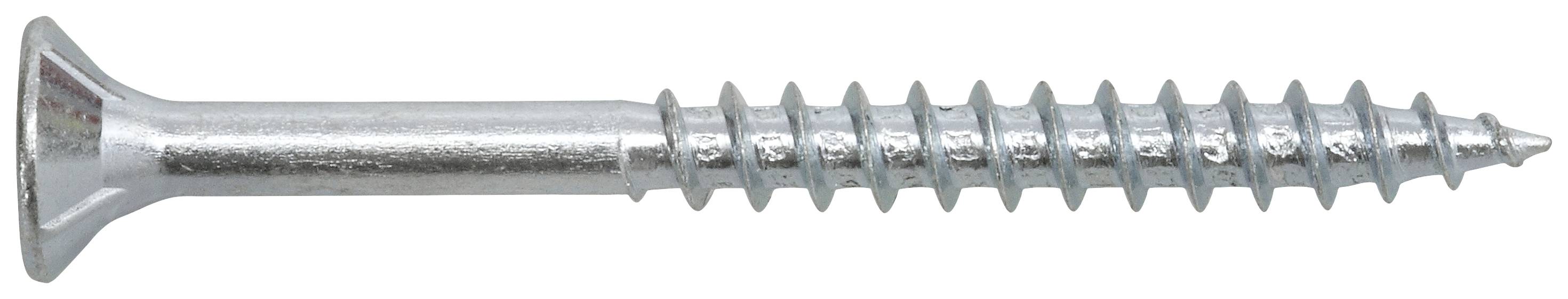

SWG 1760254019 Spax screw 5 mm 40 mm Star socket Steel 500 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 10 mm
- Core hardness according to Vickers, HV min.: 32 HV
- Thread length min.: 25 mm
- Thread diameter max. (d w): 5 mm
- Surface: A2K zinc, layer thickness 5, glossy, bluish
- Thread execution: Part thread
- Min. Thread diameter (D thread) 4.75 mm
- Core hardness according to Vickers, HV max. 45 HV
- Head height max. 3 mm
- Head diameter min.: 9.5 mm
- Breaking torque 6.27 Nm
- Wire diameter min.: 2.9 mm
- Head height min. 2.6 mm
- Penetration depth min.: 2 mm
- Wire diameter max. 3.2 mm
- Slope 2.2 mm
- Thread length max. 27 mm
- Surface hardness according to Vickers, HV max. 750 HV
- Inner drive: TX25
- Penetration depth max. 2.65 mm
- Bending angle 15 degrees
- Surface hardness according to Vickers, HV min.: 450 HV
- Product type
Spax screw
- Drive
Star socket
- Material
Steel
- (Ø)
5 mm
- Length
40 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 40 mm
- Content
500 pc(s)
