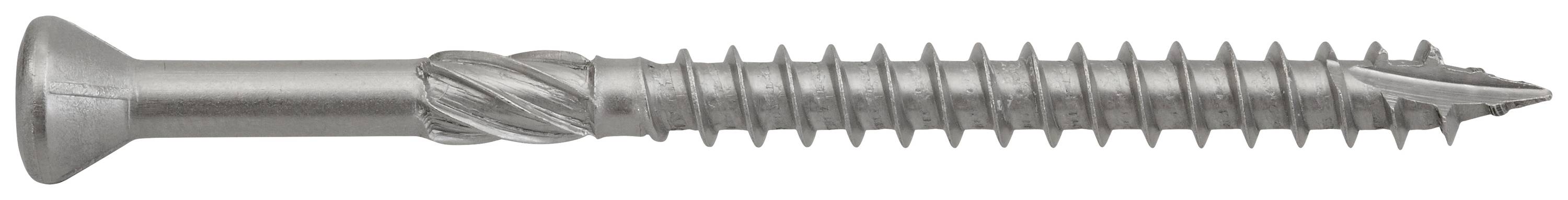

SWG 1817507019 Timber decking screw 5 mm 70 mm Star socket Stainless steel V2A A2 400 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 7.8 mm
- Thread length min.: 40.5 mm
- Thread diameter max. (d w): 5.1 mm
- Thread execution: Part thread
- Min. Thread diameter (D thread) 4.85 mm
- Head height max. 4.9 mm
- Head diameter min.: 7.4 mm
- Breaking torque 4.2 Nm
- Head height min. 4.55 mm
- Core diameter 3.2 mm
- Slope 2.3 mm
- Thread length max. 42 mm
- Inner drive: TX25
- Bending angle 45 degrees
- Length of marking tip 11 mm
- Product type
Timber decking screw
- Drive
Star socket
- Material
Stainless steel V2A
- Thread size
5 mm
- (Ø)
5 mm
- Length
70 mm
- Dim
(Ø x L) 5 mm x 70 mm
- Content
400 pc(s)
- Material properties
A2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2341615 SWG 1817507019 Timber decking screw 5 mm 70 mm Star socket Stainless steel V2A A2 400 pc(s)
