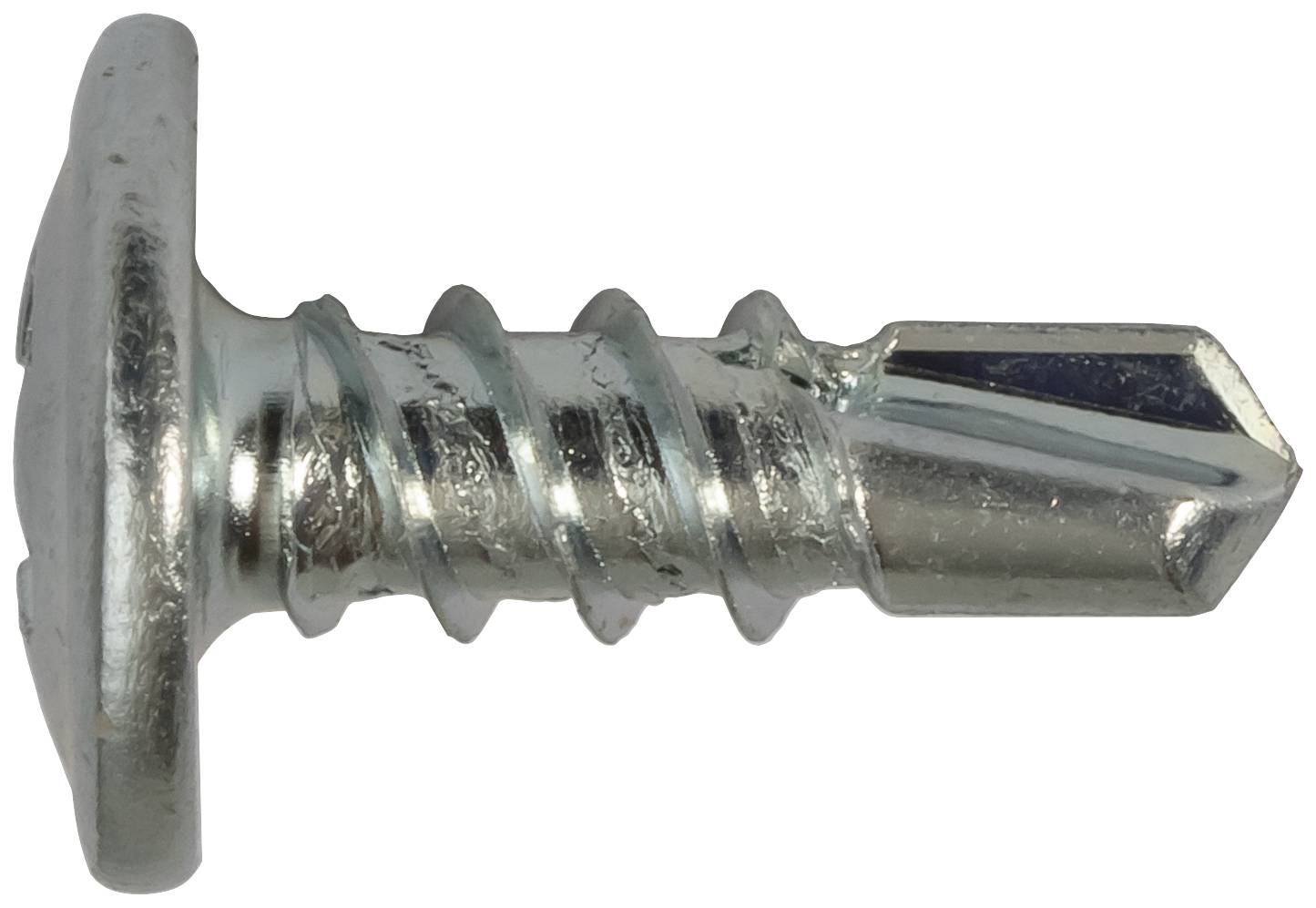

SWG 18934201319 Rail screw connector 4.2 mm 13 mm Phillips Steel shiny 1000 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 10.2 mm
- Core hardness according to Vickers, HV min.: 300 HV
- Surface: A2K zinc, layer thickness 5, glossy, bluish
- Breaking torque max. 4.2 Nm
- Core hardness according to Vickers, HV max. 480 HV
- Head height max. 2.5 mm
- Diameter min. 4 mm
- Head diameter min.: 9.6 mm
- Head height min. 2 mm
- Diameter max. 4.2 mm
- Surface hardness according to Vickers, HV max. 720 HV
- Drill tip length min.: 4.5 mm
- Internal drive H2
- Thread shape: Fine thread
- Bending angle 15 degrees
- Breaking torque min.: 4.2 Nm
- Drill tip width min.: 3.3 mm
- Surface hardness according to Vickers, HV min.: 620 HV
- EN-Standard: 14566 Mechanical fixing agent for gypsum board systems
- Max. Drilling tip width: 3.5 mm
- Product type
Rail screw connector
- Drive
Phillips
- Material
Steel
- (Ø)
4.2 mm
- Length
13 mm
- Dim
(Ø x L) 4.2 mm x 13 mm
- Content
1000 pc(s)
- Material properties
shiny
