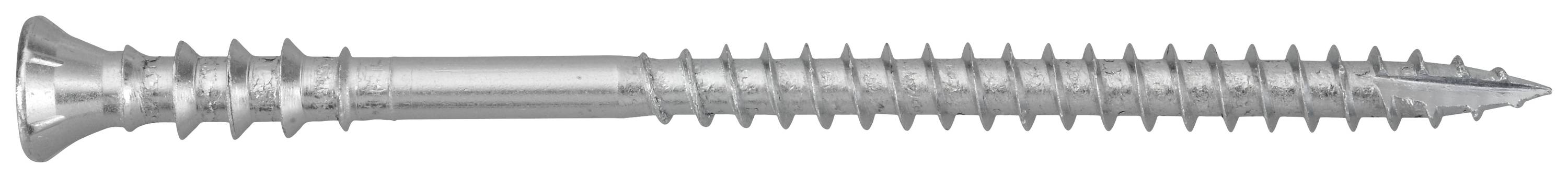

SWG 234469019 Adjustment screws 6 mm 90 mm Star socket Steel 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Head diameter max. 10 mm
- Thread length min.: 38.5 mm
- Thread diameter max. (d w): 6.1 mm
- Surface: A2K zinc, layer thickness 5, glossy, bluish
- Length max. 91.75 mm
- Breaking torque max. 10.78 Nm
- Min. Thread diameter (D thread) 5.7 mm
- Diameter min. 5.7 mm
- Head diameter min.: 9.7 mm
- Length of lower head thread with head max.: 19.5 mm
- Wire diameter min.: 4.25 mm
- Penetration depth min.: 2.02 mm
- Wire diameter max. 4.45 mm
- Diameter max. 6.1 mm
- Slope 2.86 mm
- Thread length max. 41.5 mm
- Inner drive: TX25
- Length min. 88.25 mm
- Penetration depth max. 2.42 mm
- Length of lower head thread with head min.: 16 mm
- Surface hardness according to Vickers, HV min.: 450 HV
- Product type
Adjustment screws
- Drive
Star socket
- Material
Steel
- (Ø)
6 mm
- Length
90 mm
- Head shape
Countersunk
- Dim
(Ø x L) 6 mm x 90 mm
- Content
100 pc(s)
