SWG Hox 17900351667 Countersunk screws 3.5 mm 16 mm Star DIN 18360 Steel zinc plated 200 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

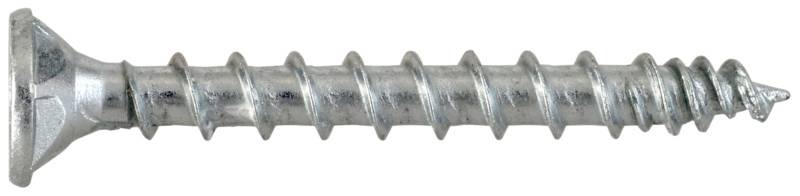

SWG Hox 17900351667 wood screw 3.5 x 16 mm HX10 inner drive short
- The nominal diameter of 3.5 mm enables a compact profile for close joints and minimum material misalignment. The nominal length of 16 mm is suitable for short fixing jobs with low penetration. The internal HX10 drive reduces slipping during motorized or manual turn-in and ensures even torque transmission. The delivery takes place in a 200-pack for large consumption and reduces the re-order requirement.
Technical specifications
- Product type
Countersunk screws
- Drive
Star
- Material
Steel
- Thread size
3.5 mm
- (Ø)
3.5 mm
- Length
16 mm
- Head shape
Countersunk
- Dim
(Ø x L) 3.5 mm x 16 mm
- DIN standard
DIN 18360
- Content
200 pc(s)
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 3595401 SWG Hox 17900351667 Countersunk screws 3.5 mm 16 mm Star DIN 18360 Steel zinc plated 200 pc(s)
User & Safety Instructions
User & Safety Instructions 3595401 SWG Hox 17900351667 Countersunk screws 3.5 mm 16 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Description
This wood screw is designed for mechanical attachment in wood and similar surfaces. It secures components by converting the rotary motion via the thread into a linear feed, thus creating a friction and pressure tension between the parts. The installation is usually carried out with a suitable HX10 screwdriver bit which engages the hexagon socket to prevent controlled torque and overturning. Due to its short length, it is suitable for thin plates, mounting surfaces or when the substructure is not sufficiently deep to use longer screws. The screw is supplied in large quantities and is therefore suitable for Ideal for repeated assembly or production tasks requiring uniform, flat fasteners.
This text is machine translated.
This text is machine translated.
Features
- Nominal diameter 3.5 mm
- Nominal length 16 mm
- Internal drive: HX10
- Contains 200 pieces
- Type 3.5 x 16
