Name: SWG Hox 17901403019 Countersunk screws 4 mm 30 mm Star DIN 18360 Steel zinc plated 1000 pc(s)
Brand: SWG Hox
SKU: 3595234

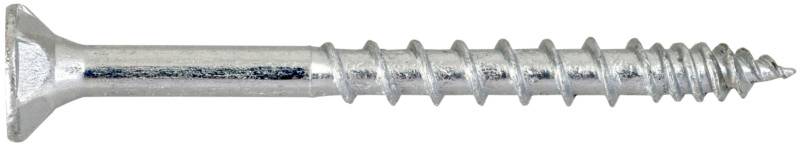

A silver countersunk screw with a sharp pointed tip and coarse threads, shown horizontally on a white background.

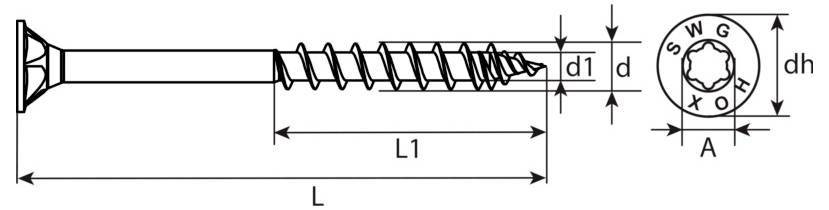

Technical drawing of a hex-head screw with labeled dimensions: overall length L, threaded length L1, diameters d1, d, dh, and head width A.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901403019 wood screw 4x30mm HX20 countersunk head

The shaft with a fine diameter ensures effective penetration and secure grip in the wooden mounting and reduces the risk of gaps during assembly. The HX20 internal drive ensures safe operation and minimizes the slipping of the cam when using electric tools. The countersink geometry makes it easy to flush-mount into wooden components for clean connections and concealed attachments. The delivery takes place in large packs to enable repeated assembly work without frequent reordering.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 4 mm

(Ø): 4 mm

Length: 30 mm

Head shape: Countersunk

Dim: (Ø x L) 4 mm x 30 mm

DIN standard: DIN 18360

Content: 1000 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595234 SWG Hox 17901403019 Countersunk screws 4 mm 30 mm Star DIN 18360 Steel zinc plated 1000 pc(s)

User & Safety Instructions

User & Safety Instructions 3595234 SWG Hox 17901403019 Countersunk screws 4 mm 30 mm Star DIN 18360 Steel zinc plated 1000 pc(s)

Information

Test Summary Report 3595234 SWG Hox 17901403019 Countersunk screws 4 mm 30 mm Star DIN 18360 Steel zinc plated 1000 pc(s)

Conformity certificate

Conformity certificate 3595234 SWG Hox 17901403019 Countersunk screws 4 mm 30 mm Star DIN 18360 Steel zinc plated 1000 pc(s)

Description

This wood screw is designed to secure wooden components that require a flush end and reliable force connection. The screw is fitted with an HX20 screwdriver that engages the internal recess to transfer the torque efficiently and to enable both mechanical and manual assembly. The slim profile of the screw provides for minimum intrusion and secure grip in the wooden base, while the countersunk head ensures a flush locking with the work surface. The screws are supplied in large quantities and are suitable for Ideal for repeated assembly and table work where smooth assembly and uninterrupted workflow are important.
