Name: SWG Hox 17901503063 Countersunk screws 5 mm 30 mm Star DIN 18360 Steel zinc plated 50 pc(s)
Brand: SWG Hox
SKU: 3595301

A silver Phillips-head wood screw shown horizontally on a white background.

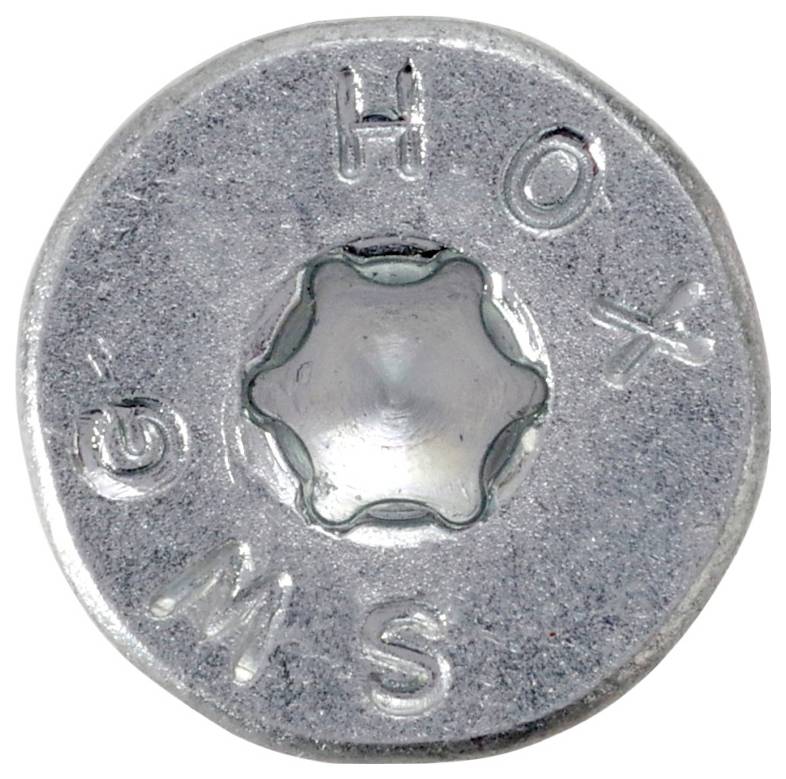

Close-up of a silver tamper-resistant screw head with a star-shaped center and embossed markings around the rim.

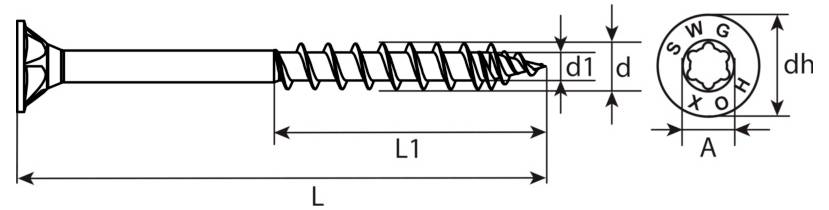

Technical drawing of a screw with labeled dimensions L, L1, d, d1, A, and dh, plus a top view showing the head and drive shape.<br>

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901503063 wood screw 5x30 HX20 inner drive

The cylindrical shaft geometry provides for a secure thread grip in wooden attachments. The compact design allows mounting in thin wood sections and composite plates. The HX20 internal drive reduces overturning when tightening torque with compatible screwdrivers. Delivery in multiple pack for repeated use in smaller assembly work.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 5 mm

(Ø): 5 mm

Length: 30 mm

Head shape: Countersunk

Dim: (Ø x L) 5 mm x 30 mm

DIN standard: DIN 18360

Content: 50 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595301 SWG Hox 17901503063 Countersunk screws 5 mm 30 mm Star DIN 18360 Steel zinc plated 50 pc(s)

User & Safety Instructions

User & Safety Instructions 3595301 SWG Hox 17901503063 Countersunk screws 5 mm 30 mm Star DIN 18360 Steel zinc plated 50 pc(s)

Conformity certificate

Conformity certificate 3595301 SWG Hox 17901503063 Countersunk screws 5 mm 30 mm Star DIN 18360 Steel zinc plated 50 pc(s)

Description

This wood screw is a fastening element for joining wood and similar surfaces. It converts the torque into axial holding force. Assembly is carried out by screwing in the screw until its thread fits into the work-piece and creates clamping force when the screw head is placed on it. The internal HX20 connector allows you to use a suitable screwdriver bit for controlled torque transmission and minimize slipping during machine or manual assembly. Thanks to its compact dimensions, the screw is suitable for light carpentry work, smaller joints and repairs requiring a low protrusion and precise positioning. The product is delivered as a set and enables the assembly of several screws without individual removal.

This text is machine translated.
