Name: SWG Hox 17901504063 Countersunk screws 5 mm 40 mm Star DIN 18360 Steel zinc plated 25 pc(s)
Brand: SWG Hox
SKU: 3595305

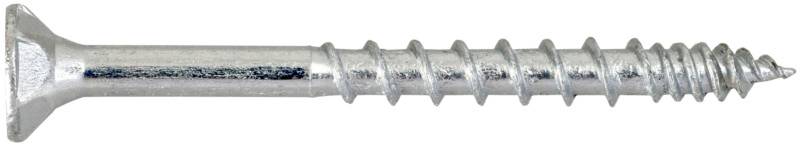

A silver screw with a flat, countersunk head shown horizontally on a white background.

Close-up of a metal Torx security screw head with a six-point star recess and markings on the surface.

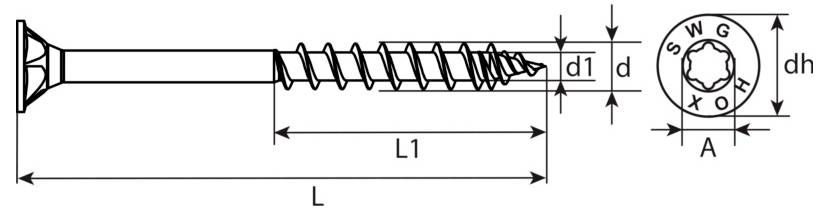

Technical drawing of a screw with labeled dimensions: total length L, threaded length L1, shank diameters d1 and d, head diameter dh, and top view showing drive recess and width A.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901504063 wood screw 5x40mm HX20 countersunk head

The nominal diameter of 5 mm ensures an even drilling action during wood working. The nominal length of 40 mm ensures sufficient anchoring depth in typical wood joints. The HX20 internal drive reduces slipping during machine or manual turn-in. Supplied in a pack of 25 for series installations and smaller project stocks.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 5 mm

(Ø): 5 mm

Length: 40 mm

Head shape: Countersunk

Dim: (Ø x L) 5 mm x 40 mm

DIN standard: DIN 18360

Content: 25 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595305 SWG Hox 17901504063 Countersunk screws 5 mm 40 mm Star DIN 18360 Steel zinc plated 25 pc(s)

User & Safety Instructions

User & Safety Instructions 3595305 SWG Hox 17901504063 Countersunk screws 5 mm 40 mm Star DIN 18360 Steel zinc plated 25 pc(s)

Conformity certificate

Conformity certificate 3595305 SWG Hox 17901504063 Countersunk screws 5 mm 40 mm Star DIN 18360 Steel zinc plated 25 pc(s)

Description

This wood screw is used for fixing wood components. It cuts and compresses the wood fibers in pre-drilled or pilot holes when turning in. Your internal HX20 drive efficiently transfers torque from screwdriver to screw, allowing controlled assembly with minimal overturning. The head countersunk head provides for a flush fit of the screw on the work surface, WAS enables clean surfaces and reworking or covering is permitted. The screws are supplied in a multi-pack and are suitable for recurring installation work, in furniture and table work, which requires a uniform thread penetration and a re-accurate assembly behavior.
