Name: SWG Hox 17901604015 Countersunk screws 6 mm 40 mm Star DIN 18360 Steel zinc plated 250 pc(s)
Brand: SWG Hox
SKU: 3595362

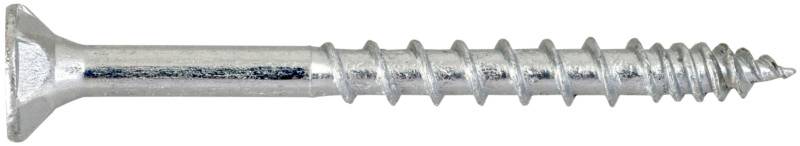

A silver Phillips-head screw shown horizontally on a white background.

Close-up of a silver Torx security screw head with a star-shaped recessed drive and stamped markings around the rim.

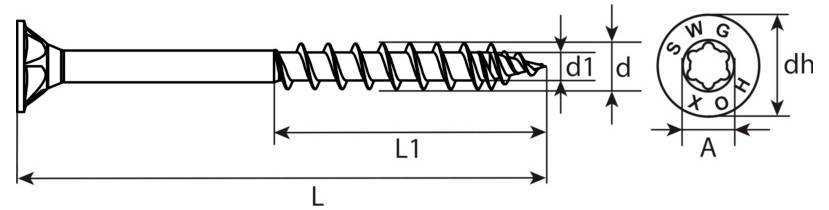

Technical diagram of a screw with labeled dimensions L, L1, d1, d, A, and dh, plus top and side views showing the head and threaded shaft.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901604015 wood screw 6x40 HX30 internal drive

The nominal diameter of 6 mm ensures a uniform fit for metric pilot holes and thus a secure hold in the wood. The nominal length of 40 mm allows for safe penetration in typical wood joints and mounting applications. The internal HX30 drive reduces slipping during machine assembly and improves torque transmission. The delivery is made in a pack size of 250 for large projects, which reduces the re-ordering frequency.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 6 mm

(Ø): 6 mm

Length: 40 mm

Head shape: Countersunk

Dim: (Ø x L) 6 mm x 40 mm

DIN standard: DIN 18360

Content: 250 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595362 SWG Hox 17901604015 Countersunk screws 6 mm 40 mm Star DIN 18360 Steel zinc plated 250 pc(s)

User & Safety Instructions

User & Safety Instructions 3595362 SWG Hox 17901604015 Countersunk screws 6 mm 40 mm Star DIN 18360 Steel zinc plated 250 pc(s)

Information

Test Summary Report 3595362 SWG Hox 17901604015 Countersunk screws 6 mm 40 mm Star DIN 18360 Steel zinc plated 250 pc(s)

Conformity certificate

Conformity certificate 3595362 SWG Hox 17901604015 Countersunk screws 6 mm 40 mm Star DIN 18360 Steel zinc plated 250 pc(s)

Description

This wood screw is a metric fixing screw for connecting and securing wooden components. It converts the torque in traction and clamping force. The assembly is carried out by screwing in the screw over its internal HX30 hex head. This allows the efficient use of power tools and a controlled torque supply, in order to prevent the screw from overturning. The screw geometry ensures that the thread cuts into the wood and keeps it securely in place. The loads are transmitted via the shaft and head to ensure the stability of the connection. The screws are supplied in a large package and are suitable for repeated assembly work in workshops or on construction sites where a consistent and reproducible fixing power is required.
