Name: SWG Hox 17901607063 Countersunk screws 6 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Brand: SWG Hox
SKU: 3595377

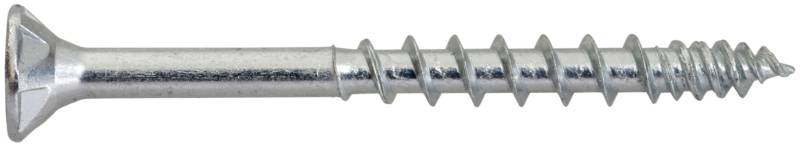

A silver countersunk screw with coarse threads, shown horizontally on a white background.

Close-up of a metal fastener head with a six-lobe star socket and embossed markings, likely a Torx security screw.

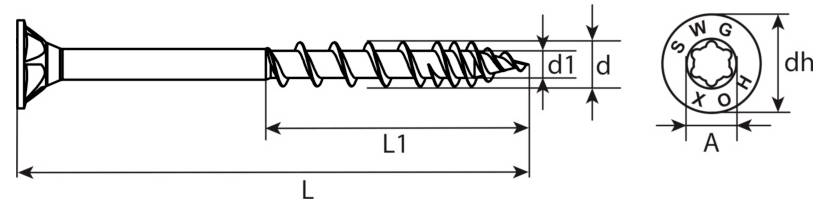

Technical screw diagram showing labeled dimensions L, L1, d, d1, dh, A, and a cross-section detail of the head and shaft.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901607063 wood screw 6x70mm HX30 internal drive

The nominal diameter of 6 mm provides a firm grip on wood joints and supports the load transfer and tensile strength. The nominal length of 70 mm allows deep penetration into the construction wood for a secure attachment. The internal HX30 drive reduces slipping during machine assembly and improves torque transmission. The delivery is made as a 20-piece set, which enables the implementation of several fixings on site without frequent reordering.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 6 mm

(Ø): 6 mm

Length: 70 mm

Head shape: Countersunk

Dim: (Ø x L) 6 mm x 70 mm

DIN standard: DIN 18360

Content: 20 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595377 SWG Hox 17901607063 Countersunk screws 6 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)

User & Safety Instructions

User & Safety Instructions 3595377 SWG Hox 17901607063 Countersunk screws 6 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)

Conformity certificate

Conformity certificate 3595377 SWG Hox 17901607063 Countersunk screws 6 mm 70 mm Star DIN 18360 Steel zinc plated 20 pc(s)

Description

This wood screw is used for fastening and connecting wooden components. It converts the torque into traction force while the thread shaft is screwed into the wood. The hexagonal internal drive enables an efficient transmission of the torque of electrical tools, minimizes the overturning and provides for a re-accurate mounting. The slim shaft and thread profile cut into the wood fibers and ensure a firm hold. The screw is suitable for general carpenters and carpenters where a long thread fixing element is required. It is supplied in large quantities and is intended for projects requiring uniform, mechanical assembly of wooden elements.

This text is machine translated.
