Name: SWG Hox 17901608063 Countersunk screws 6 mm 80 mm Star DIN 18360 Steel zinc plated 20 pc(s)
Brand: SWG Hox
SKU: 3595381

A metal screw with a flat head and coarse threads, shown horizontally on a white background.

Close-up of a metal fastener head with a star-shaped Torx drive and stamped markings around the edge.

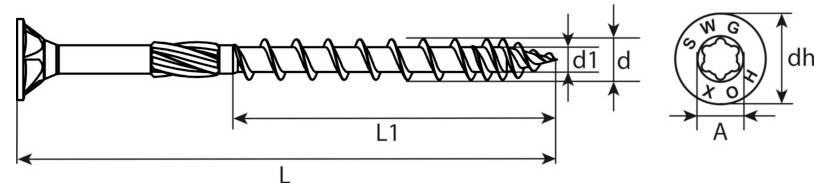

Technical drawing of a screw with labeled dimensions L, L1, d1, d, A, and dh shown in side and top views.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901608063 wood screw 6x80mm HX30 hex drive

The nominal diameter of 6 mm ensures compatibility with standard pilot drills and a reliable hold in wooden bases. The nominal length of 80 mm allows a deep anchoring when connecting thicker wooden components or multi-layered structures. The hexagonal internal drive reduces the over-tightening with a motorized screw-in and thus ensures a controlled fixing. Supplied in 20 pack for optimal storage and repeated assembly work.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 6 mm

(Ø): 6 mm

Length: 80 mm

Head shape: Countersunk

Dim: (Ø x L) 6 mm x 80 mm

DIN standard: DIN 18360

Content: 20 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595381 SWG Hox 17901608063 Countersunk screws 6 mm 80 mm Star DIN 18360 Steel zinc plated 20 pc(s)

User & Safety Instructions

User & Safety Instructions 3595381 SWG Hox 17901608063 Countersunk screws 6 mm 80 mm Star DIN 18360 Steel zinc plated 20 pc(s)

Information

Test Summary Report 3595381 SWG Hox 17901608063 Countersunk screws 6 mm 80 mm Star DIN 18360 Steel zinc plated 20 pc(s)

Conformity certificate

Conformity certificate 3595381 SWG Hox 17901608063 Countersunk screws 6 mm 80 mm Star DIN 18360 Steel zinc plated 20 pc(s)

Description

This wood screw is a fastening element for joining wood elements. It converts the torque into axial holding force. The hexagonal internal drive is compatible with suitable HX30 screwdrivers, enabling efficient installation with electric tools while minimizing slip at the connection point. The thread on the shaft cuts when the screw is screwed into the wood, pulls the components together, creating a strong clamping force. Thanks to their length, the screw can be used through several boards or in frame timber for static mounting and Carpenter's work. The screws are delivered in a 20-pack and are suitable for recurring work in the workshop or on the building site, where a uniform, machine-supported mounting is needed.
