Name: SWG Hox 17901612019 Countersunk screws 6 mm 120 mm Star DIN 18360 Steel zinc plated 200 pc(s)
Brand: SWG Hox
SKU: 3595340

A silver Phillips-head screw with a flat countersunk head and threaded shaft, shown horizontally on a white background.

Close-up of a metal Tamper-Resistant Torx screw head with a six-point star recess and stamped markings around the edge.

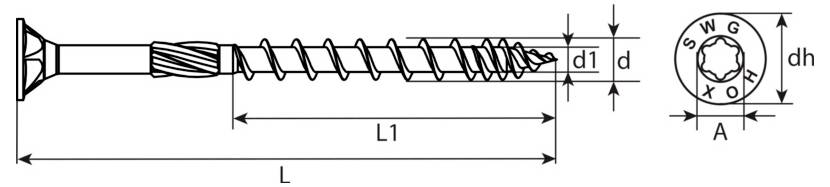

Technical drawing of a screw with labeled dimensions: overall length L, threaded length L1, shank diameters d and d1, head diameter A, and drive size dh.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901612019 wood screw 6x120 mm HX30 partial thread

The nominal diameter of 6 mm ensures high shear strength for wood joints and contributes to structural stability. The nominal length of 120 mm provides for a deep anchoring depth and therefore a secure attachment in thick wood. The internal HX30 drive reduces slipping during mechanical assembly and ensures even torque transmission. The delivery takes place in a 200-piece package, in order to facilitate recurring carpentry work and to minimize interruptions during handling.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 6 mm

(Ø): 6 mm

Length: 120 mm

Head shape: Countersunk

Dim: (Ø x L) 6 mm x 120 mm

DIN standard: DIN 18360

Content: 200 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595340 SWG Hox 17901612019 Countersunk screws 6 mm 120 mm Star DIN 18360 Steel zinc plated 200 pc(s)

User & Safety Instructions

User & Safety Instructions 3595340 SWG Hox 17901612019 Countersunk screws 6 mm 120 mm Star DIN 18360 Steel zinc plated 200 pc(s)

Information

Test Summary Report 3595340 SWG Hox 17901612019 Countersunk screws 6 mm 120 mm Star DIN 18360 Steel zinc plated 200 pc(s)

Conformity certificate

Conformity certificate 3595340 SWG Hox 17901612019 Countersunk screws 6 mm 120 mm Star DIN 18360 Steel zinc plated 200 pc(s)

Description

This wood screw is used to attach wooden elements by converting the torque into an axial clamping force. It is driven by an HX30 internal drive that works together with a suitable bit to efficiently transfer torque when turning in. When screwed in, the thread shaft pulls the wooden parts together and resists the extraction forces. This makes it suitable for carpentry and construction connections where a certain penetration depth is required. The screws are supplied in large quantities and are intended for repeated assembly cycles with cordless screwdrivers. This simplifies the work on larger projects and reduces the need for frequent after-sales.
