Name: SWG Hox 17901615016 Countersunk screws 6 mm 150 mm Star DIN 18360 Steel zinc plated 10 pc(s)
Brand: SWG Hox
SKU: 3595349

A metal screw with a flat head and coarse threaded shaft, shown horizontally on a white background.

Close-up of a metal screw head with a star-shaped Torx drive and stamped markings around the rim.

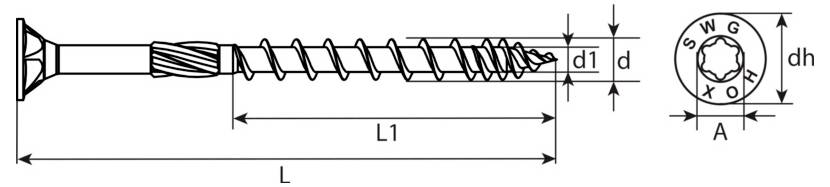

Technical drawing of a screw with labeled dimensions: L, L1, d1, d, dh, and head diameter A.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

SWG Hox 17901615016 wood screw 6x150mm HX30 countersunk head

The nominal diameter of 6 mm provides for a firm grip in wood applications and improves tensile strength during operation. The nominal length of 150 mm allows deep penetration into solid wood cross sections for structural fixing. The HX30 internal drive reduces slipping during motorized assembly and contributes to uniform torque transmission. The delivery takes place as 10 pack for the efficient use in medium-sized assembly or construction site work without frequent refilling.

Technical specifications

Product type: Countersunk screws

Drive: Star

Material: Steel

Thread size: 6 mm

(Ø): 6 mm

Length: 150 mm

Head shape: Countersunk

Dim: (Ø x L) 6 mm x 150 mm

DIN standard: DIN 18360

Content: 10 pc(s)

Material properties: zinc plated

Documents & Downloads

Datasheet

Datasheet 3595349 SWG Hox 17901615016 Countersunk screws 6 mm 150 mm Star DIN 18360 Steel zinc plated 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3595349 SWG Hox 17901615016 Countersunk screws 6 mm 150 mm Star DIN 18360 Steel zinc plated 10 pc(s)

Information

Test Summary Report 3595349 SWG Hox 17901615016 Countersunk screws 6 mm 150 mm Star DIN 18360 Steel zinc plated 10 pc(s)

Conformity certificate

Conformity certificate 3595349 SWG Hox 17901615016 Countersunk screws 6 mm 150 mm Star DIN 18360 Steel zinc plated 10 pc(s)

Description

This wood screw is used to fasten wooden components by converting the torque into an axial fastening force. The internal HX30 drive is compatible with compatible screwdrivers to minimize overturning. Shaft and thread pull the adjacent wooden surfaces together when screwing in the screw. Assembly usually requires pilot holes or pilot holes to prevent the wood from splitting and to ensure precise alignment. When turned in, the countersunk head should be flush with the surface. The component is suitable for applications requiring long fasteners where deep support and permanent clamping are required. The packaging unit allows easy handling on the construction site.
