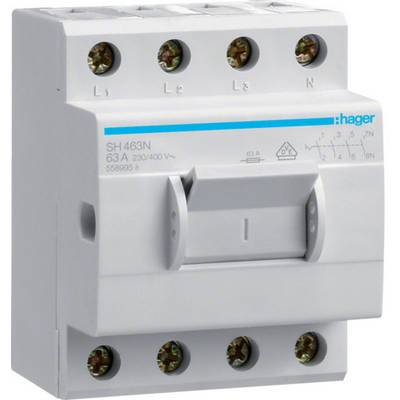

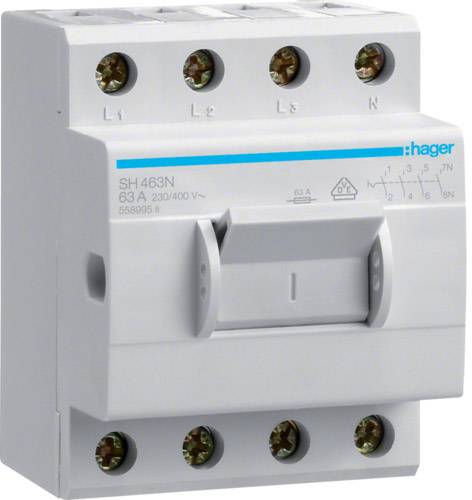

Switch module Grey 63 A 400 V Hager SH463N
EAN:
Part number:
Item no:
Product type
Switch module
Nominal voltage
400 V
Number of pins
4
Nominal current - rounded value
63 A
Type
Compact
Highlights & Details
Compact Switch 63 A 4 normally open contact
- Nominal current 63 A
- Number of modules 3.5
- Rated operating voltage Ue 400V
Technical specifications
- Type
Compact
- Product type
Switch module
- Nominal voltage
400 V
- Factory colour
Grey
- Number of pins
4
- Dim
(W x H) 61.25 mm x 77 mm
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Width
61.25 mm
- Height
77 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845659 Switch module Grey 63 A 400 V Hager SH463N
Description
Off switch 63A in the compact housing according to DIN VDE 0632 with VDE, accidental contact protection according to DIN VDE 0106/100.
This text is machine translated.
This text is machine translated.
Features
- Rated operating voltage Ue 400V
- Mains frequency: 50/60 Hz.
- Pola number 4P
- Connection type screw-in type
- Connection cross-section at flexible conductor 16 mm²
- Connection cross-section for rigid conductor 25 mm²
- Total power loss at nominal power 7.8 W
- Power loss per pin 2.6 W
