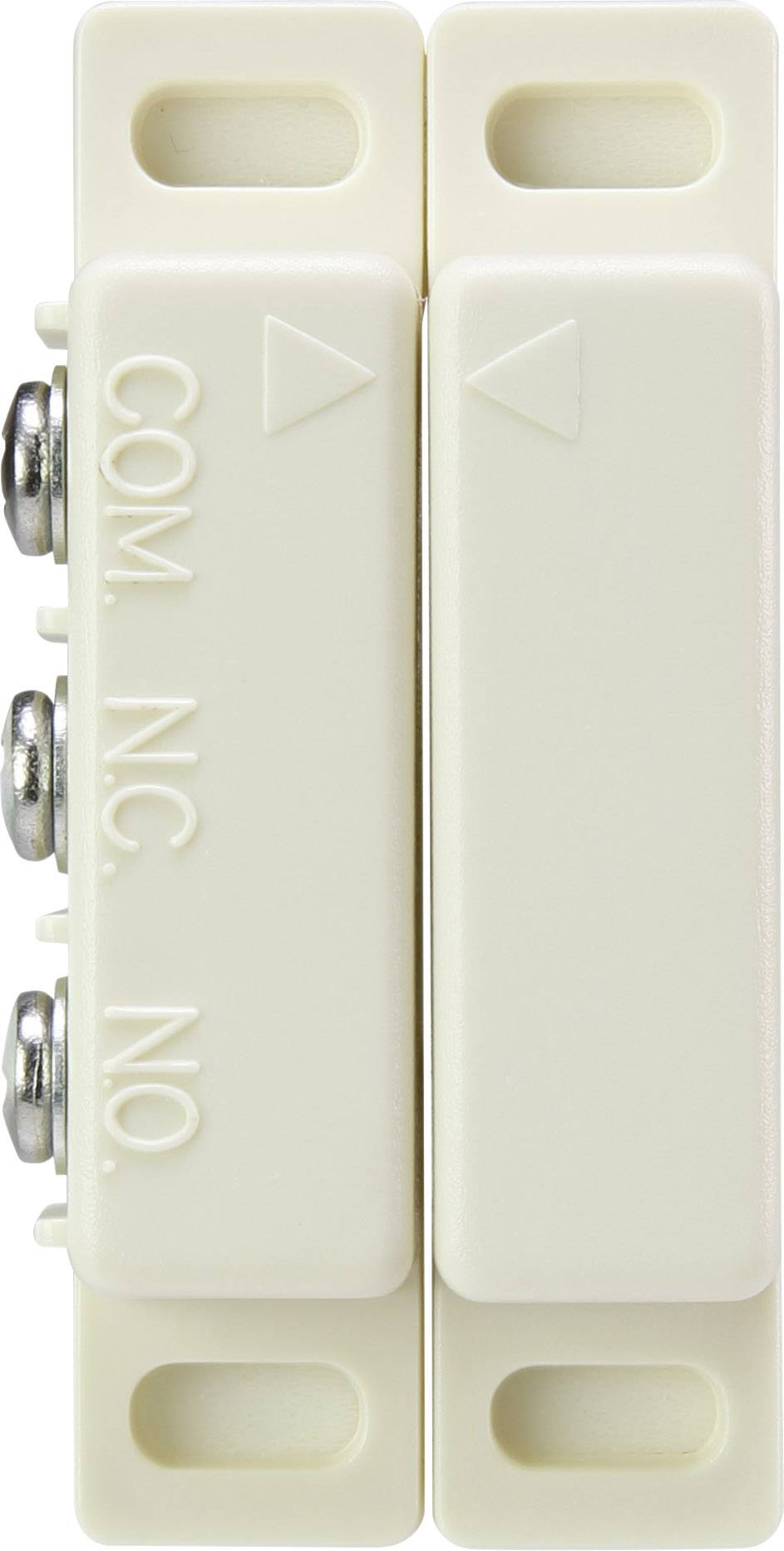

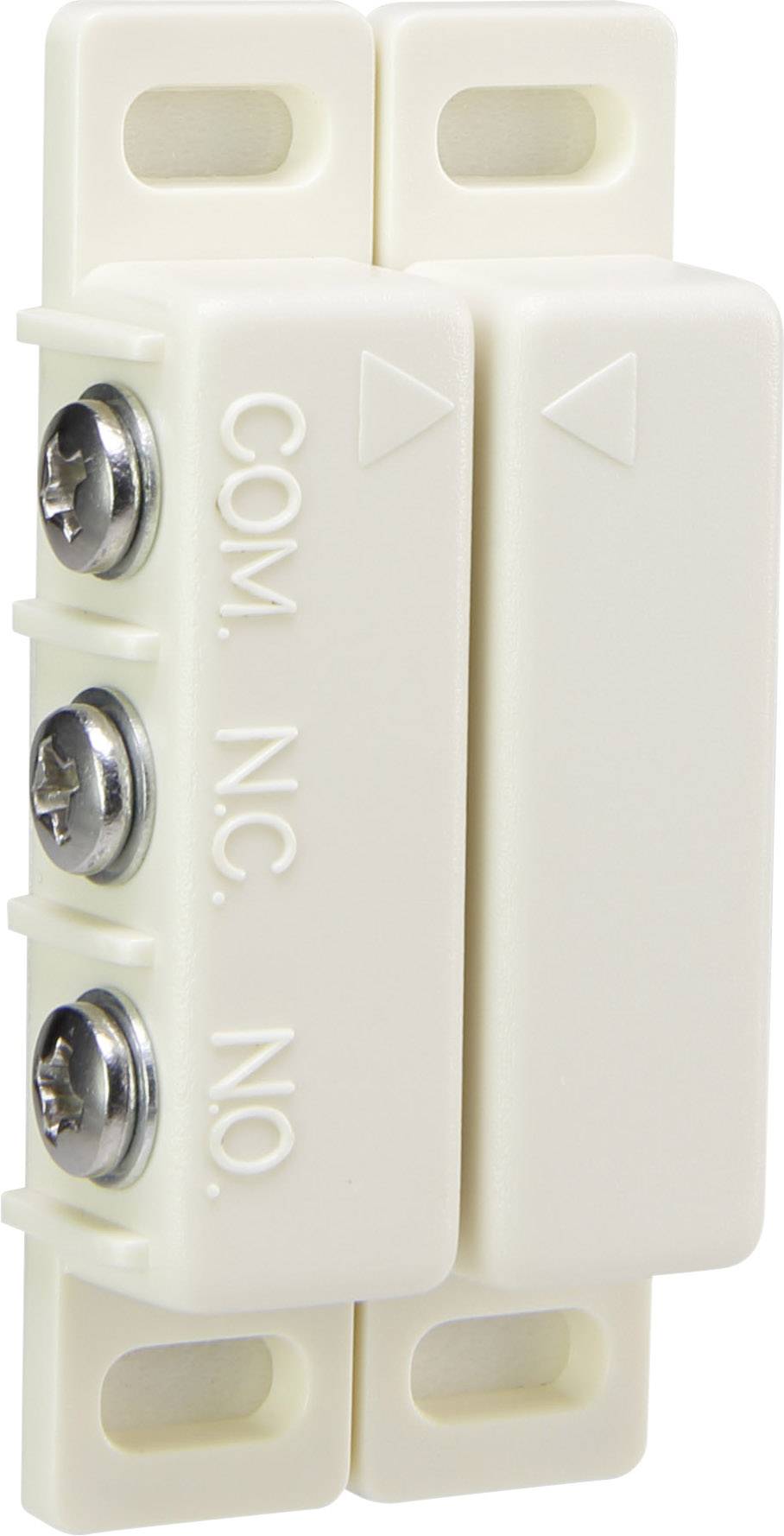

Sygonix 18734W1 NO/NC Magnetic contact
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
3
5% = € 0.34
€ 5.95
5
7% = € 0.47
€ 5.82
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 6.29 / piece)
€ 10.08
-38 %
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
Magnetic contact changeover switch
- Compact design
- Reed contact with "NO" and "NC" Circuit
- Long life
Technical specifications
- Contact load-carrying capacity: 3 W
- Max. Switching current 250 mA
- Max. Switching voltage 170 V/DC
- Contact resistance: 200 m ohm
- Material: ABS plastic
- Temperature range: -20°C to +70°C
- Product type
Magnetic contact
- Width
15 mm
- Height
55 mm
- Depth
13 mm
- Weight
17 g
- Dim
(W x H x D) 15 x 55 x 13 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1460574 Sygonix 18734W1 NO/NC Magnetic contact
User & Safety Instructions
User & Safety Instructions 1460574 Sygonix 18734W1 NO/NC Magnetic contact
Warranty Terms
Warranty Terms 1460574 Sygonix 18734W1 NO/NC Magnetic contact
Description
This text is machine translated.
This convenient magnetic contact with NO or NC-Circuit is ideally suited for a wide range of applications. You can select whether the circuit of the magnet contact in idle state, if both units together, closed (= "NC" / "Normally Closed") or open (="NO"/"normally open"). Connected to the "NO", the circuit closes and the signal is switched, if the distance between the two contacts enlarged. When "NC", the circuit closes and the signal is switched, if the distance between the two contacts is reduced. So, with this magnetic contact a wide range of different purposes and circuits can be built.
This convenient magnetic contact with NO or NC-Circuit is ideally suited for a wide range of applications. You can select whether the circuit of the magnet contact in idle state, if both units together, closed (= "NC" / "Normally Closed") or open (="NO"/"normally open"). Connected to the "NO", the circuit closes and the signal is switched, if the distance between the two contacts enlarged. When "NC", the circuit closes and the signal is switched, if the distance between the two contacts is reduced. So, with this magnetic contact a wide range of different purposes and circuits can be built.
Scope of delivery
- NO/NC magnetic contact.
