Sygonix Flexible Monocrystalline solar panel 220 W
EAN:
Part number:
Item no:
Highlights & Details
220W Flexible solar panel
- Simple and easy to install
- Flexible design, suitable for irregular surface installation
- Well-suited for balcony solar systems

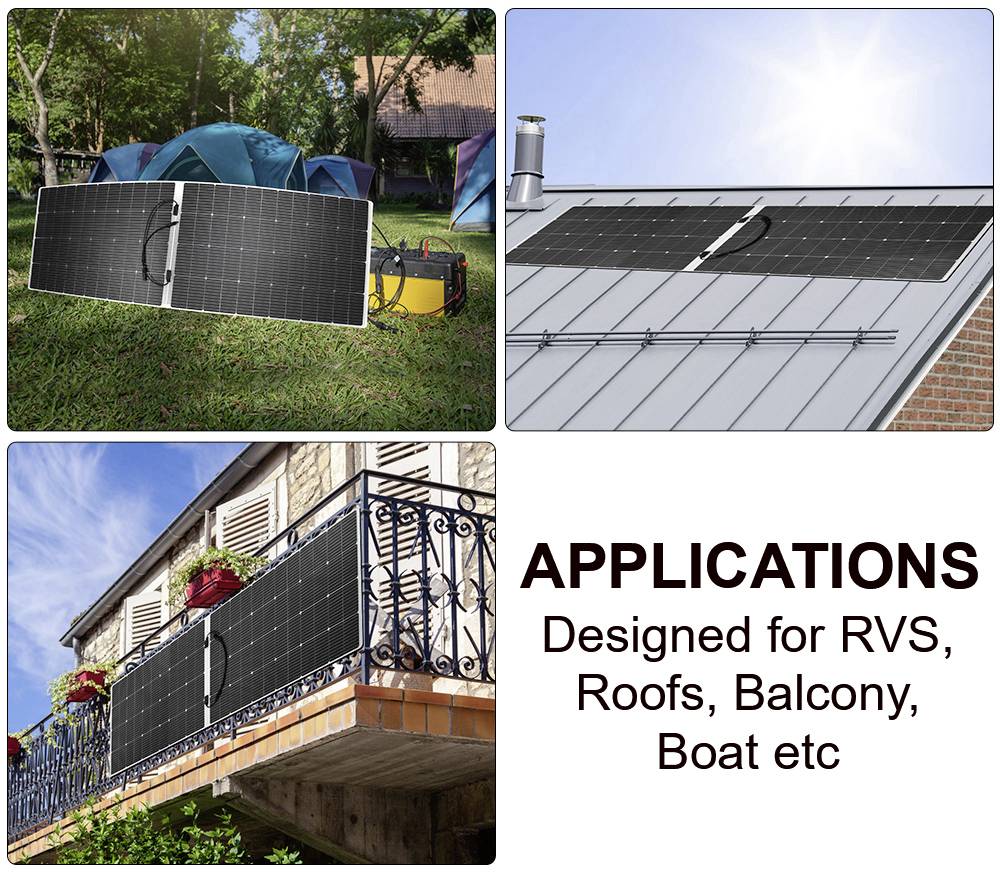

- Versatile applications for mobile homes, boats, yachts, roofs, trailers, Trucks, etc.
- Junction box IP68
- This text is machine translated.
Technical specifications
- Maximum power (Pmax) : 220 W.
- Open circuit voltage (VOC): 39.1 V.
- Short circuit current (ISC) : 6.9 A.
- Maximum power voltage (VMP) : 33.9 V.
- Maximum power current (Imp) : 6.5 A.
- Maximum system voltage : 1500 V.
- Maximum series protection : 25 A.
- Output cable : 4 mm²
- Cable length (including connector) : 500 mm
- Connection socket IP 68
- Number of solar modules : 60
- Product type
Monocrystalline solar panel
220 W
- Dim
(L x W) 990 mm x 1154 mm
- Efficiency
23 %
- Connector
Solar connector
- Weight
3.2 kg
- Cable length
50 cm
- Short-circuit current
6.9 A
- Open circuit voltage (OCV)
39.1 V
- Nominal current
6.5 A
- Width
1154 mm
- Length
990 mm
- Depth
2.2 mm
- Voltage (max.)
33.9 V
- Type
Flexible solar panel
Solar cell type : monocrystalline (PERC)
- No. of cells
60
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3399799 Sygonix Flexible Monocrystalline solar panel 220 W
Warranty Terms
Warranty Terms 3399799 Sygonix Flexible Monocrystalline solar panel 220 W
Description
Features
- High efficiency : Built with monocrystalline solar cells, the conversion rate is up to 23%
- Solar cell type : monocrystalline (PERC)
Scope of delivery
- Flexible solar module x 1
- Manual x 1
System requirements
- Maximum system voltage 1500 VDC
