Buy Sygonix Mobile charging station Type 2 Mode 2 10 A 2.3 kW

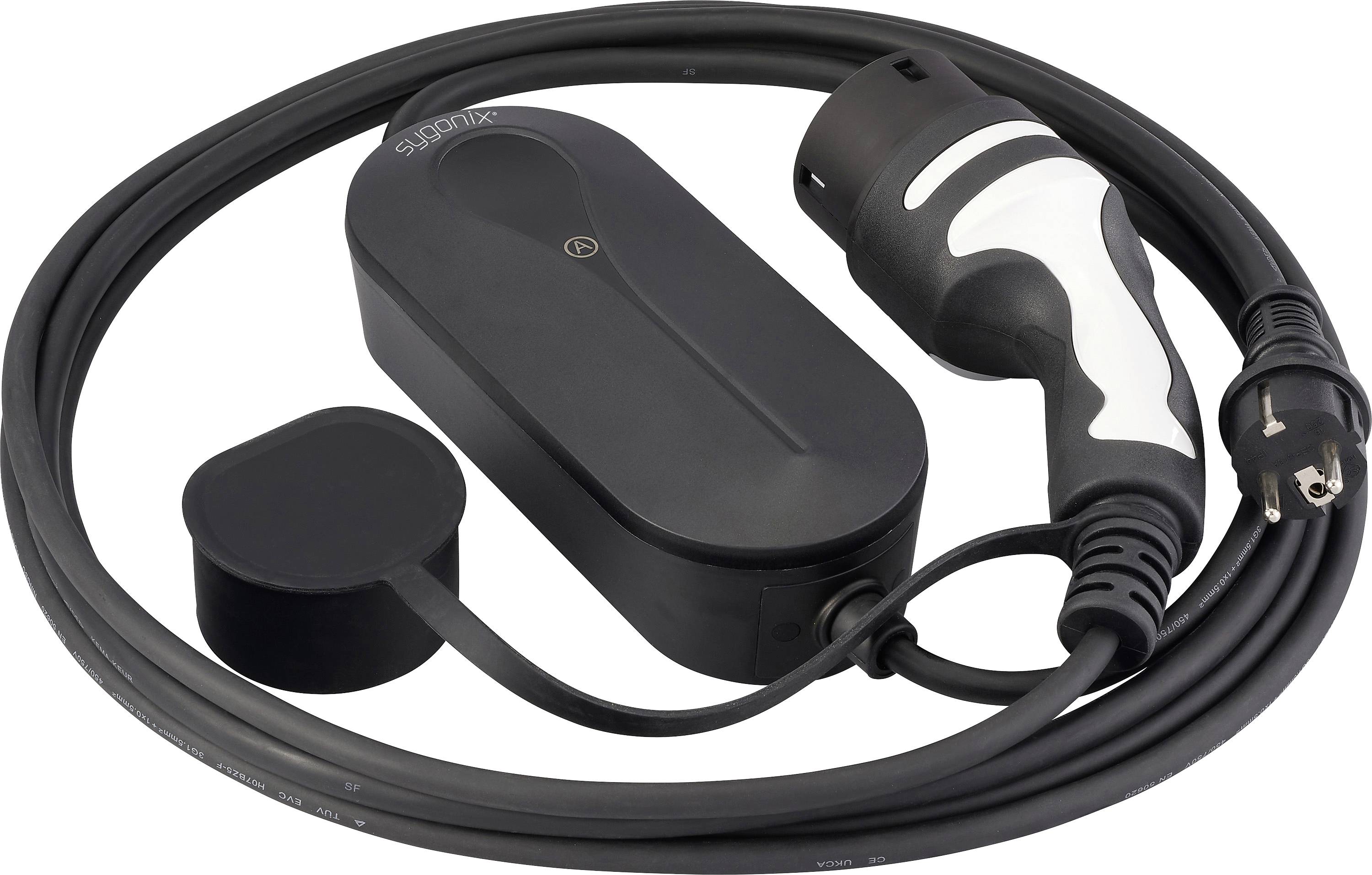

Portable EV charging cable with control box, plug, and protective cap coiled together on a white background.

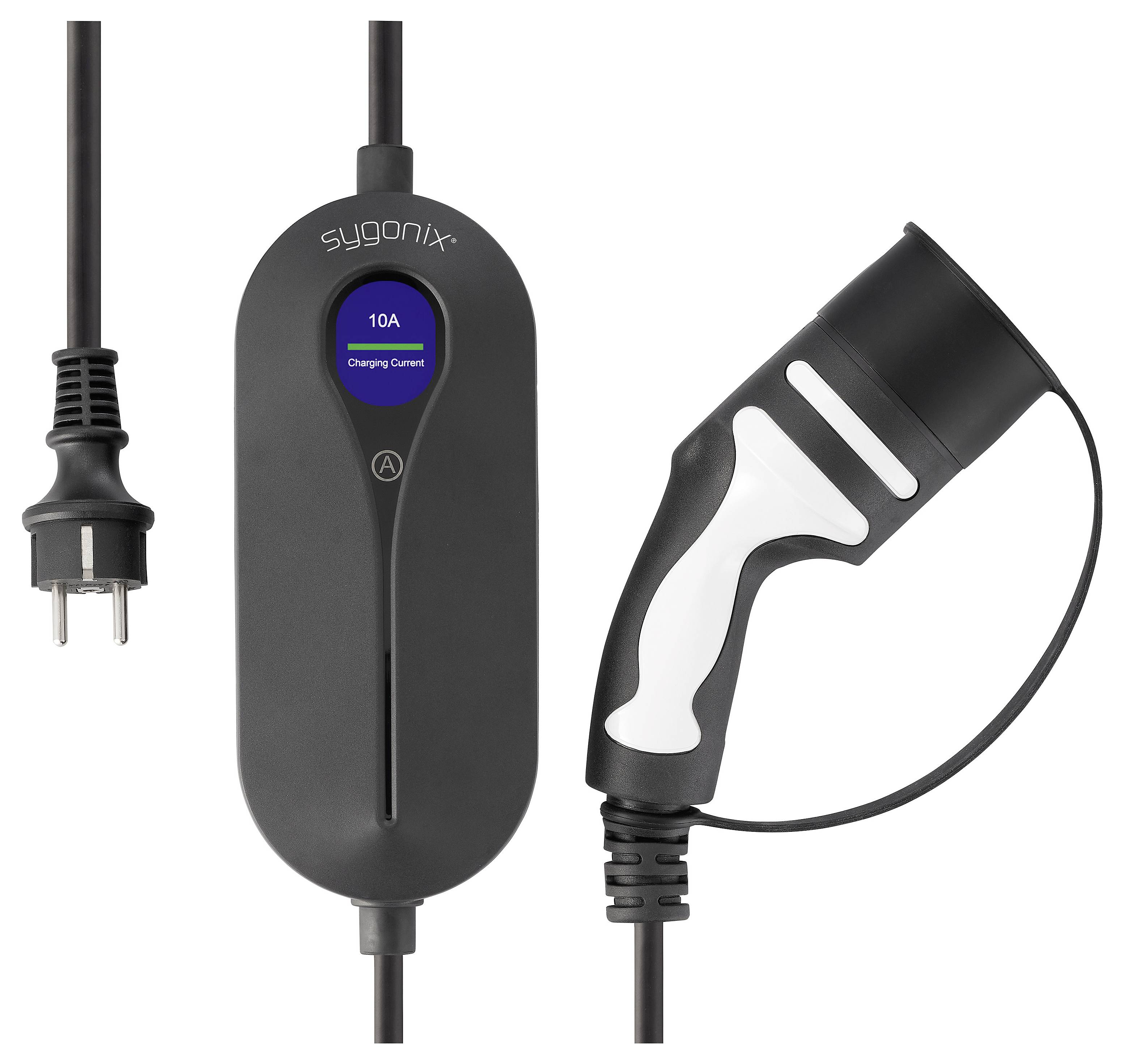

'Electric vehicle charging cable with plug and handle, labeled sygonix, showing 10A charging current on digital display.'

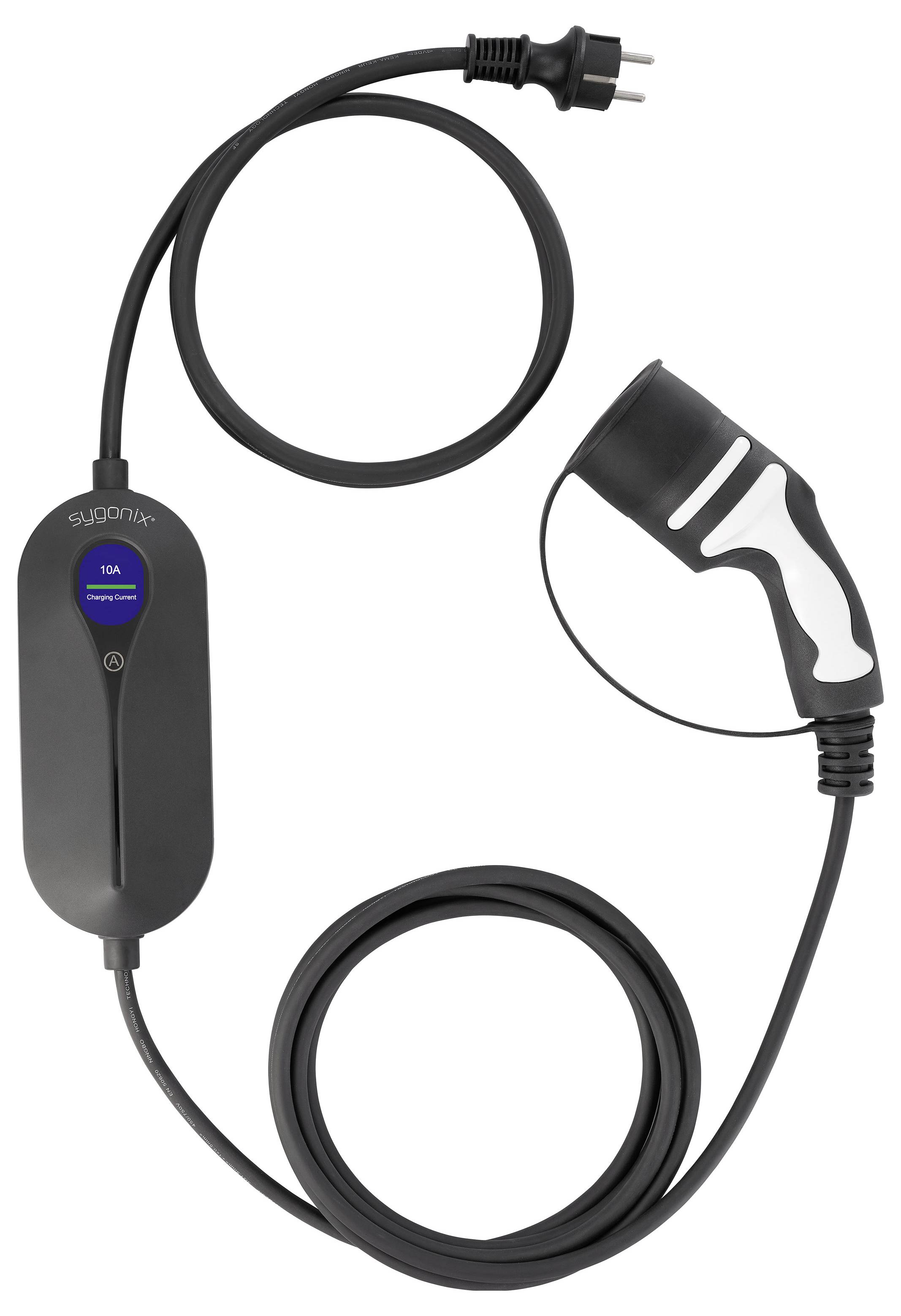

An electric vehicle charging cable featuring a plug on one end and a handle on the other, with a compact control unit in the middle.

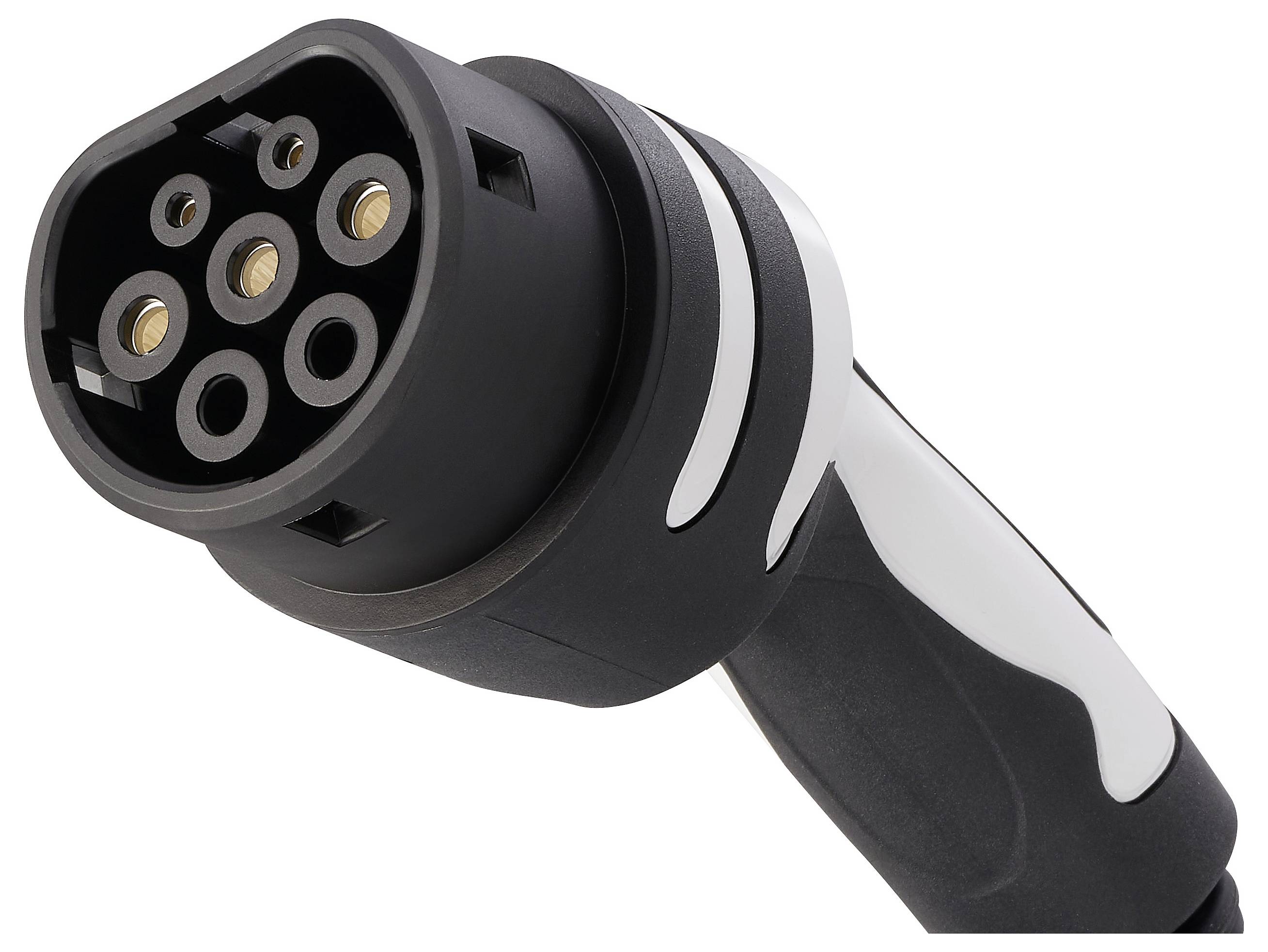

'Close-up of an electric vehicle charging plug with multiple round connectors, highlighting the plug's design and structure.'

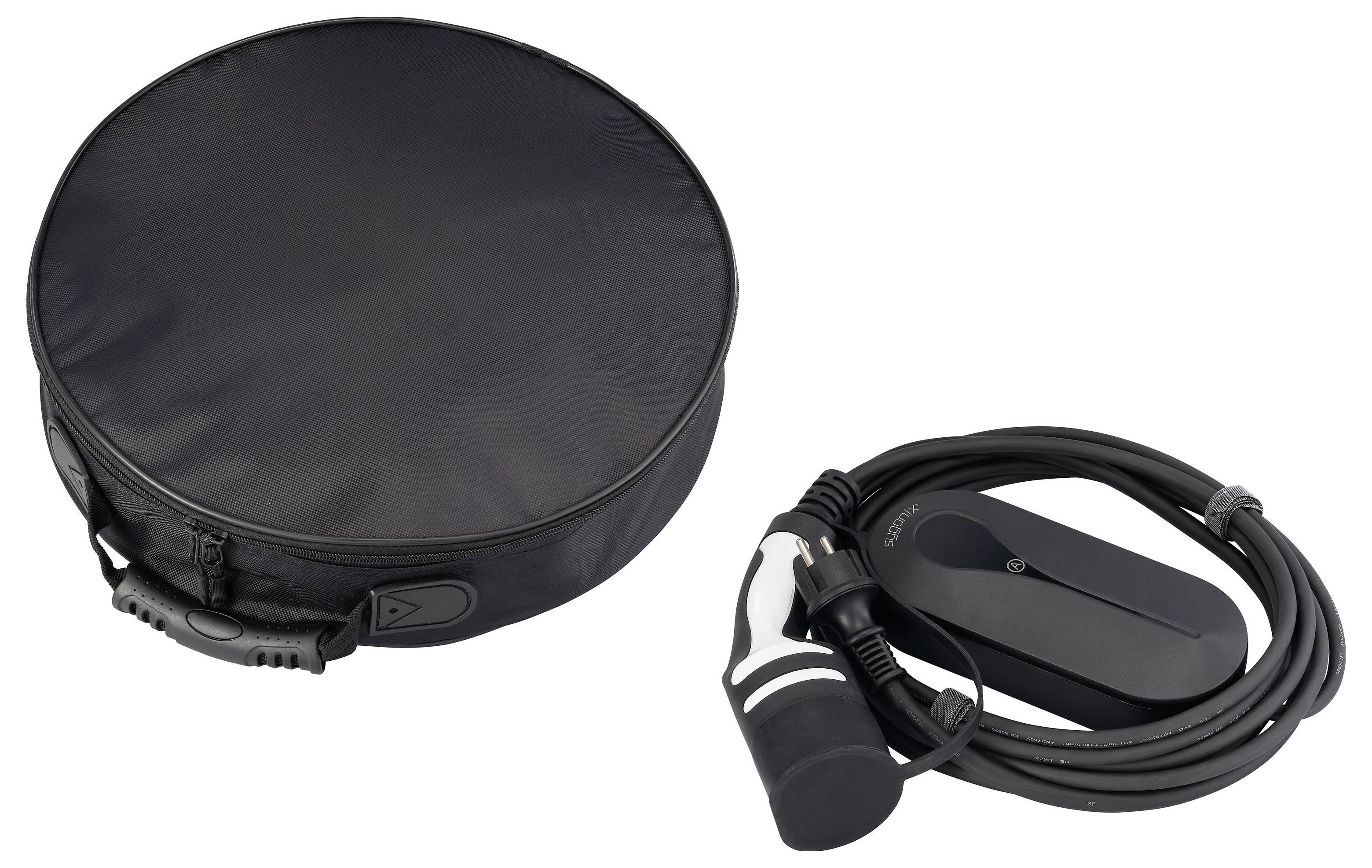

An electric vehicle charging cable and portable case are shown. The cable features a standard plug and connector, ideal for on-the-go charging.

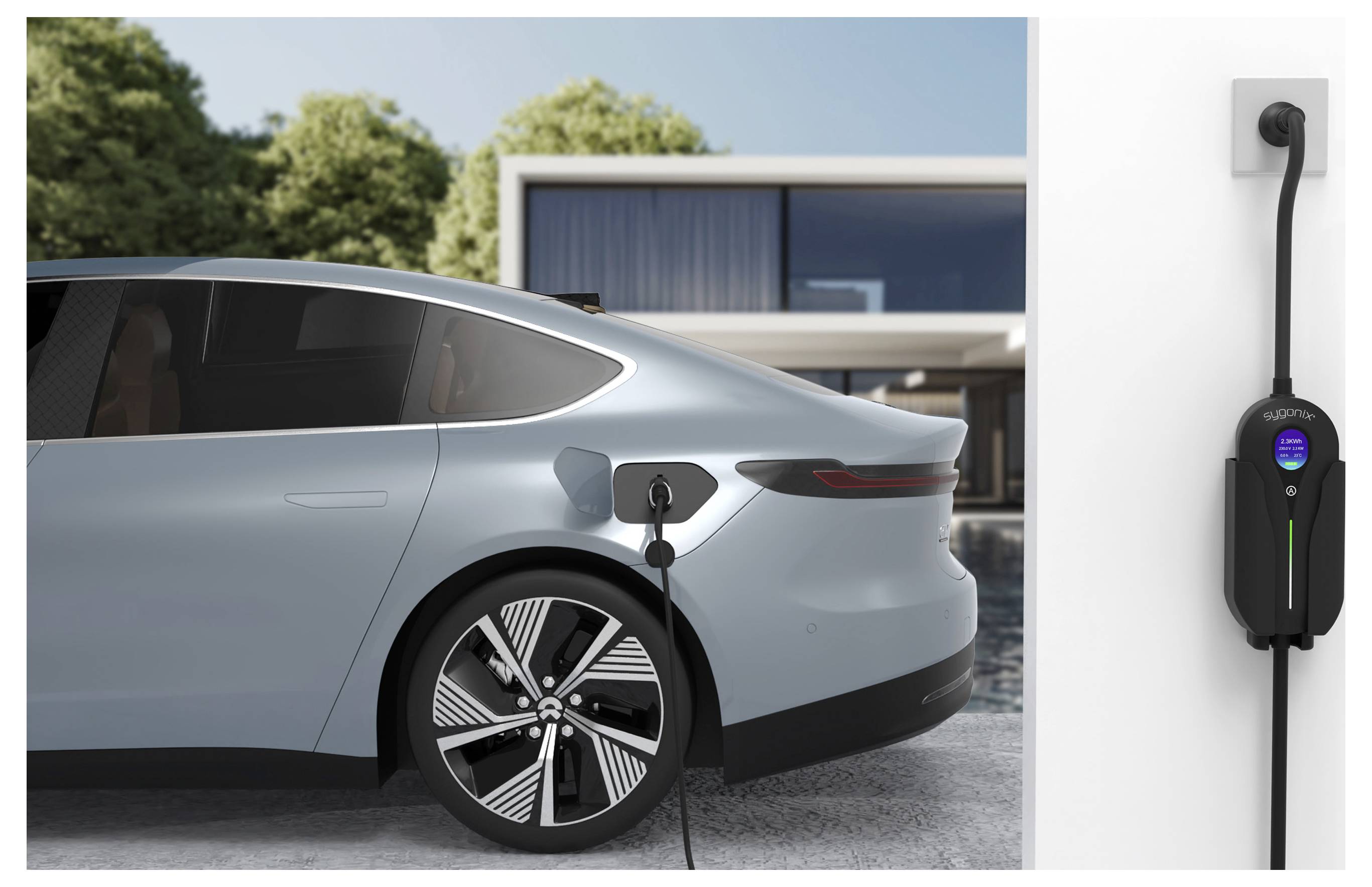

Electric car plugged into a wall charger outside a modern house, indicating residential electric vehicle charging.

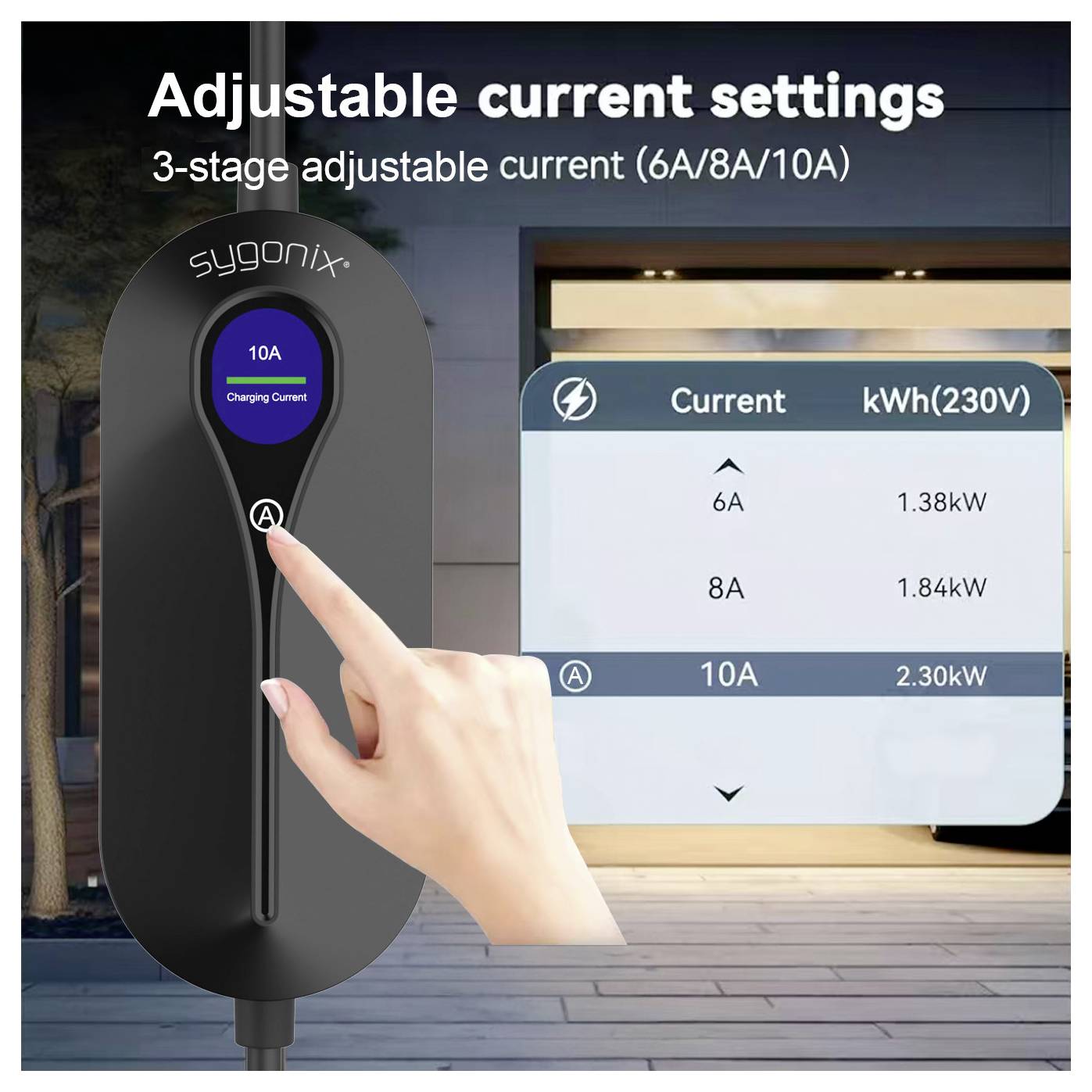

'Adjustable current settings' device with 3-stage current option (6A/8A/10A). Display shows current and corresponding kWh values.

1/7

Our service for you

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Sygonix EV charging station type 2 10 A 2.3 kW

Charges electric vehicles via standard household sockets with IEC 62196 Type 2 connector
EV charger is compliant with EN 62752 standard
Maximum charging power of 2.3 kW (1 phase)
LCD display shows charging time, charging current, voltage, operating temperature, and other key information

Technical specifications

Product type: Mobile charging station

Charger connectors: Type 2

Charging mode: Mode 2

Charging current: 10 A

Charging capacity: 2.3 kW

No. of phases: 1-phase

Nominal voltage: 230 V AC

Cable length: 5 m

: IP66

Certification marks: EN 62752:2016
IEC 62196-1
IEC 62196-2

Factory colour: Black

Length: 254 mm

Width: 93 mm

Depth: 60 mm

Weight: 1.8 kg

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3594090 Sygonix Mobile charging station Type 2 Mode 2 10 A 2.3 kW

Warranty Terms

Warranty Terms 3594090 Sygonix Mobile charging station Type 2 Mode 2 10 A 2.3 kW

Description

The EV charger enables the safe charging of electric vehicles via standard domestic sockets by means of a type 2 connector (IEC 62196). With a charging power of up to 2.3 kW and compliance with the EN 62752 standard, it offers a reliable solution for daily use. The built-in LCD continuously displays the relevant battery values such as charging time, current and voltage.

Adjustable charging current
The charging current can be set flexibly to 6 A, 8 A or 10 A using a touch setting button. This allows controlled energy consumption, which can be optimally tuned to the respective power source.

Comprehensive security systems
The device is equipped with numerous protective functions, including over and under voltage protection as well as over temperature and over current protection. An integrated RCD protection (type A 30 mA AC + 6 mA DC) provides additional security against fault currents during charging.

Robust design
The control box corresponds to protection class IP66 and is thus dust-proof and protected against strong water jets. The plug connections are also optimized for outdoor use (IP44 on the mains plug and up to IP65 on the type 2 plug when connected).

High mobility and range
With a total cable length of 5 m, the charger offers sufficient clearance between the current source and the vehicle. Thanks to the compact design and the bag included in the delivery it can be stowed away in the vehicle to save space and transported.

This text is machine translated.
