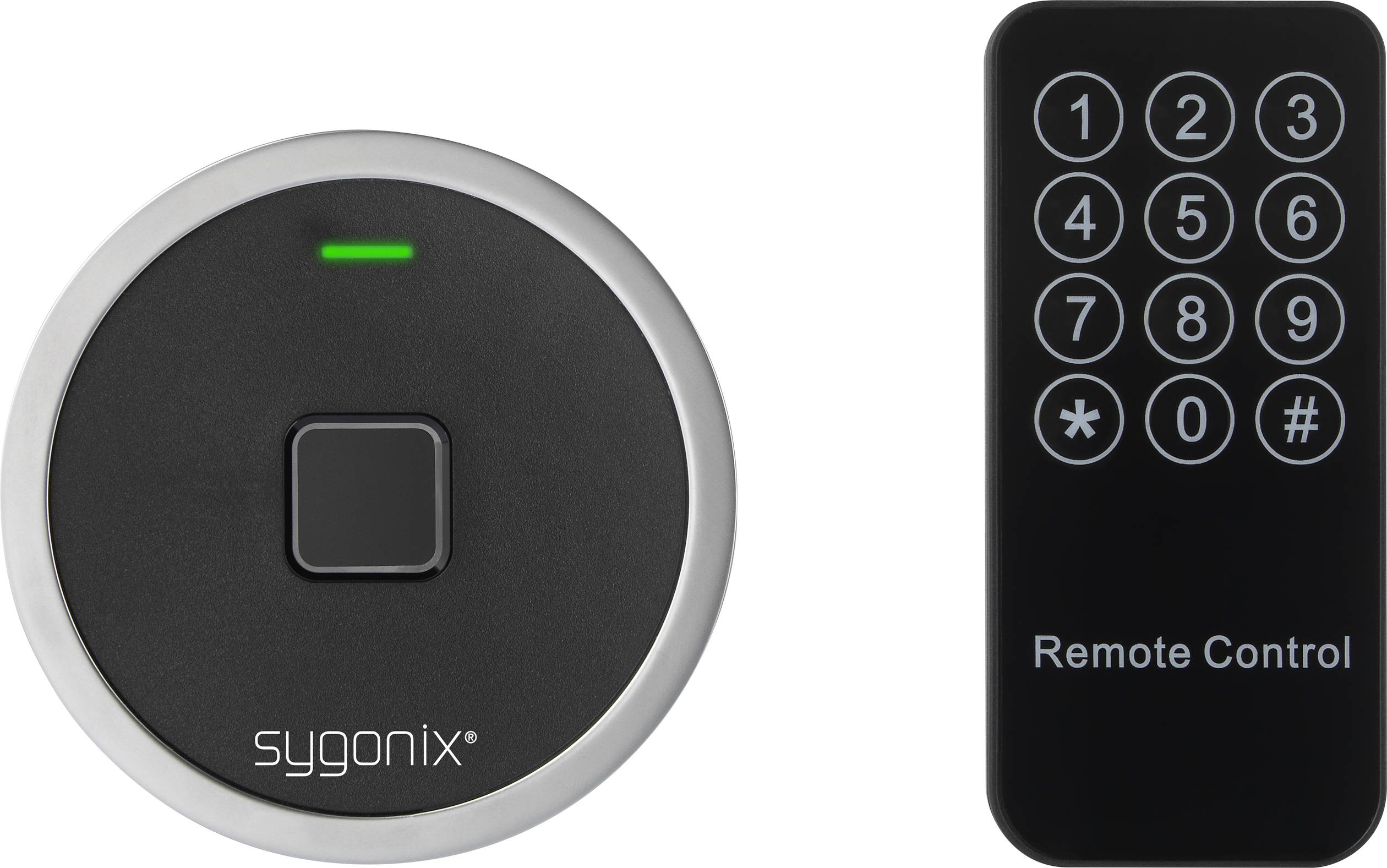

Electronic door opener and remote control. The remote control has buttons from 0 to 9, as well as * and # symbols.

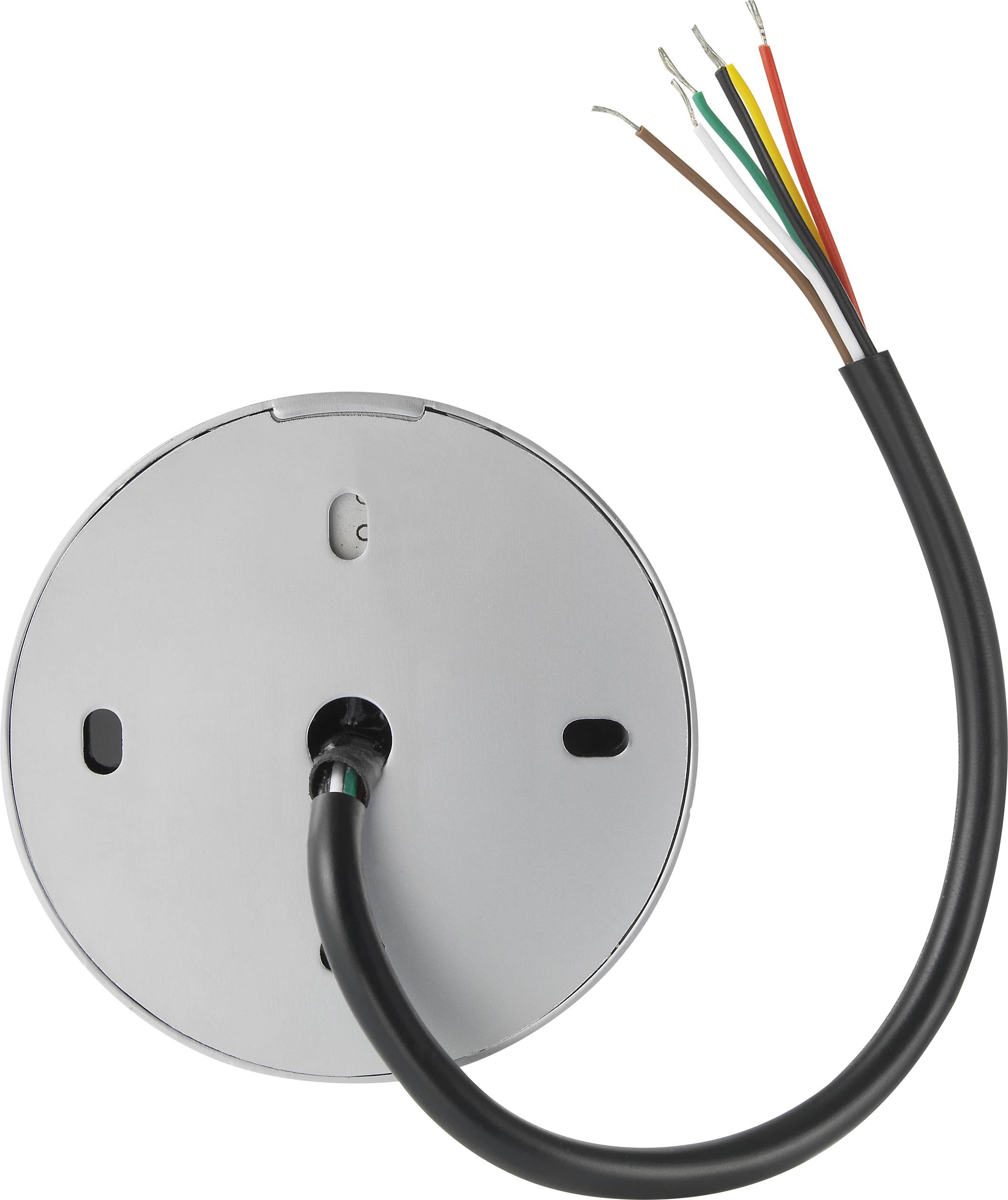

Round back of a ceiling mount with cable connection and several exposed wires in different colours.

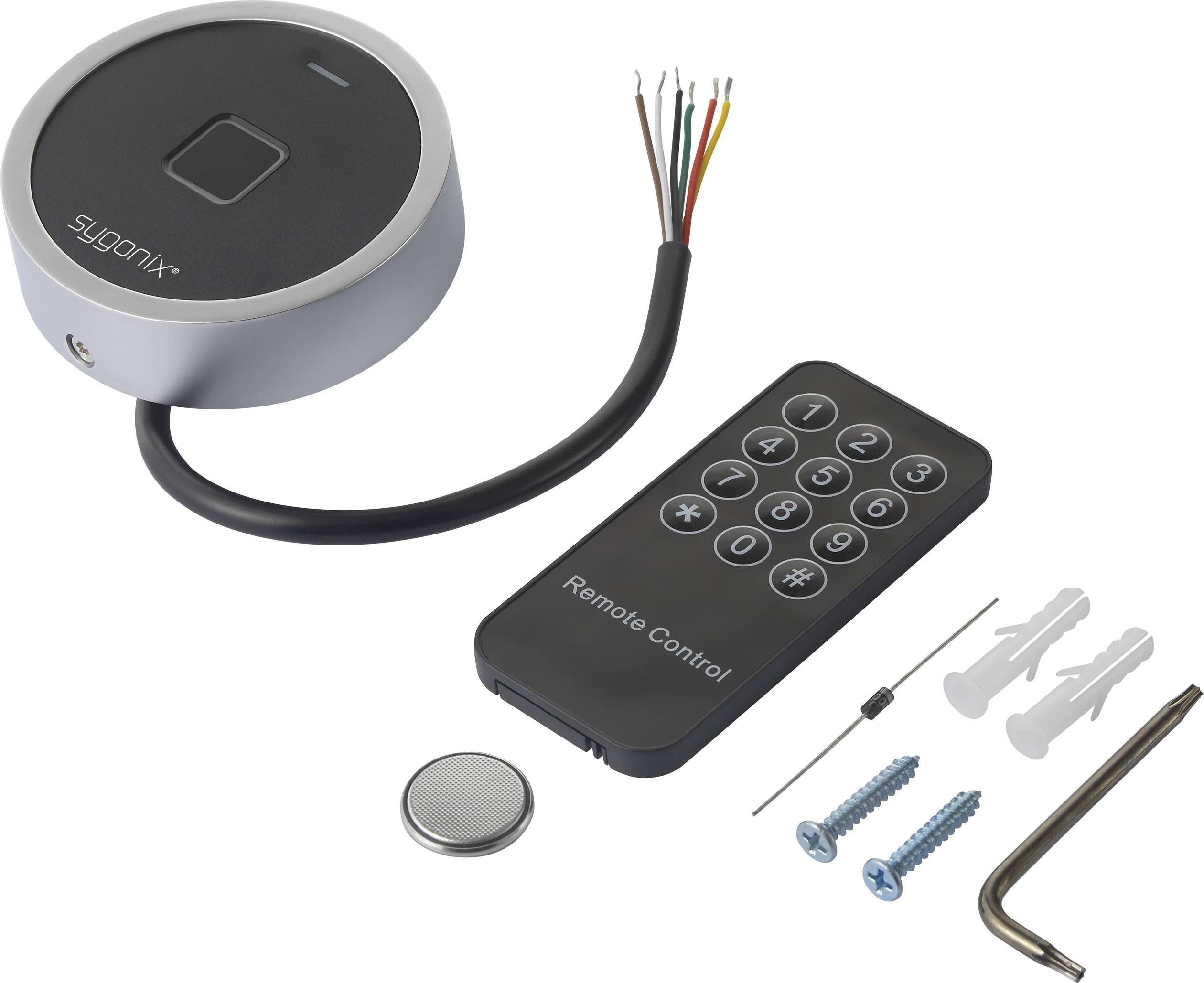

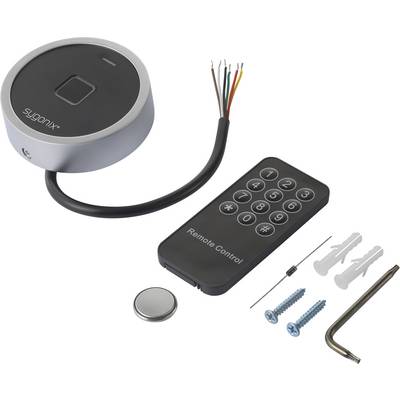

Electronic door lock accessory kit with round control unit, remote control, battery, screws, wall plugs, and Allen key.

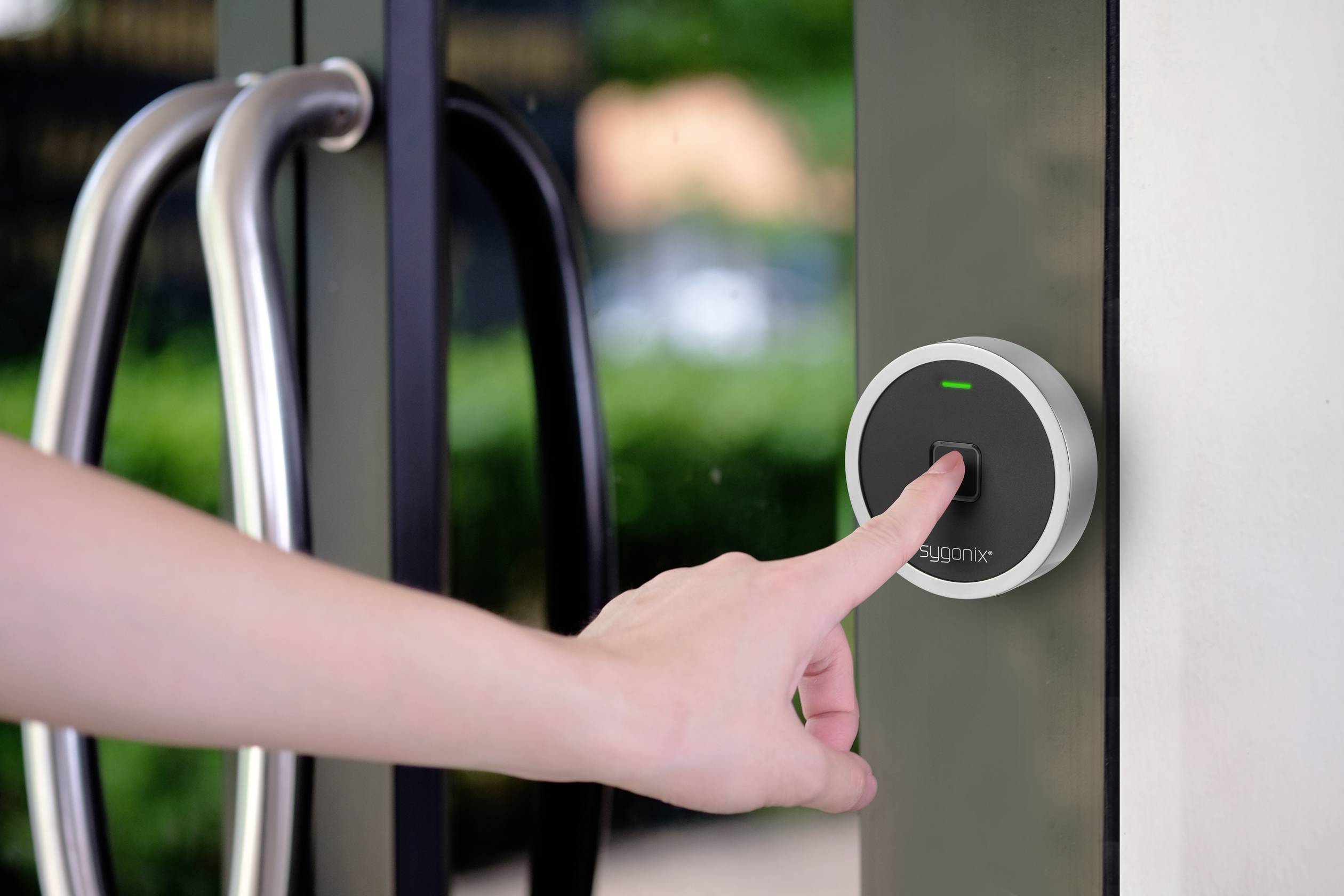

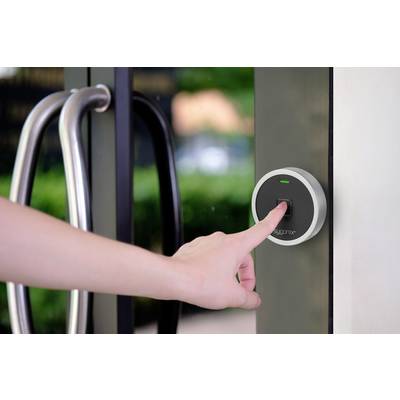

A hand is pressing a round, grey doorbell button next to a glass door with metal handles.

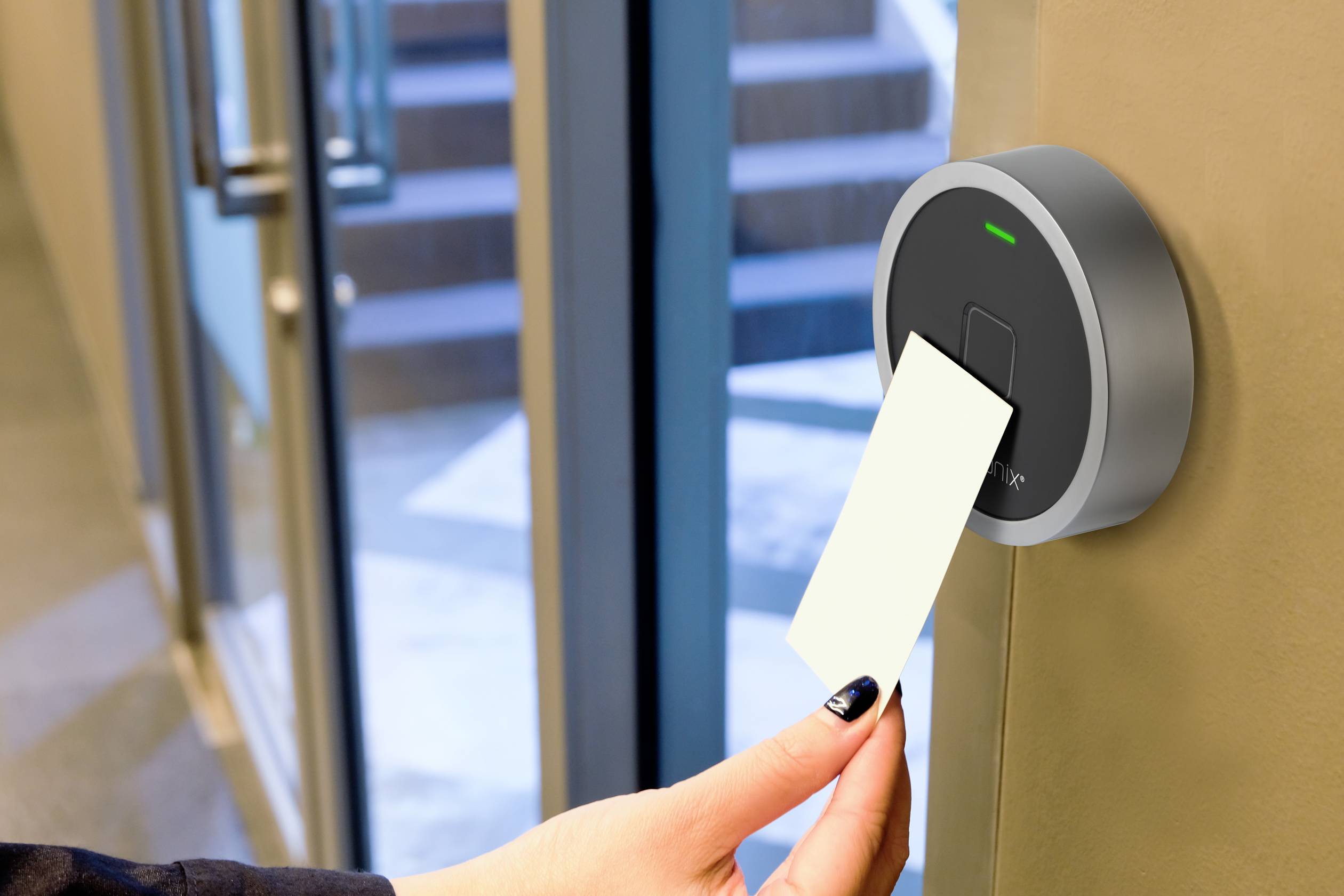

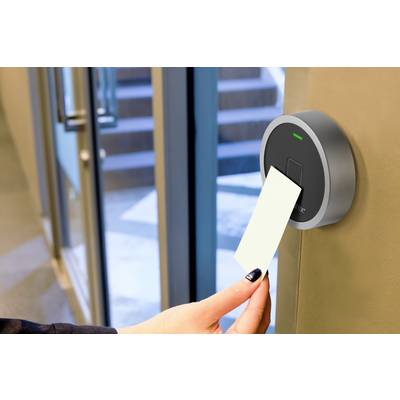

A hand holds an access card up to a modern card reader on a door to grant entry to a building.

1/6

Our service for you

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

Report legal concerns

Highlights & Details

Mini weatherproof fingerprint & RFID access control IP66

Modern and fashionable design with vandal-proof metal case
Weatherproof with IP66 rating
Can be accessed via fingerprint or RFID card

Technical specifications

Product type: Fingerprint/RFID access system

Operating voltage: 9 V DC
18 V DC

Mounting type: Surface-mount

Triggered by: Fingerprint
Transponder

No. of codes/combinations: 1000

LEDs: 2

Contact load capacity: Max. 2 A, 12/24 V/DC

: IP66

Weight: 170 g

Dim: (W x H x D) 73 x 73 x 20 mm

Width: 73 mm

Height: 73 mm

Depth: 20 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2299888 Sygonix SY-4599776 Fingerprint/RFID access system Surface-mount 9 V DC, 18 V DC IP66

Conformity certificate

Conformity certificate 2299888 Sygonix SY-4599776 Fingerprint/RFID access system Surface-mount 9 V DC, 18 V DC IP66

Warranty Terms

Warranty Terms 2299888 Sygonix SY-4599776 Fingerprint/RFID access system Surface-mount 9 V DC, 18 V DC IP66

Description

Access only for authorized persons!
Very small, very secure: With the Sygonix weather protection module with metal housing, the fingerprint and RFID access control system is always weather-proof. It allows 100 people via fingerprint, 890 users via RFID card as well as 10 visitors access to the building. A practical feature: The module is equipped with a vandalism alarm, which was intentional destruction and offers even more protection. An LED color display also shows the status of the control system and gives optical signals for granting or denying access. In addition to the weather protection module, the scope of delivery includes a remote control with battery, a diode, two screws, two dowels and a wrench for mounting.

This text is machine translated.
