Sygonix SY-5233252 In-line extractor 230 V AC 320 m³/h 150 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.87
€ 18.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details

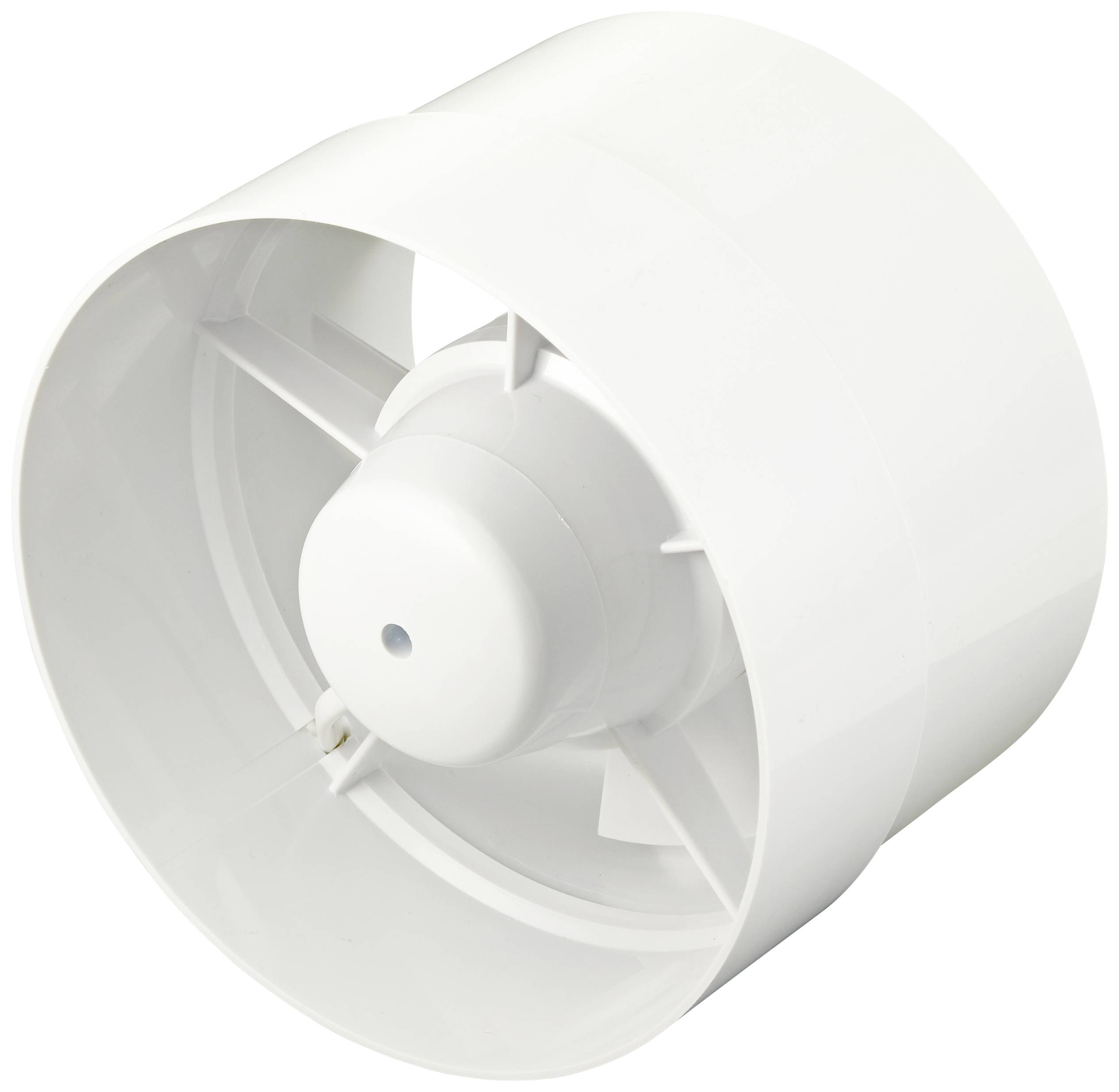

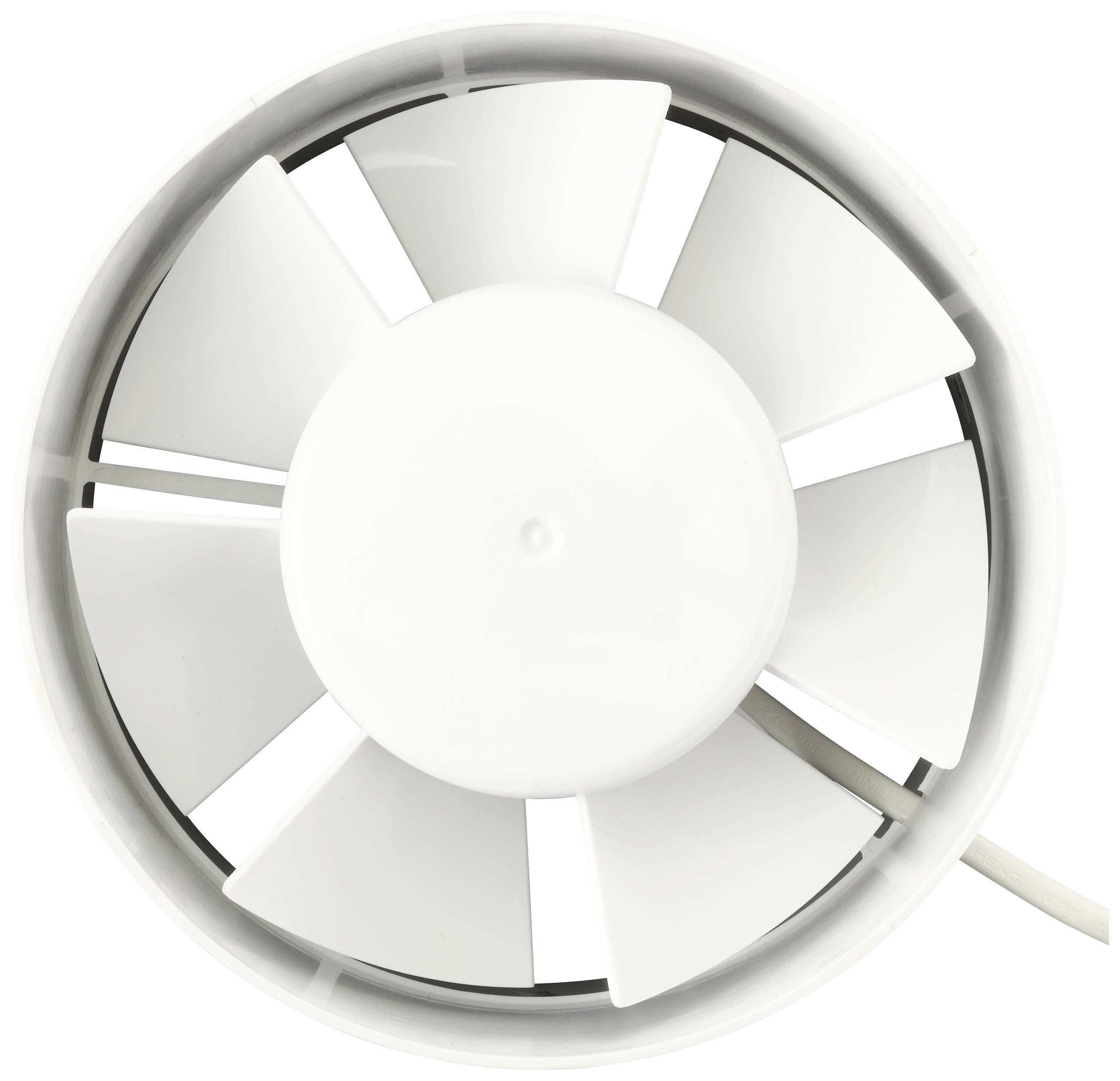

Sygonix in-line extractor 320 m³/h;150 mm
- Flexible installation as fan amplifierColumn pole motor with thermal cut-off
Technical specifications
- Weight 530 g

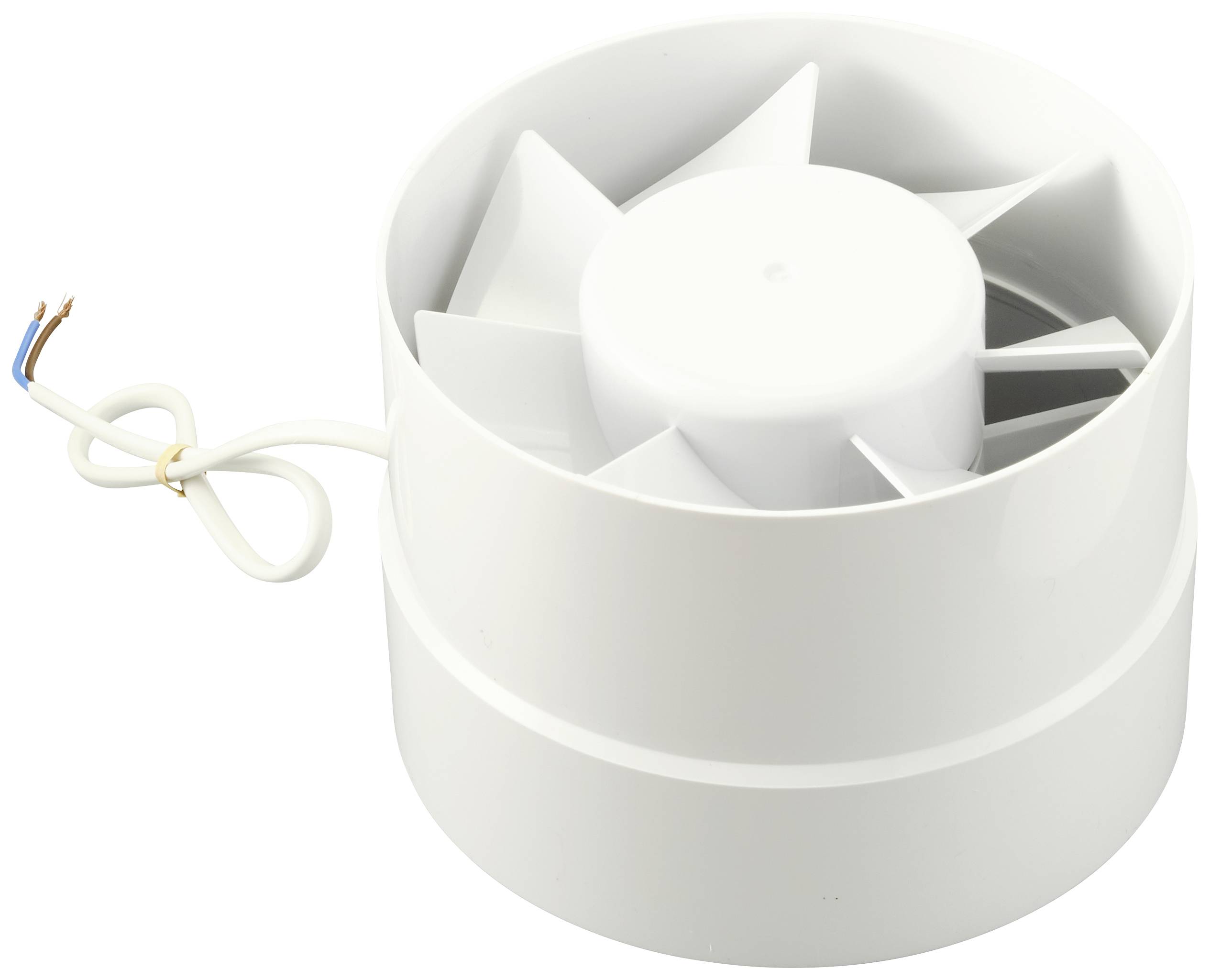

- Cable length 42 cm
- Max. Noise emission: 35 dB(A) (at a distance of 3M)
- Protection class: II
- Product type
In-line extractor
- Nominal voltage
230 V AC
18 W
- Air flow rate
320 m³/h
- Rotational speed
1850 U/min
- Suitable for pipe Ø
150 mm
IPX2 (DIN 40050)
- Factory colour
White
- Material
Plastic
- Dim
(Ø x D) 154 mm x 108 mm
- Depth
108 mm
- (Ø)
154 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2616626 Sygonix SY-5233252 In-line extractor 230 V AC 320 m³/h 150 mm
User & Safety Instructions
User & Safety Instructions 2616626 Sygonix SY-5233252 In-line extractor 230 V AC 320 m³/h 150 mm
Warranty Terms
Warranty Terms 2616626 Sygonix SY-5233252 In-line extractor 230 V AC 320 m³/h 150 mm
Description
Suitable for indoor channel mounting in suspended ceilings. Ball-bearing motor for reducing friction for a long operating time.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Insert fan
- User manual.
