Sygonix SY-6118228 Ceiling, Surface-mount HF motion detector 360 ° Relay White
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
5% = € 0.55
€ 10.37
5
7% = € 0.76
€ 10.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
Surface-mounted ceiling microwave motion sensor, 2000 W
- Switches up to 2000 W

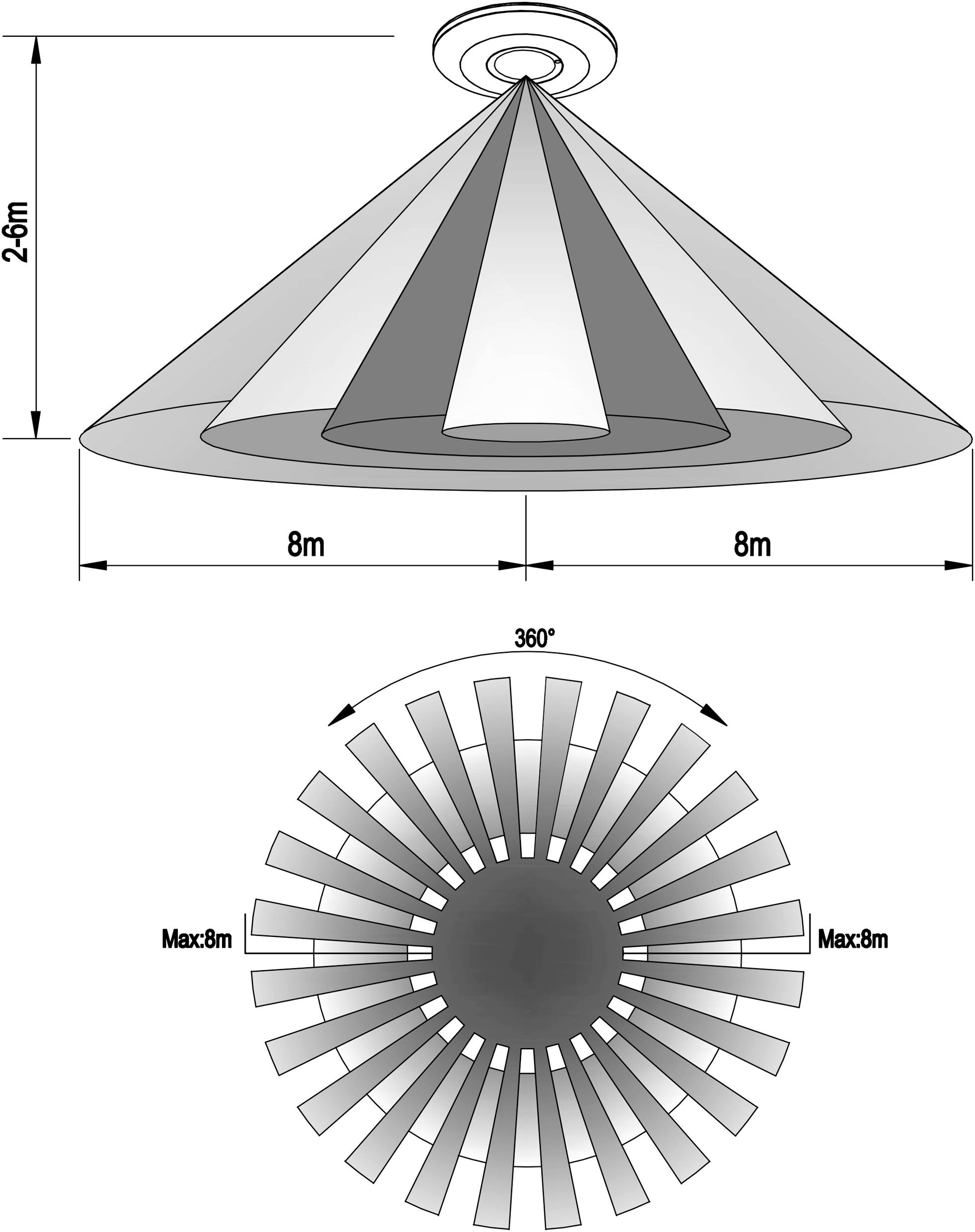

- Coverage angle: 360º
- Detection distance: max. 16 m
Technical specifications
- Product type
HF motion detector
- Detection angle
360°
16 m
- Used at
Indoors
- Mounting type
Ceiling
Surface-mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity (energy saving bulbs)
1000 W
- Switching capacity (light bulbs)
2000 W
- Switching capacity (LED)
1000 W
- Standby current consumption
0.9 W

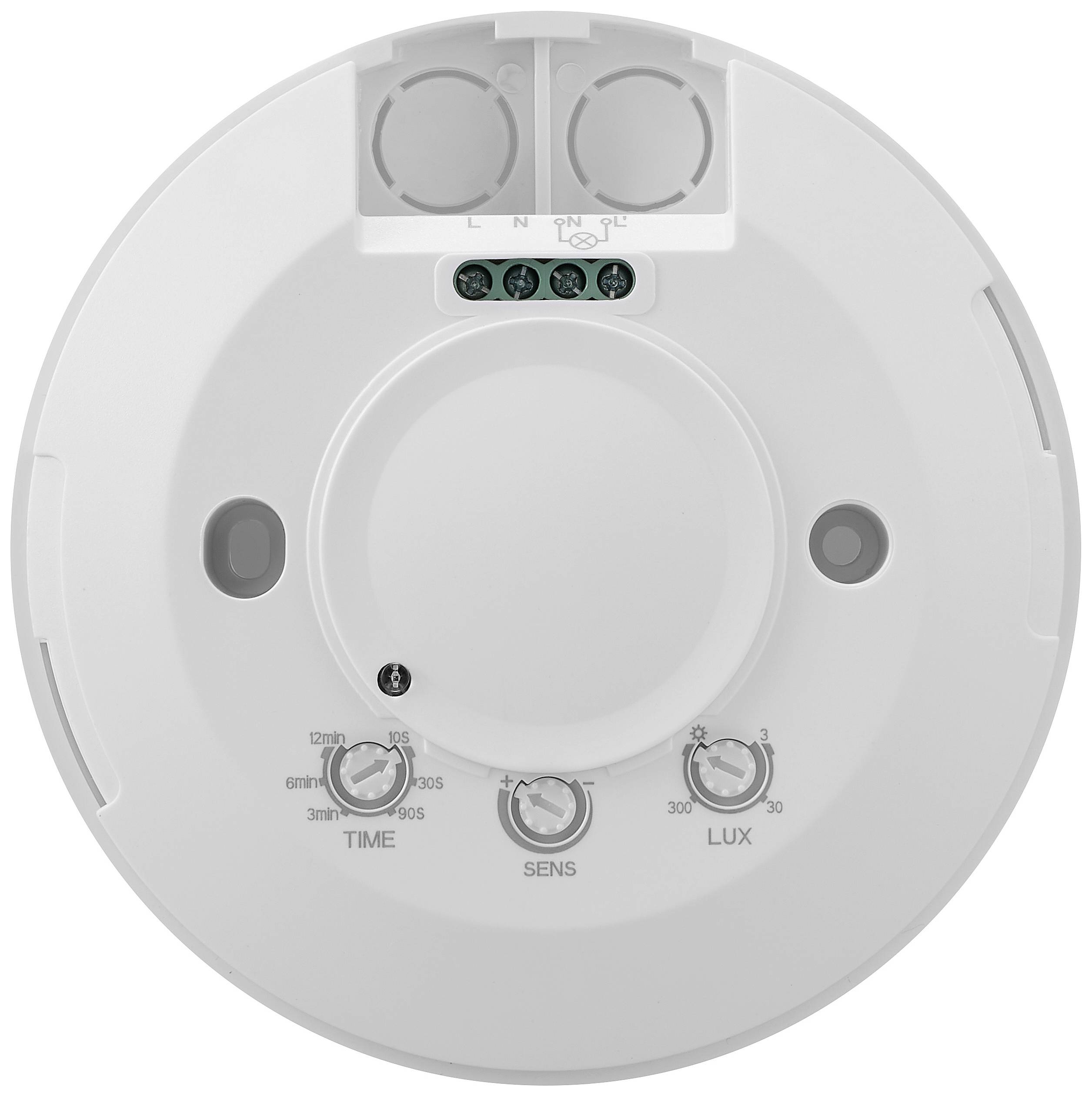

- Twilight settings
3 - 2000 lx
- Time settings
10 sec - 12 min
- Factory colour
White
- Height
24 mm
- (Ø)
115 mm
- Dim
(Ø x H) 115 mm x 24 mm
- Weight
106 g
- Plastic free packaging
Plastic-free packaging
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3059114 Sygonix SY-6118228 Ceiling, Surface-mount HF motion detector 360 ° Relay White
Warranty Terms
Warranty Terms 3059114 Sygonix SY-6118228 Ceiling, Surface-mount HF motion detector 360 ° Relay White
Description
The 360° detection system does not matter from which direction you enter the detection range of this microwave motion sensor. The connected lamp is always reliably switched on within 16 m, whereby the luminous period can be individually adjusted.
This text is machine translated.
This text is machine translated.
Features
- Microwave motion sensor
- For incandescent lamps, energy-saving lamps and LED lights

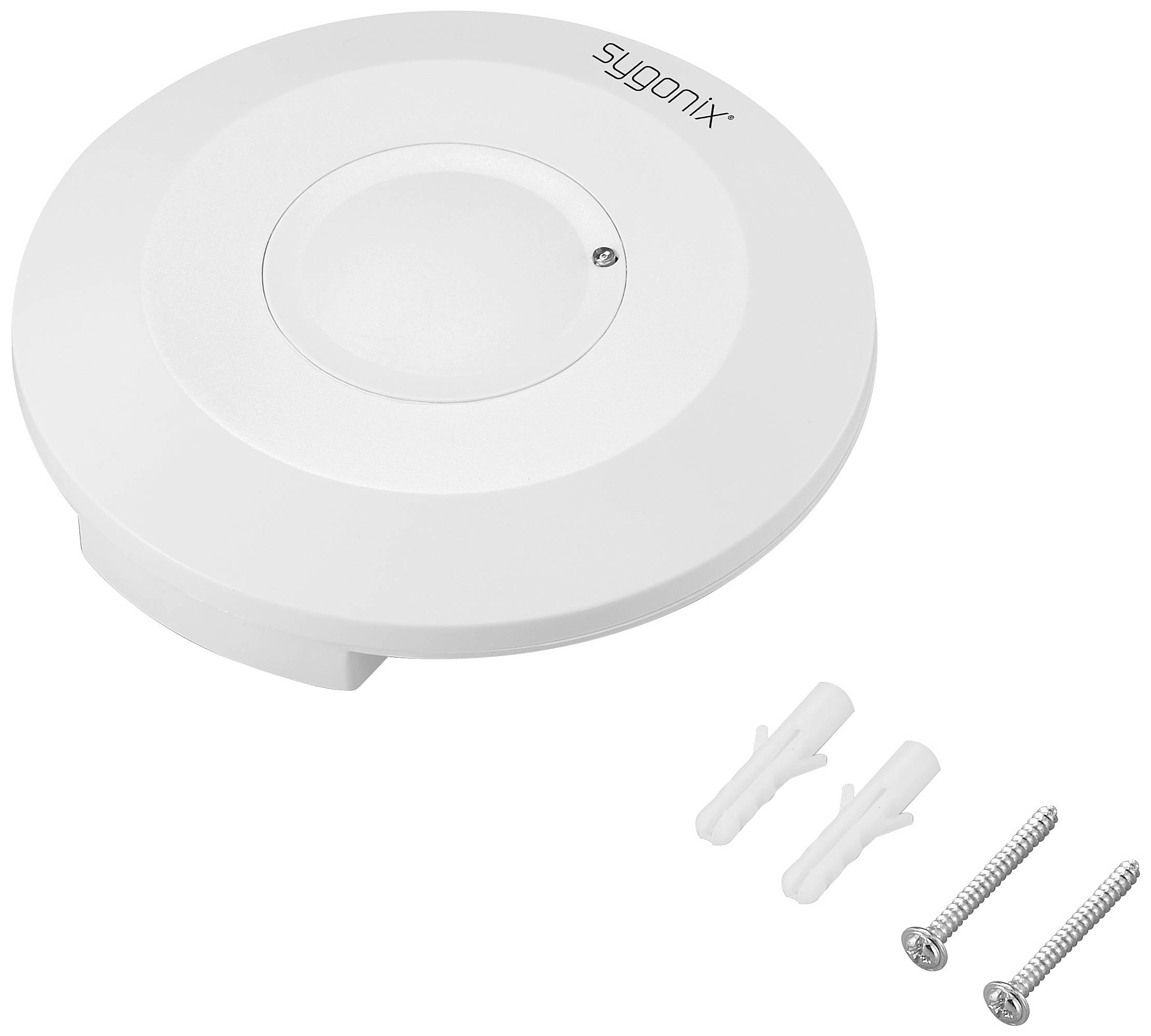

Scope of delivery
- Sensor
- 2x Screws
- 2x Dowels
- User manual
