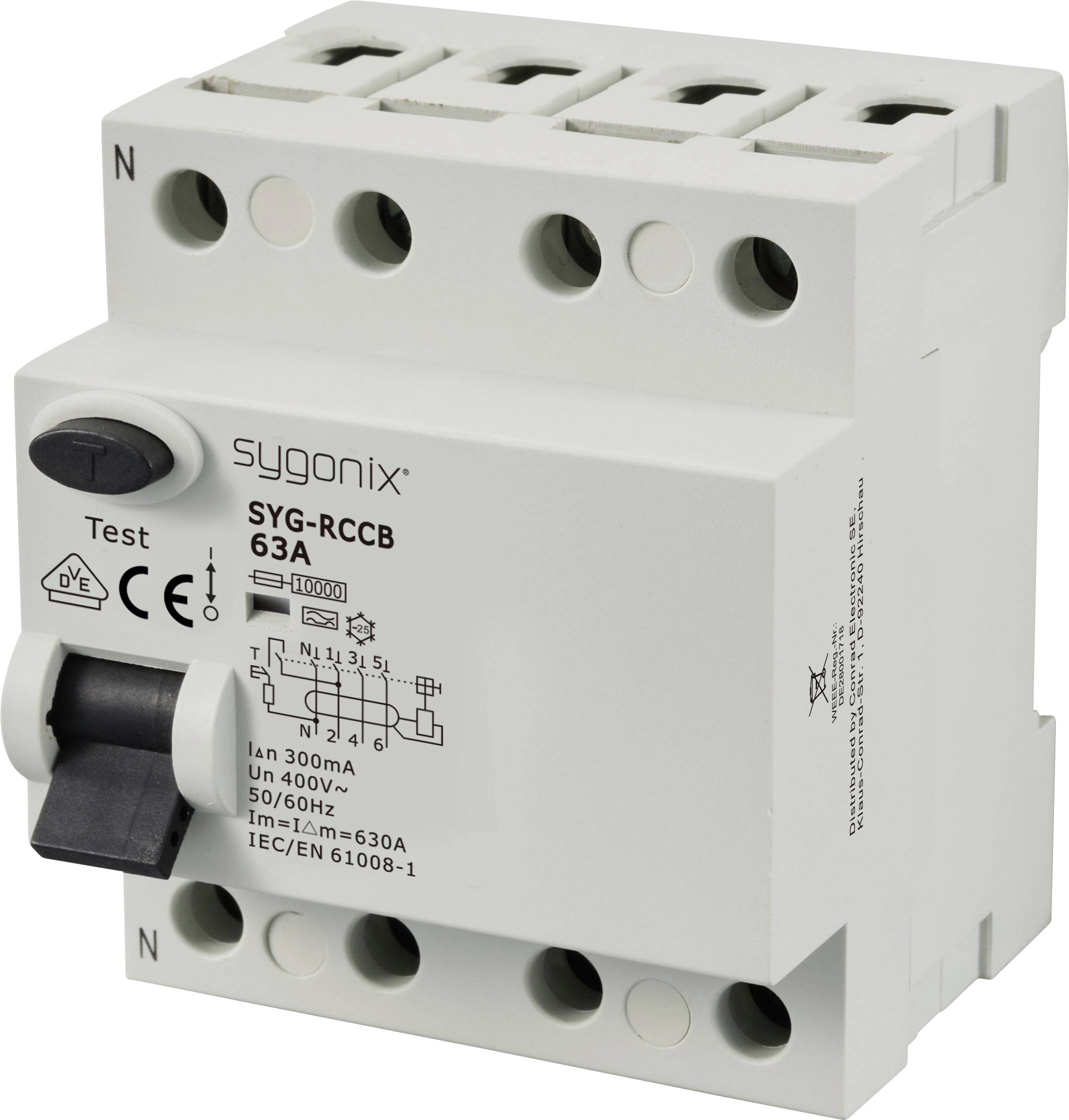

Buy Sygonix SY-6438024 SYG-RCCB 3P+N/A63/10kA/300mA RCCB A 4-pin 63 A 0.3 A 400 V AC

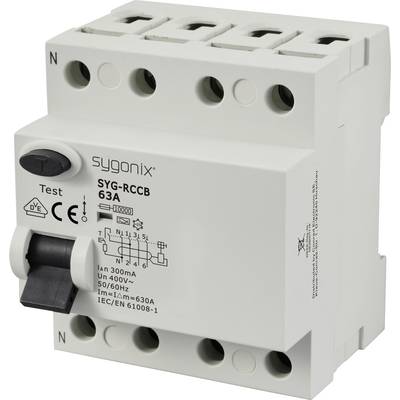

'RCD Circuit Breaker SYG-RCCB, 63A, 400V, 50/60Hz' with test button; grey casing; CE mark and technical specifications visible.

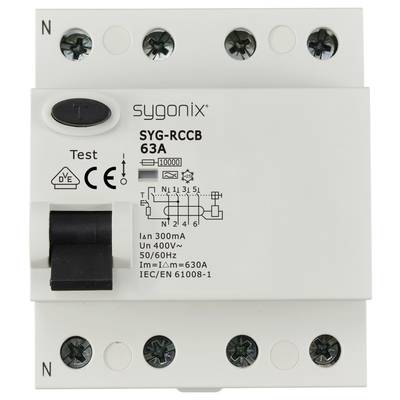

A residual current circuit breaker (RCD) with the label 'sygonix SYG-RCCB 63A'; technical specifications: 400V, 50/60Hz, IEC/EN 61008-1.

A white electrical component that looks like a fuse holder, with multiple rectangular openings and slots.

A white plastic housing of an electrical device with the print 'Distributed by Conrad Electronic SE, Klaus Conrad Str. 1, D-92240 Hirschau'.

A four-pole electrical terminal block with five screw terminals. It is used for secure and efficient cable connection.

1/5

Product type

RCCB

Number of pins

Release characteristics

Differential current rating

0.3 A

Nominal current - rounded value

63 A

50 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 22.68 / piece)

€

Report legal concerns

Highlights & Details

Residual current circuit breaker, 4-pole, 10kA, 63A, 300mA

Protection against earth fault/leakage current and residual current
Protection against fire hazard caused by insulation faults
Residual fault current indicator
10kA high breaking capacity
Compatible with pin or fork type busbar
Fire resistant plastic parts can withstand abnormal heating and strong impact
Automatically disconnects the circuit when earth fault/leakage current occurs or exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference or voltage fluctuations
35mm DIN rail mounting
Function test button

Our service for you

Technical specifications

Product type: RCCB

Number of pins: 4

Release characteristics: A

Differential current rating: 0.3 A

Nominal current: 63 A

Nominal current - rounded value: 63 A

Dim: (W x H x D) 72 x 83 x 68 mm

Switch-off capacity: 10 kA

Factory colour: White

Content: 1 pc(s)

Nominal voltage: 400 V AC

Width: 72 mm

Height: 83 mm

Depth: 68 mm

Type: 4pole 63A 0.3A

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3219012 Sygonix SY-6438024 SYG-RCCB 3P+N/A63/10kA/300mA RCCB A 4-pin 63 A 0.3 A 400 V AC

Warranty Terms

Warranty Terms 3219012 Sygonix SY-6438024 SYG-RCCB 3P+N/A63/10kA/300mA RCCB A 4-pin 63 A 0.3 A 400 V AC

Description

Features

Tested according to DIN EN 61008-1 (VDE 0664-10), DIN EN 61008-2-1 (VDE 0664 Part 11)
Rated current: 63 A
Rated voltage: 400 V/AC
Rated frequency: 50/60 Hz
Trigger characteristics: A
Switching capacity: 10000 A
Rated residual current: 300 mA
Number of poles: 4 (3P+N)
Electrical endurance: 2000 cycles
Mechanical endurance: 10000 cycles
Cable termination: 35 mm²
Screw torque: 2.5 Nm
Protection class: IP20
