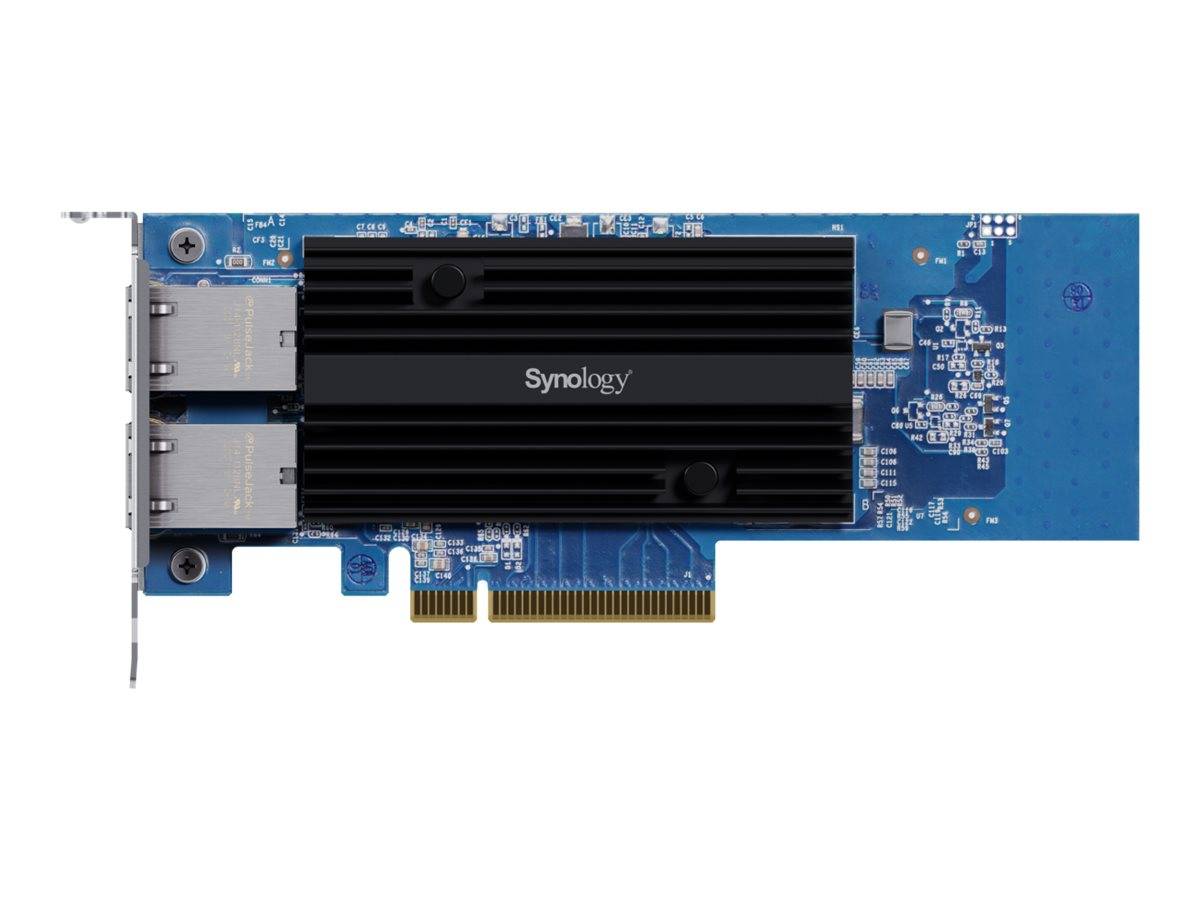

Synology E10G30-T2 Network adapter
EAN:
Part number:
Item no:
Highlights & Details
Synology LAN adapter, 2x RJ-45, PCIe 3.0 x8
- Up to 10 Gbps data transfer rate
Technical specifications
- Ethernet/LAN : Yes
- Wiring technology : 10/100/1000BaseT(X)
- Operating temperature: 0 - 40 °C
- Number of Ethernet LAN connections (RJ-45) : 2
- Storage humidity : 5 - 95%
- Temperature range during storage: -20 - 60 °C.
- Ethernet interfaces Type : 10 Gigabit Ethernet, Gigabit Ethernet
- Power Standard : IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x
- Ethernet LAN data transfer rates : 100,1000,10000 Mbit/s.
- Product Colour : Blue, Multi-colored
- Relative humidity in operation : 8 - 80%
- Width 167.7 mm
- Depth: 14.7 mm
- Height : 68.9 mm
- Product type
Network adapter
- No. of Gigabit LANs
2 x
- LAN transfer rate
10000 MBit/s
- Version
Cable
- Cable use
PC
- Weight
0.206
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739839 Synology E10G30-T2 Network adapter
Description
Synology E10G30-T2. Stabilisation. Transmission: Cable-bound, host-interface: PCI Express, interface: Ethernet. Maximum data transfer rate of 10000 Mbps Product color: Blue, multi-colored
This text is machine translated.
This text is machine translated.
Features
- Synology - Network adapter - PCIe 3.0 x8 - 10Gb Ethernet x 2
- Device Type : Network adapters
- Form factor : Plug-in card - Low profile
- Interface type (bus type) : PCI Express 3.0 x8
- PCI specification revision : PCIe 3.0
- Ports : 10Gb Ethernet x 2
- Dimensions (width x depth x height): 16.77 cm x 1.47 cm x 6.89 cm
- Data Link Protocol: 10GbE
- Data transfer rate : 10 Gbps
- Network/transport protocol : TCP/IP, UDP/IP
- Product certifications : IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ab, IEEE 802.3an
