Buy Synology RackStation RS1221+ NAS server casing 8 Bay RS1221+

A black network storage device with eight drive bays and LED indicators on the left side.

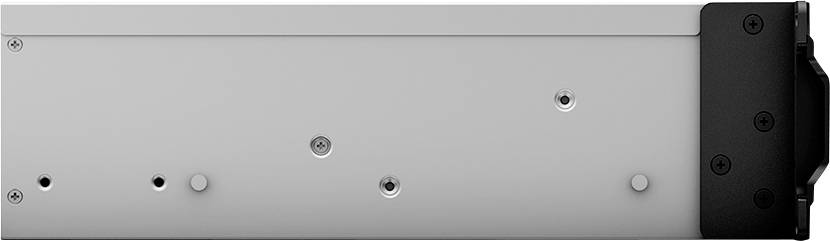

The image shows the side view of a metallic device enclosure with multiple screw and mounting points.

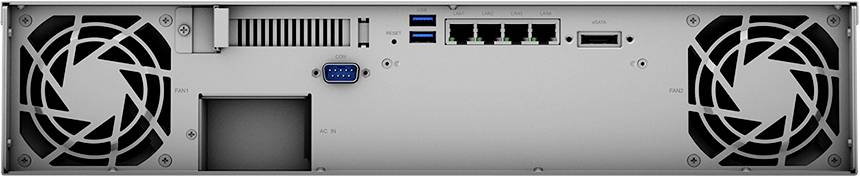

Back of an electronic device with ventilation slots, multiple USB ports, Ethernet ports, and a serial connection.

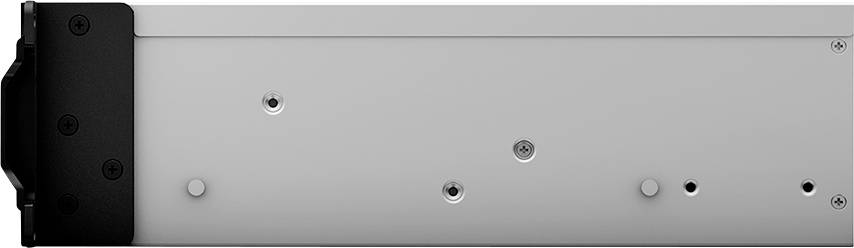

Grey metal box with multiple screws and a black border on the left side. Possibly a component of a technical device or hardware.

1/4

Datasheet (PDF)

Dispatches on Mon, 21 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,575.63 / piece)

€ 1,575.63

plus VAT.

Report legal concerns

Synology NAS RS1221+ 8bay 19"

Highlights & Details

CPU AMD RyzenTM V1500B Quad-Core 2.2 GHz
Memory:GB DDR4 ECC SODIMM (expandable up to GB)
8 x 3.5" or 2.5" SATA HDD/SSD (without hard disks)
Supports rack installation: 2-post rack 19" (direct mounting), 4-post rack 19"

Technical specifications

Product type: NAS server casing

Series: RackStation RS1221+

No. of hard disk bays: 8 Bay

Suitable for hard drive sizes (HDD/SSD): 2.5 inch
3.5 inch

CPU: AMD RyzenTM V1500B Quad-Core 2.2 GHz

: 4 GB

RAM / Max. upgrade: 32 GB

Interfaces: PCI-Express
eSATA
VGA
USB A (USB 3.2 1st gen)
LAN (10/100 Mbps)

No. of USB type A 3.0 ports: 2 x

No. of LAN ports: 4 x

No. of eSATA slots: 1 x

RAID: Yes

RAID levels: 0
1
5
6
10

No. of shared folders (max.): 512

No. of simultaneous connections (max.): 1000

No. of domain-specific user groups (max.): 256

External HDD file system: Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFat

Internal HDD file system: Btrfs
EXT4

Power supply (LOV): mains-powered

Width: 482 mm

Height: 88 mm

Depth: 306.6 mm

Weight: 6.9 kg

Dim: (W x H x D) 482 x 88 x 306.6 mm

Access via mobile devices: Browser

Supported mobile OS: Android™
Apple iOS®
Windows®
Mac OS®

Factory colour: Multicolour

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2347814 Synology RackStation RS1221+ NAS server casing 8 Bay RS1221+

User & Safety Instructions

User & Safety Instructions 2347814 Synology RackStation RS1221+ NAS server casing 8 Bay RS1221+

Description

Protect critical business assets with reliable data protection
The Synology RackStation RS1221+/RS1221RP+ is a powerful 2HE rack-mount NAS solution with 8 slots, which is optimally suitable for central data management in environments with low rack depth. ideal for demanding file workloads and protecting digital assets in smaller business environments, the RS1221+ series offers comprehensive data protection options integrated with the DiskStation Manager (DSM) operating system.

This text is machine translated.

Features

High performance - multi-user environments are easily managed with up to 2,315 MB/s read and 1,147 MB/s write
Compact implementation - the RS1221+ and RS1221RP+ offer a low depth of only 298 mm and 399 mm respectively
Ready for 10GbE - Install a 10GbE SFP+ or RJ-45 network card and instantly increase bandwidth in your existing Infrastruktur2
High Availability - Configure two units together to create a Synology High Availability cluster for maximum service availability and a failover in the minute range
Compatible drive type: 8 x 3.5/2.5" SATA HDD/SSD (without hard disks)
Form factor: Rackmount 2HE
Network protocols: SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OPENVPN™, L2TP)
Storage management: Maximum size for single volume: 108 TB, maximum number of system snapshots: 65,536, maximum internal volume: 64
SSD cache: Supports read/write cache, supports 2.5" SATA SSD, supports M.2 NVMe SSD
Permission: Windows® Access Control List (ACL), Application Permissions
Directory service: Windows® AD integration: Domain user login via SMB/NFS/AFP/FTP/File Station, LDAP integration
Virtualization: VMware vSphere® 6.5, Microsoft Hyper-V®, Citrix®, OpenStack®
