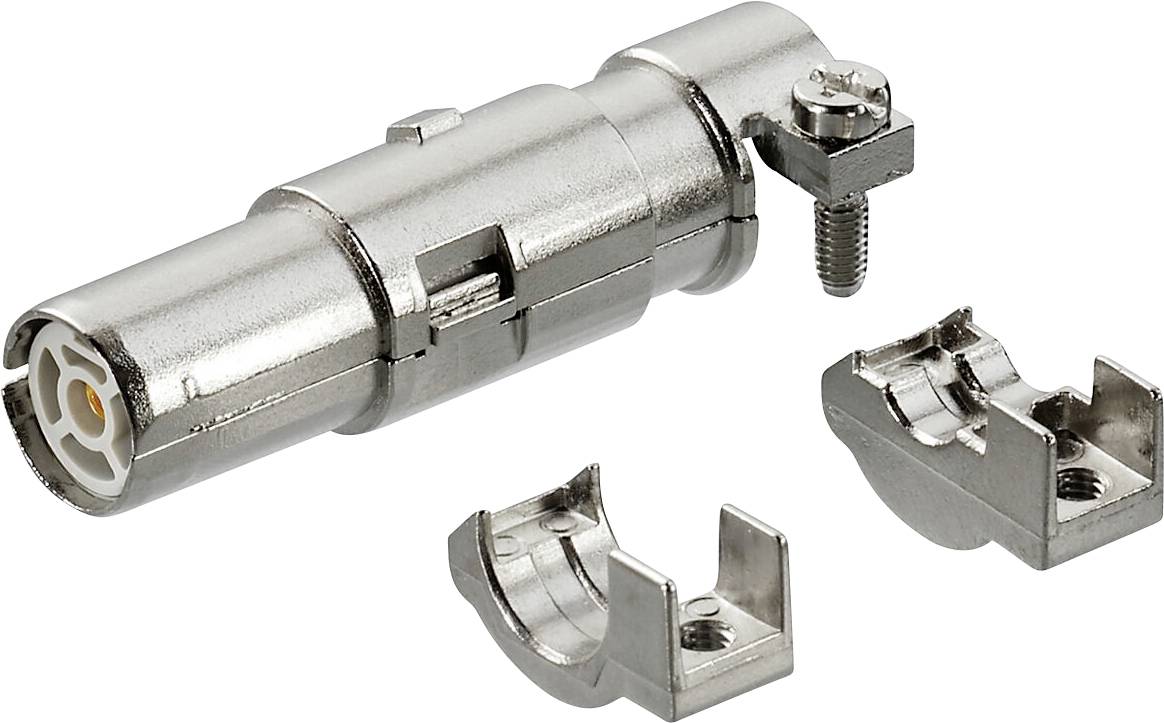

System Bus module HDC CM BUS HE F1 CT Weidmüller Content: 1 pc(s) Industrial Connectors
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial Connectors
Type
HDC CM BUS HE F1 CT
Manufacturer part #
1116090000
Connection
Crimp
Datasheet (PDF)
Highlights & Details
System Bus module
- HDC CM BUS HE F1CT
Our service for you
Technical specifications
- Packaging type
Piece
- Type
HDC CM BUS HE F1 CT
- Product type
Industrial Connectors
- Manufacturer part #
1116090000
- Connection
Crimp
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Suitable for
HE
- Height
47.5 mm
- Length
18.5 mm
- Width
13.5 mm
- Weight
25 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 200611 System Bus module HDC CM BUS HE F1 CT Weidmüller Content: 1 pc(s) Industrial Connectors
User & Safety Instructions
User & Safety Instructions 200611 System Bus module HDC CM BUS HE F1 CT Weidmüller Content: 1 pc(s) Industrial Connectors
Description
System bus module. Heavy-duty connectors, HDC insert, ConCept module. The ConCept-CSB module is designed as a double module and takes in the ConCept module frame two seats. The ConCept-CSB-module consists of a module support in the two contact carrier can be used. The contact carrier is made of zinc die-cast alloy and guarantees an excellent shielding properties. The crimp contacts are insulating to the contact carrier in a plastic insert is mounted. Different numbers of poles, 1-, 4-, 8-pin, the different application possibilities.
