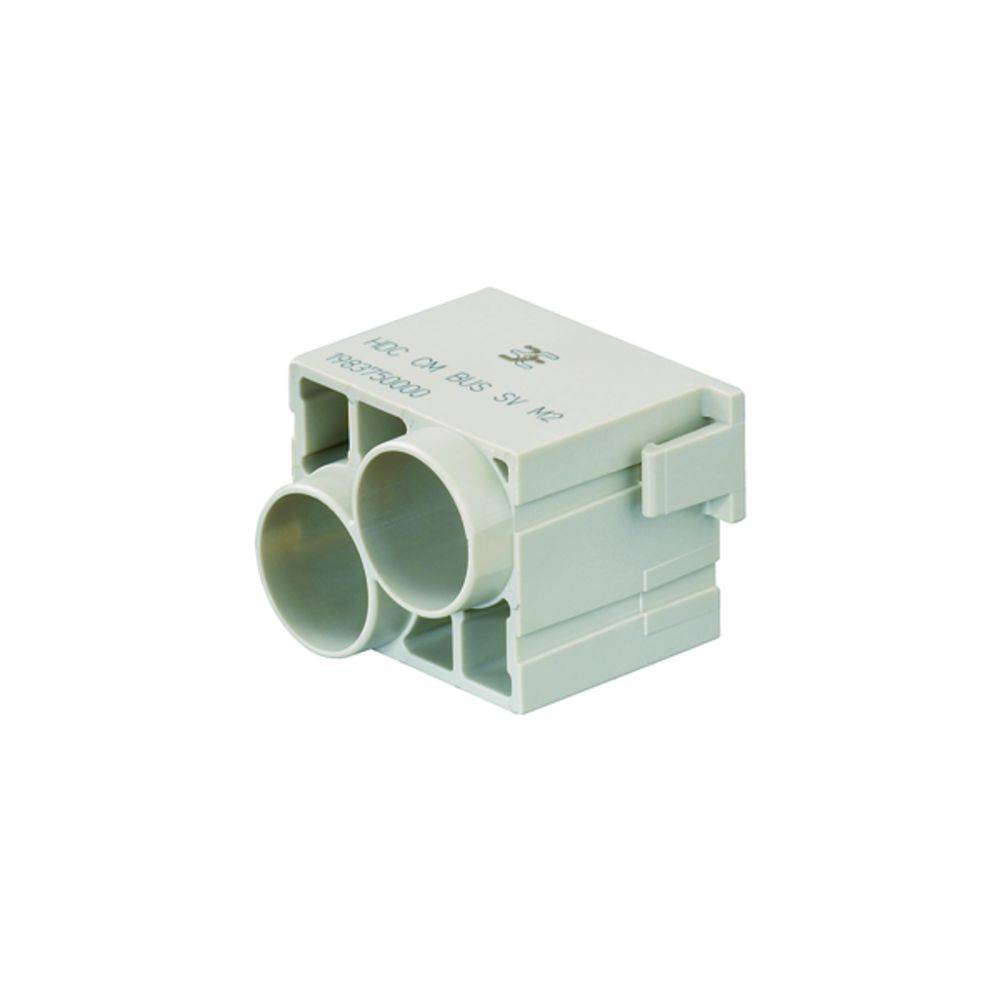

System Bus module HDC CM BUS SV M2 Weidmüller Content: 1 pc(s) System bus module
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
System bus module
Type
HDC CM BUS SV M2
Manufacturer part #
1983750000
Connection
Crimp
Highlights & Details
System Bus module
- HDC CM BUS SV M2
Our service for you
Technical specifications
- Packaging type
Piece
- Type
HDC CM BUS SV M2
- Product type
System bus module
- Manufacturer part #
1983750000
- Connection
Crimp
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Suitable for
HD
- Height
28.5 mm
- Length
34 mm
- Width
22.8 mm
- Weight
9 g
22.8
28.5 m
V0
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 256247 System Bus module HDC CM BUS SV M2 Weidmüller Content: 1 pc(s) System bus module
Description
System bus module. Heavy-duty connectors, HDC insert, ConCept module. The ConCept-CSB module is designed as a double module and takes in the ConCept module frame two seats. The ConCept-CSB-module consists of a module support in the two contact carrier can be used. The contact carrier is made of zinc die-cast alloy and guarantees an excellent shielding properties. The crimp contacts are insulating to the contact carrier in a plastic insert is mounted. Different numbers of poles, 1-, 4-, 8-pin, the different application possibilities.
