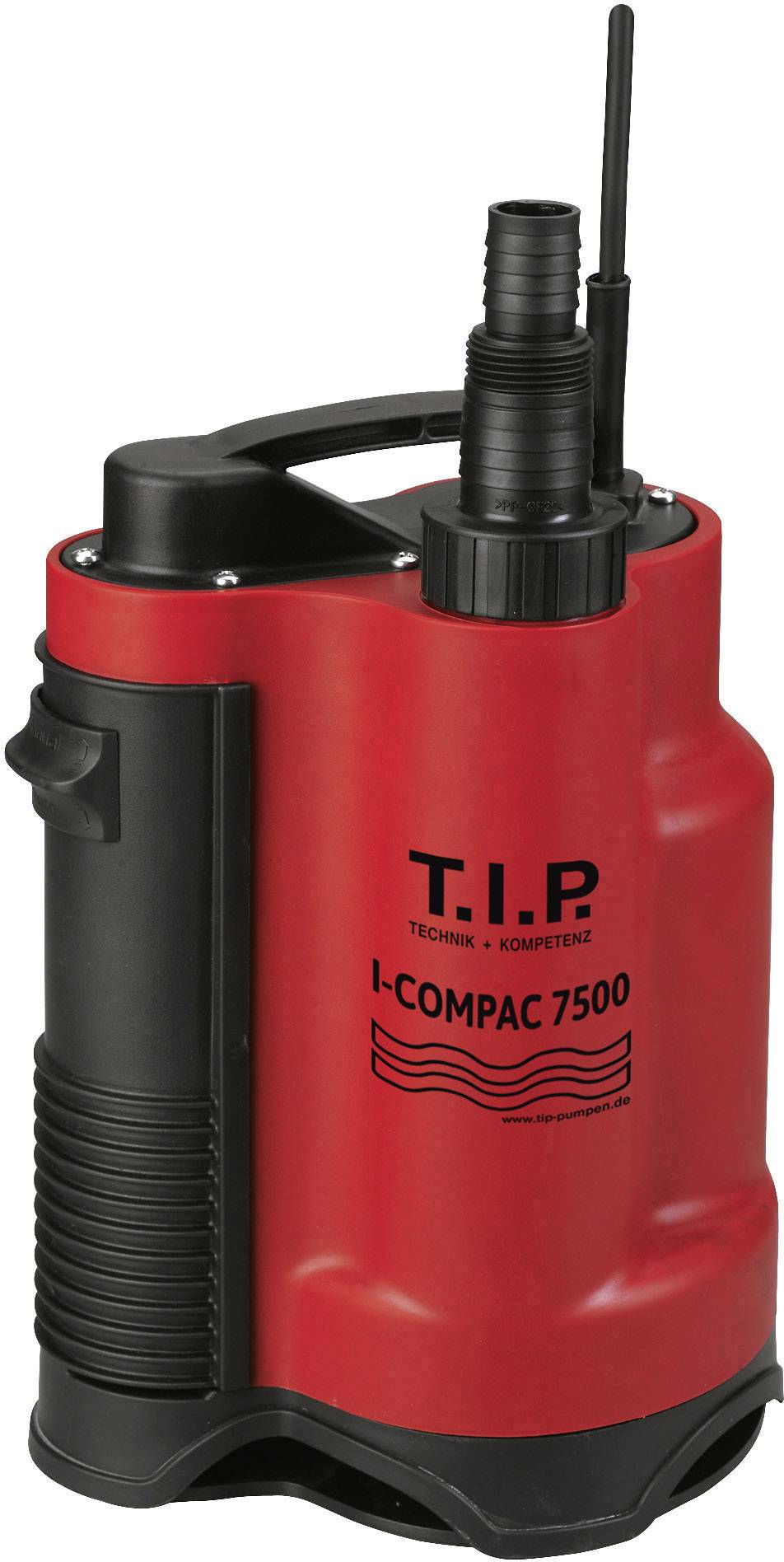

T.I.P. - Technische Industrie Produkte 30190 I-COMPAC 7500 Effluent sump pump 7.500 l/h 5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Effluent sump pump
- Max. delivery head
5 m
- Max. feed rate
7.500 l/h
- Max. discharge pressure
0.5 bar
- Operating voltage
230 V
- Power consumption (P1)
400 W
- Pressure connection
47.81 mm (1 1/2") OT
- Max. size of solids
16 mm
- Immersion depth
5 m
- Max. cable length
10 m
- Float switch
Yes
- Weight
4.2 kg
Documents & Downloads
Datasheet
Datasheet 2115016 T.I.P. - Technische Industrie Produkte 30190 I-COMPAC 7500 Effluent sump pump 7.500 l/h 5 m
User & Safety Instructions
User & Safety Instructions 2115016 T.I.P. - Technische Industrie Produkte 30190 I-COMPAC 7500 Effluent sump pump 7.500 l/h 5 m
Warranty Terms
Warranty Terms 2115016 T.I.P. - Technische Industrie Produkte 30190 I-COMPAC 7500 Effluent sump pump 7.500 l/h 5 m
Description
Specially designed waste water drainage immersion pump with vertical pump output and integrated float switch, for use in drainage systems. This pump can be switched from automatic to manual operation. Can also be used for dirty water up to 16 mm grain size.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Drainage submersible pump
- Multi-dimensional connector: 45.48 mm (11⁄2" female thread) - 33.25 mm (1'' male thread) Ø 33 mm - Ø 25 mm
- User manual.
