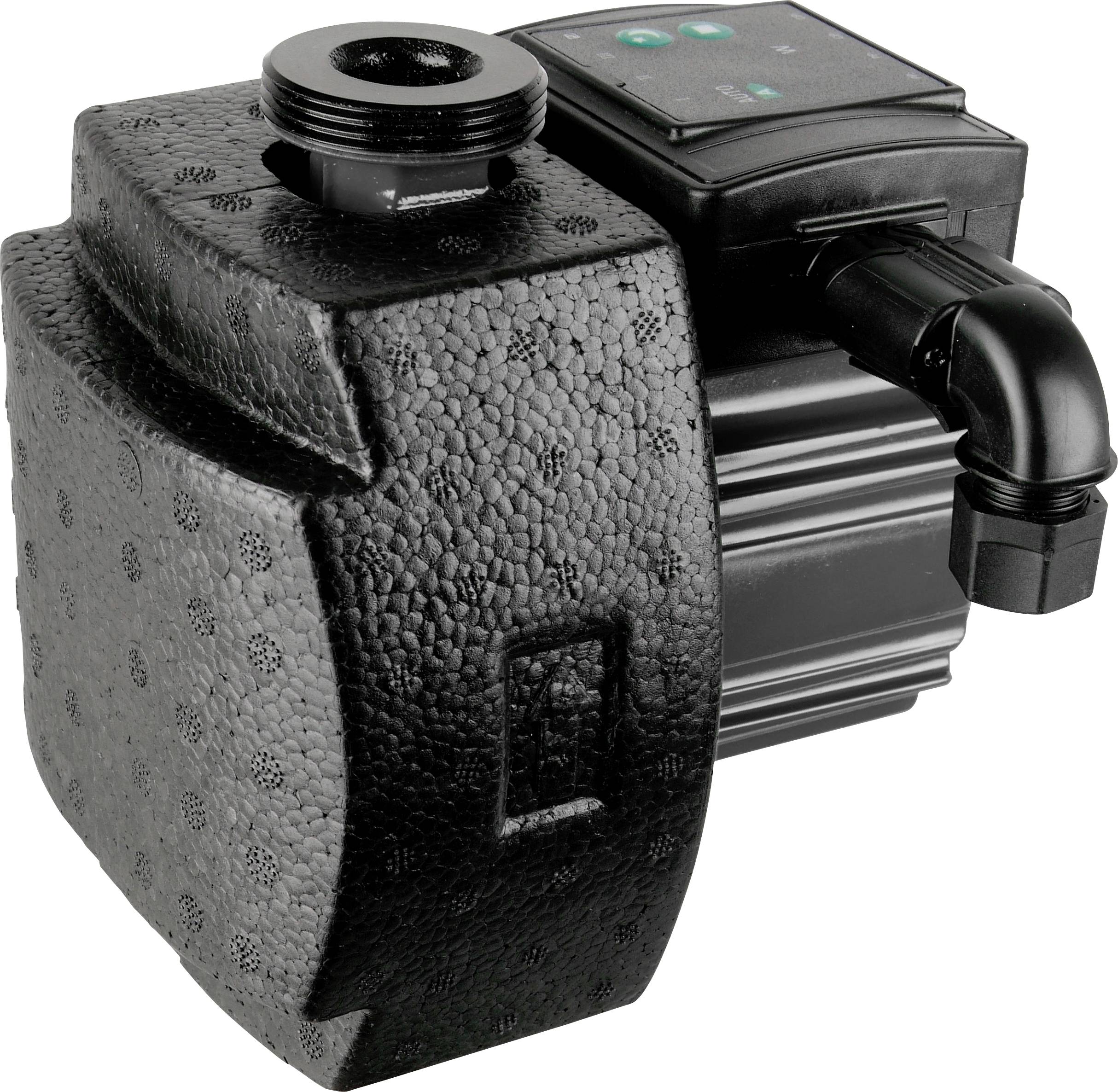

T.I.P. - Technische Industrie Produkte HZP 25-40-180 ECO Circulation pump
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details
HZP 25-40-180 ECO
- Max. Operating pressure 10 bar
- Max. Temp. Liquid 95 °C.
Technical specifications
- Product type
Circulation pump
- Operating voltage
230 V
- Max. operating pressure
10 bar
- Hose connector
47.81 mm (1 1/2") OT
- Pressure connection
44.9 mm (1 1/2") IT
IP44
- Weight
2.6 kg
Documents & Downloads
Datasheet
Datasheet 2368828 T.I.P. - Technische Industrie Produkte HZP 25-40-180 ECO Circulation pump
User & Safety Instructions
User & Safety Instructions 2368828 T.I.P. - Technische Industrie Produkte HZP 25-40-180 ECO Circulation pump
Warranty Terms
Warranty Terms 2368828 T.I.P. - Technische Industrie Produkte HZP 25-40-180 ECO Circulation pump
Description
The HZP ECO has a permanent magnet motor and differential pressure control, which enables a continuous adjustment of the pump power to the current system conditions. Thanks to THE AUTO function (factory setting), the pump can be put into operation directly in most cases without the need for further settings. The energy consumption is significantly lower (up to 80%) than with standard circulation pumps.

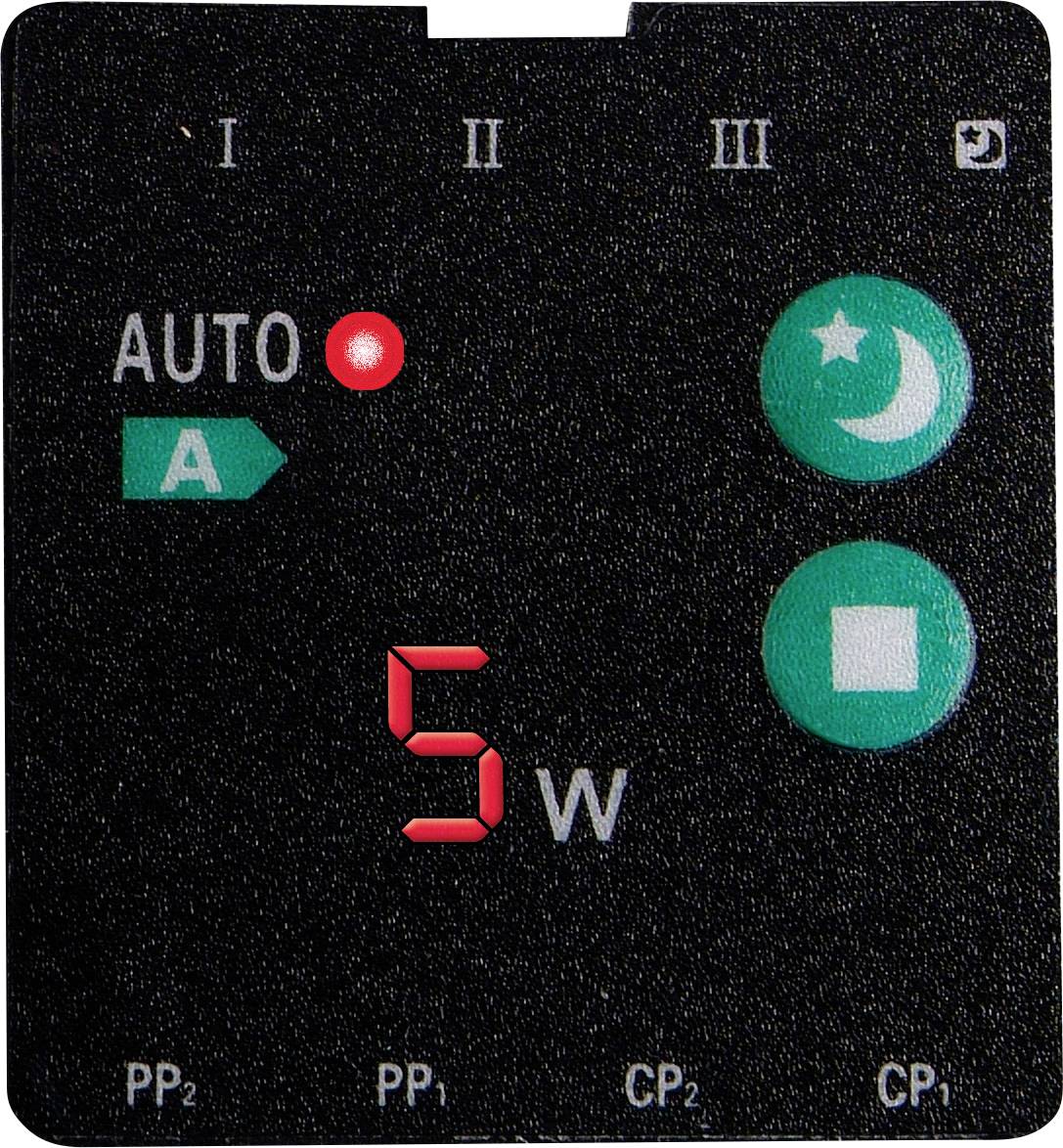

In addition to the auto setting, various control modes can be selected, including automatic night reduction.
At 0.19, the Energy Efficiency Index (EEI) of this pump is already well below the requirements that come into force in 2015.
Incl. fitting insulation shell and system plug for simple electrical connection
This text is machine translated.
In addition to the auto setting, various control modes can be selected, including automatic night reduction.
At 0.19, the Energy Efficiency Index (EEI) of this pump is already well below the requirements that come into force in 2015.
Incl. fitting insulation shell and system plug for simple electrical connection
This text is machine translated.
Scope of delivery
- Incl. 2 seals
- Insulation shell
