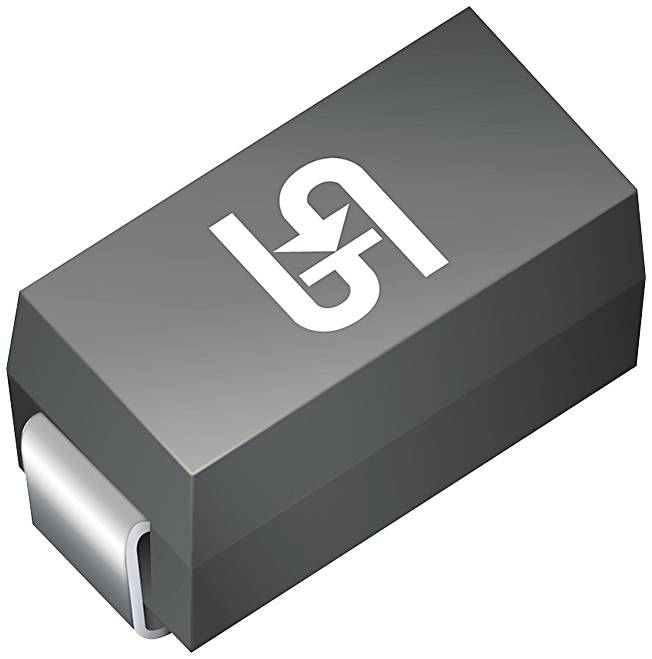

Taiwan Semiconductor Rectifier 1 mA S1M Single Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Rectifier
U(RRM)
1.000 V
Configuration (diode)
Single
Forward current I(F)
1 mA
Datasheet (PDF)
Number
Minimum order quantity: 30
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.04 / piece)
€ 1.20
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Type
S1M
- Product type
Rectifier
- Manufacturer
Taiwan Semiconductor
- U(RRM)
1.000 V
- Configuration (diode)
Single
- Forward current I(F)
1 mA
- Forward voltage U(F)
1.1 V
- Reverse leakage current I(r)
1.000 nA
- Reverse recovery time T(rr)
1.500 ns
- Series
S1
- Operating temperature (min.)
-55 °C
- Operating temperature (max.)
175 °C
- Mounting type
PCB mount
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2993239 Taiwan Semiconductor Rectifier 1 mA S1M Single Tape on Full reel
User & Safety Instructions
User & Safety Instructions 2993239 Taiwan Semiconductor Rectifier 1 mA S1M Single Tape on Full reel
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
