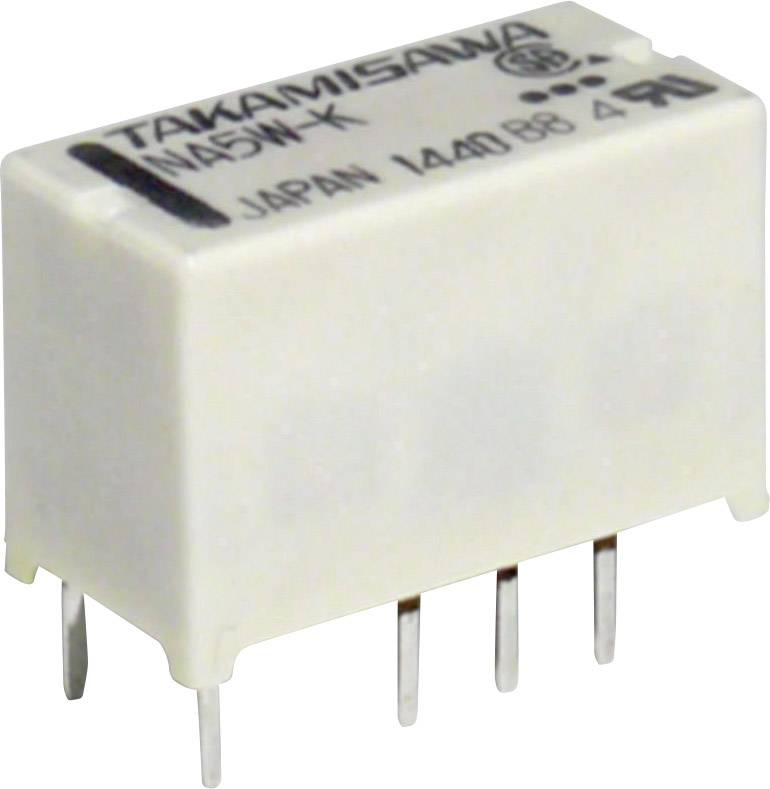

Takamisawa NA12WK12V PCB relay 12 V DC 2 A 2 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
2 change-overs
Switching voltage (max.)
220 V DC
250 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
5
3% = € 0.04
€ 1.46
10
5% = € 0.07
€ 1.43
50
10% = € 0.15
€ 1.35
100
20% = € 0.30
€ 1.20
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
Technical specifications
- Product type
PCB relay
- Type
NA12WK12V
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
1028 Ω
- Contact type
2 change-overs
- Contact material
Ag + Au
- Switching voltage (max.)
220 V DC
250 V AC
- Switching current (max.)
2 A
- Max. switching capacity
30 W
62.5 VA
- Connection
Solder pins
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Length
15 mm
- Width
7.5 mm
- Height
11 mm
- Dim
(L x W x H) 15 x 7.5 x 11 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Nominal voltage (details)
12 V
- Switching capacity
62.5 VA/30 W
- Type
NA12WK12V
- Temperature range
-40 - +70 °C
Documents & Downloads
Datasheet
Datasheet 504688 Takamisawa NA12WK12V PCB relay 12 V DC 2 A 2 change-overs 1 pc(s)
Description
Monostabile, polarity sensitive. Small, high capacity relay with two changeover contacts.
Hints
The relay needs only 140 mW to operate. It has a high surge capacity of 2000 V 10/700 µs to FTZ.
