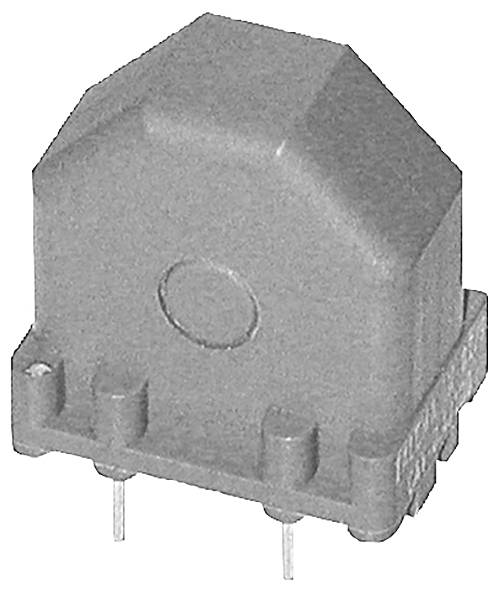

Talema CAV-2,0-5,6 CAV Common mode chokes vertical CAV 5.6 mH 2 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Common mode chokes
Inductance (L)
5.6 mH
Max. temperature
125 °C
Features
vertical
Type
CAV
Datasheet (PDF)
Highlights & Details
Talema current-compensated chokes
Our service for you
Technical specifications
- Mounting type: Vertical
- Nominal resistance 120 mOhm
- Structure: Partly cast
- Number of windings: 2
- Two separate windings for low capacitive resistance
- Pin dimension: 0.6X0,88mm
- Product type
Common mode chokes
- Features
vertical
- Type
CAV
- Inductance (L)
5.6 mH
- Tolerance ±
0.3 %
- Nominal voltage
250 V AC
- Nominal current
2 A
- Length
27 mm
- Width
18 mm
- Height
30 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(L x W x H) 27 x 18 x 30 mm
- RoHS-compliant
Yes
- Type
CAV
