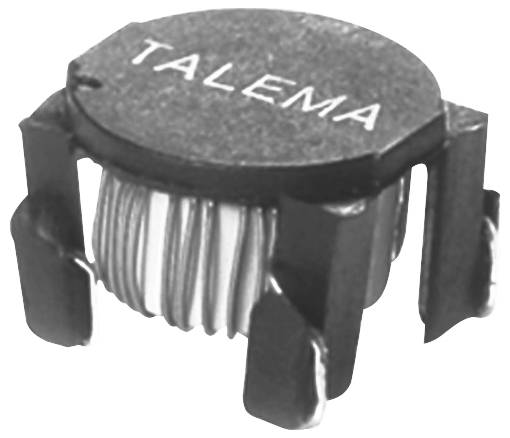

Talema LCP5-0,94-220 LCP Choke coated 220 µH 0.94 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Choke
Inductance (L)
220 µH
Max. temperature
125 °C
Features
coated
Datasheet (PDF)
Highlights & Details
Talema Induktivitäten LCP series
Our service for you
Technical specifications
- Nominal resistance 298 mOhm
- 71.5 µJ
- Suitable for frequencies up to 1MHz
- High stability
- Excellent soldering properties thanks to gold-plated soldering surfaces
- Voltage resistance of 500Vrms
- Packaging type
Piece
- Product type
Choke
- Features
coated
- Inductance (L)
220 µH
- Tolerance ±
0.15 %
- Nominal current
0.94 A
- Material
Gold
- Length
12 mm
- Width
10.2 mm
- Height
9.1 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- Dim
(L x W x H) 12 x 10.2 x 9.1 mm
- RoHS-compliant
Yes
- Type
LCP
