Tamiya 56361 Mercedes Benz Arocs 3348 Hinterkipper 1:14 Electric RC model truck Kit
EAN:
Part number:
Item no:
Total (€ 600.84 / piece)
€ 600.84
plus VAT.
14-day return policy included
Highlights & Details

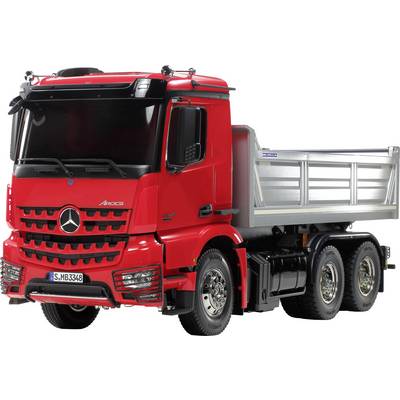

1:14 Electric truck Mercedes Benz Arocs 3348 red/silver rear tipper kit
- Prototypical ABS body replica of the Arocs 3348
- One-piece loading tray for max. 10 kg load
- 3-axis chassis with reinforced frame
Technical specifications
- Product type
RC model truck
- Dim
(L x W x H) 576 x 190 x 267 mm
- Engine type
Electric
- Model craft type
HGV
- Weight
3500 g
- Scale
1:14
- Model version
Kit
- Width
190 mm
- Height
267 mm
- Length
576 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2181332 Tamiya 56361 Mercedes Benz Arocs 3348 Hinterkipper 1:14 Electric RC model truck Kit
Description
Ready for the construction site?
Tamiya presents the first dumper truck in the Mercedes-Benz Arocs 3348 version! The trough consists of a sturdy ABS part and has a movable and automatically unlocking tailgate. The maximum load is 10 kg and the trough can be tilted wirelessly via the optionally available ACU-01 spindle drive unit.
The distinctive design of the new Arocs is as extraordinary as the truck as a whole. For example, a radiator grillee in the so-called bagger-tooth look was fitted in the look specially developed for construction vehicles, which should convey the message: "Bite and grab". Special protective grids for the lighting system are attached to the bumper to match the robust appearance.
This model kit is 576 mm long, weighs around 3.5 kg and can be used to create impressive combinations. Under the forward tilting cab is the proven and robust Tamiya Truck technology. A new Mighty-Tuned 35T electric motor delivers its power to the two rear axles via a switchable 3-speed transmission. A detailed aluminum conductor frame gives the model the necessary stability and flexibility.
A special additional frame was installed for the trough, which makes the model particularly stable.
At the rear part of the frame, a clevis (e.g. Carson 500907182) can be attached and thus pull the trailer.
This text is machine translated.
Tamiya presents the first dumper truck in the Mercedes-Benz Arocs 3348 version! The trough consists of a sturdy ABS part and has a movable and automatically unlocking tailgate. The maximum load is 10 kg and the trough can be tilted wirelessly via the optionally available ACU-01 spindle drive unit.
The distinctive design of the new Arocs is as extraordinary as the truck as a whole. For example, a radiator grillee in the so-called bagger-tooth look was fitted in the look specially developed for construction vehicles, which should convey the message: "Bite and grab". Special protective grids for the lighting system are attached to the bumper to match the robust appearance.
This model kit is 576 mm long, weighs around 3.5 kg and can be used to create impressive combinations. Under the forward tilting cab is the proven and robust Tamiya Truck technology. A new Mighty-Tuned 35T electric motor delivers its power to the two rear axles via a switchable 3-speed transmission. A detailed aluminum conductor frame gives the model the necessary stability and flexibility.
A special additional frame was installed for the trough, which makes the model particularly stable.
At the rear part of the frame, a clevis (e.g. Carson 500907182) can be attached and thus pull the trailer.
This text is machine translated.
Features
- Pre-painted body parts in Italian Red (TS-8) cab, H, K and M parts
- Pre-painted hollow in aluminum color (TS-17) tipper recess and CC parts
- Prototypical ABS body building of the Arocs 3348 including handrails, steps, side mirrors and many more
- One-piece loading tray for max. 10 kg load
- Tamiya 3-axle chassis with reinforced frame
- Tilt spindle unit sold separately under 300056545
- Including TR mighty-tuned engine for a perfect power delivery to the two driven rear axles
- New rear tires, bumper and shields
- 3-speed manual transmission can be controlled via optional 4-channel remote control
- Leaf springs on axles and rear shock absorbers with coil springs - Recommended accessories: MFC-03 multi-function unit (300056523) for driving, lighting and sound functions; ACU-01 spindle drive unit (300056545) for tilting function
Scope of delivery
- Assembly Kit
- User manual.
