TAMS Elektronik 22-01-071 FCS-1 Flashing control circuits Emergency service vehicle 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details
Vehicle lighting FCS-1
Technical specifications
- Size
Universal
- Product type
Flashing control circuits
- Functions
Emergency service vehicle
- Type
Prefab component
- Max. current consumption
4 mA
- Length
18 mm
- Width
12 mm
- Height
2.1 mm
- Dim
(L x W x H) 18 x 12 x 2.1 mm
- Age category
15 years and over
- Type
Module
- Manufacturer part #
22-01-071
- Design type
Spare vehicle lighting
- Current consumption
(without load) 4 mA
- Operating voltage
2 - 3 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 219646 TAMS Elektronik 22-01-071 FCS-1 Flashing control circuits Emergency service vehicle 1 pc(s)
User & Safety Instructions 219646 TAMS Elektronik 22-01-071 FCS-1 Flashing control circuits Emergency service vehicle 1 pc(s)
Description

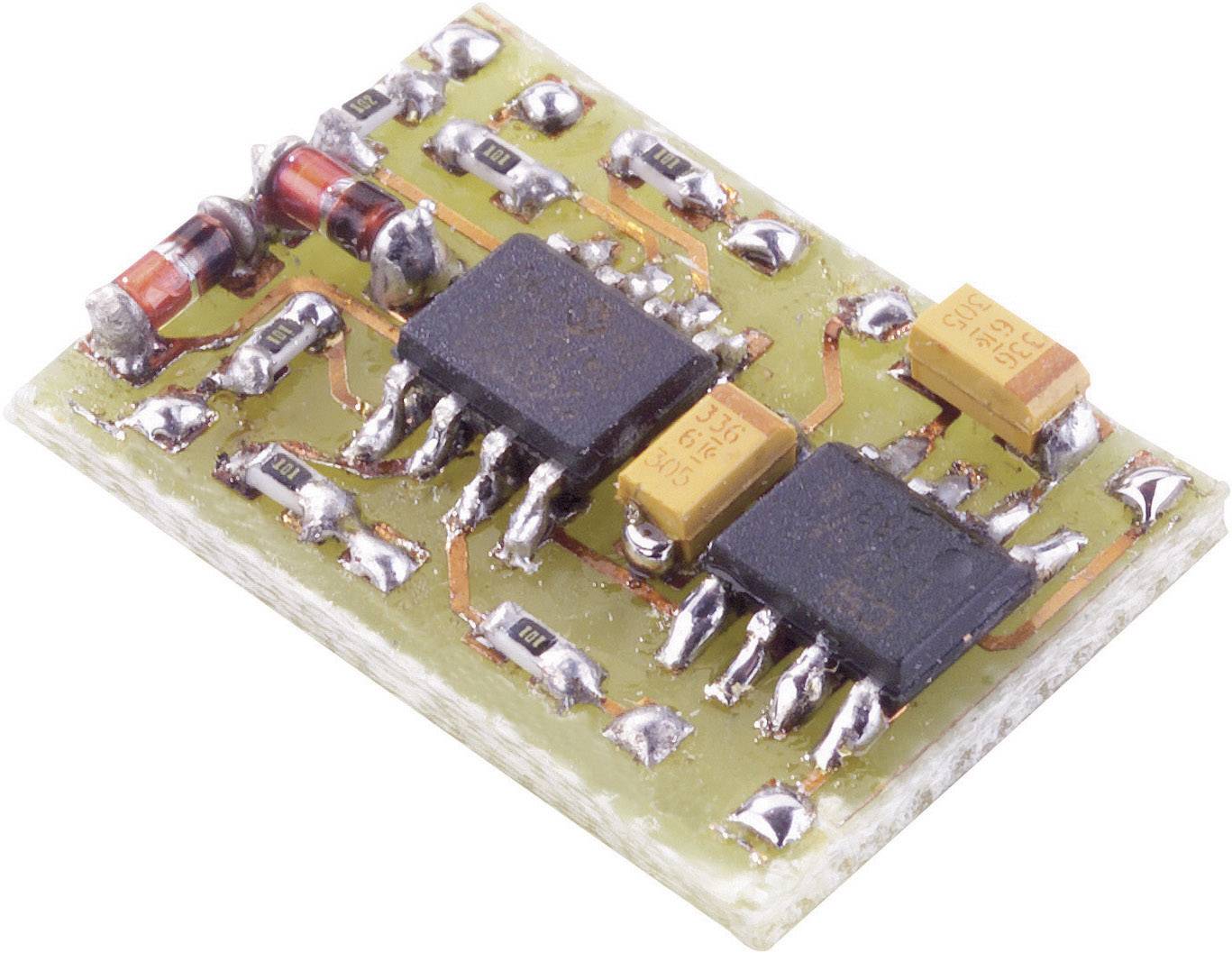

Emergency vehicles with blue light and siren, buses with warning lights on at the bus stop, lorries with beam on the country road - these are the real eye catchers at the Miniatur-Wunderland in Hamburg. Trying to convert vehicles for the Faller car system is, however, very difficult, as the vehicle batteries cannot supply sufficient voltage for white or blue LEDs or for standard electronics. With the FCS modules, vehicles can be converted for the Faller car system. The PCBs are connected directly to the vehicle battery. Various versions of the FCS module are available for different types of vehicle. Please order LEDs separately.
Features
- Connection possibilities for up to five blue or orange LEDs for the spare lighting and additional two white LEDs for the headlights
- The spare lights can be controlled by appropriate allocation of the circuit input optionally as double lightning or as change flashing signals. Current per output 10 mA
- Vehicle lighting FCS-1.
