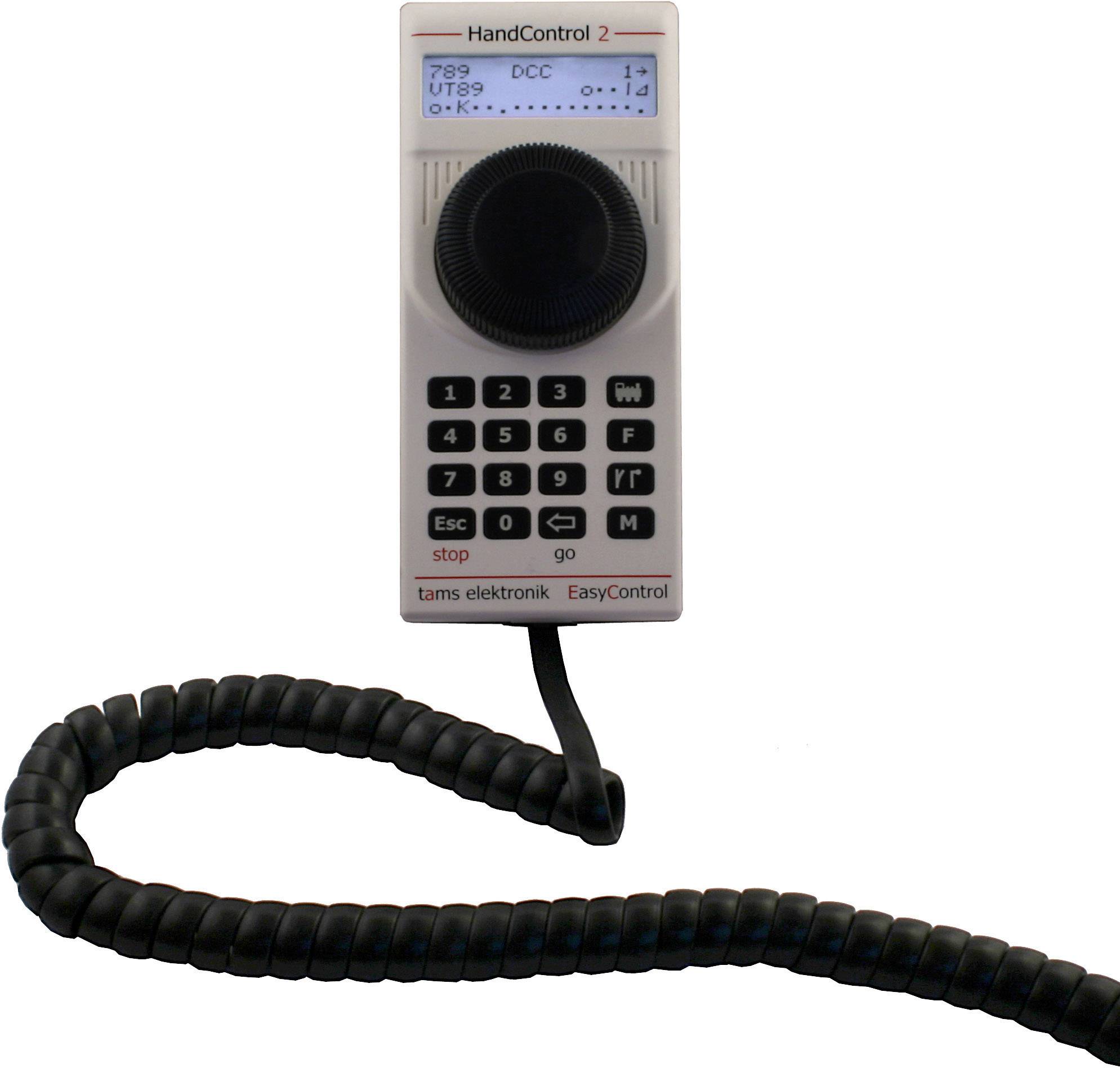

TAMS Elektronik 40-01197-01-C HandControl 2 - RGB Prefab component S88 3 m
EAN:
Part number:
Item no:
Highlights & Details
Hand Control 2
- Different background lighting
- Integtierter oscillation mode
- Manual control for easy control
Technical specifications
- Product type
HandControl 2 - RGB
- Type
Prefab component
- Digital format
S88
- Cable length
3 m
- Suitable for
s88-N signal decoder
- Length
62 mm
- Width
144 mm
- Height
21 mm
- Dim
(L x W x H) 62 x 144 x 21 mm
- Age category
15 years and over
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1711515 TAMS Elektronik 40-01197-01-C HandControl 2 - RGB Prefab component S88 3 m
Description
Areas of application
Suitable for operation with the digital central RedBox and master control. With the hand-control 2, the system parameters for the control easy digital control, and the decoder data in the locomotive database of the central unit can be entered.

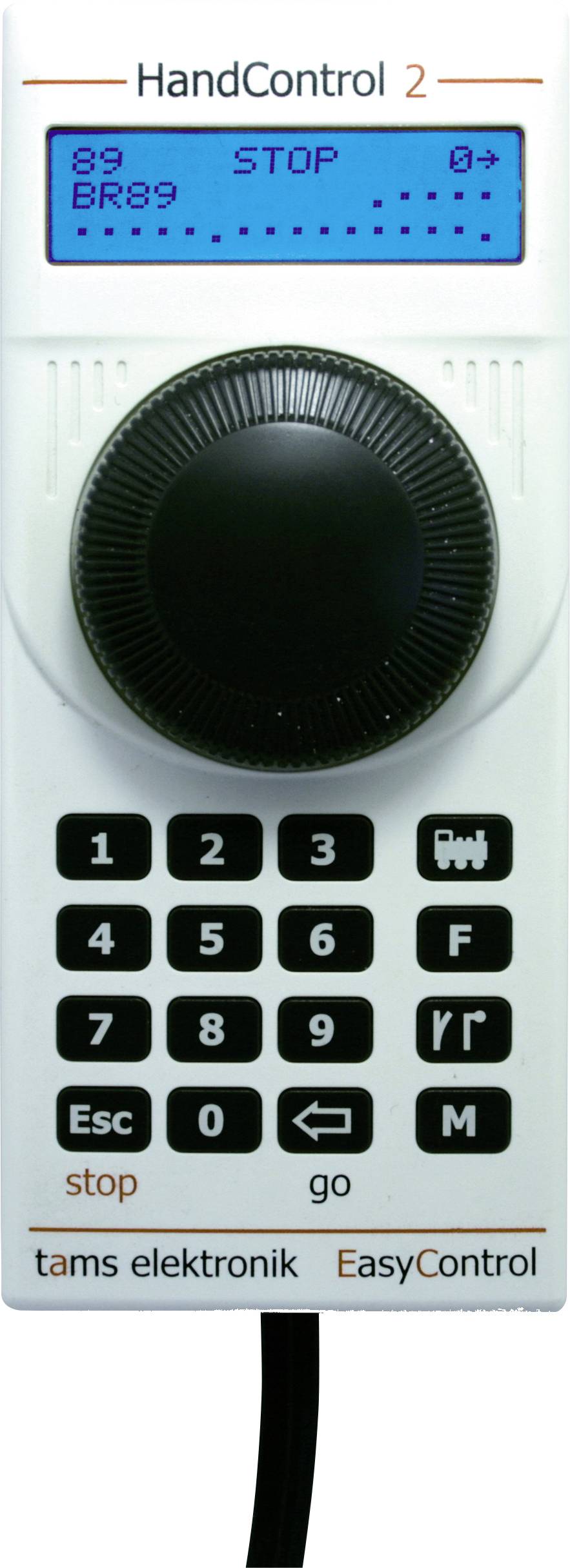

Display
The display shows the data of the vehicle is displayed: address, name, data format, current driving position, driving direction, as well as all active functions to F20. The different functions of the locomotives can be assigned to suitable graphic symbols from the built-in database (functional icons).
Operation
10 locomotives in the Speed Dial: using the key combination "M0", the previously active loc back and it can immediately switch and drive commands for this locomotive can be entered. 9 more (Favorite) locomotives can use the key combinations "M1" to "M9" permanently assigned and at any time quickly retrieved. 10 functions in the Access: The 10-key keypad enables the direct input of switching commands for the functions F0 to F9.
Built-in Shuttle mode
With the hand-control2, the built-in automatic pendulum movement must be configured and enabled. The contacts of the two endbahnhofe and, if provided an intermediate stop with 3 inputs of the first s88 module is connected to the Control Center (RedBox or master control) is connected. Tip: The S88 feedback decoder S 88-5 with integrated track occupancy detector is a cost-effective solution for this application (especially if the feedback of the s88-Bus otherwise not used).
This text is machine translated.
Suitable for operation with the digital central RedBox and master control. With the hand-control 2, the system parameters for the control easy digital control, and the decoder data in the locomotive database of the central unit can be entered.
Display
The display shows the data of the vehicle is displayed: address, name, data format, current driving position, driving direction, as well as all active functions to F20. The different functions of the locomotives can be assigned to suitable graphic symbols from the built-in database (functional icons).
Operation
10 locomotives in the Speed Dial: using the key combination "M0", the previously active loc back and it can immediately switch and drive commands for this locomotive can be entered. 9 more (Favorite) locomotives can use the key combinations "M1" to "M9" permanently assigned and at any time quickly retrieved. 10 functions in the Access: The 10-key keypad enables the direct input of switching commands for the functions F0 to F9.
Built-in Shuttle mode
With the hand-control2, the built-in automatic pendulum movement must be configured and enabled. The contacts of the two endbahnhofe and, if provided an intermediate stop with 3 inputs of the first s88 module is connected to the Control Center (RedBox or master control) is connected. Tip: The S88 feedback decoder S 88-5 with integrated track occupancy detector is a cost-effective solution for this application (especially if the feedback of the s88-Bus otherwise not used).
This text is machine translated.
Scope of delivery
- Hand-control
- Connection cable
- User manual.
