TAMS Elektronik 51-04116-01-C Schattenbahnhof control Prefab component Control hub
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Product type
Schattenbahnhof control
- Features
Control hub
- Type
Prefab component
- Output current
3 A
- Operating voltage
12-18 V DC/AC
- Age category
15 years and over
- Type
Basic module
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1492023 TAMS Elektronik 51-04116-01-C Schattenbahnhof control Prefab component Control hub
Description

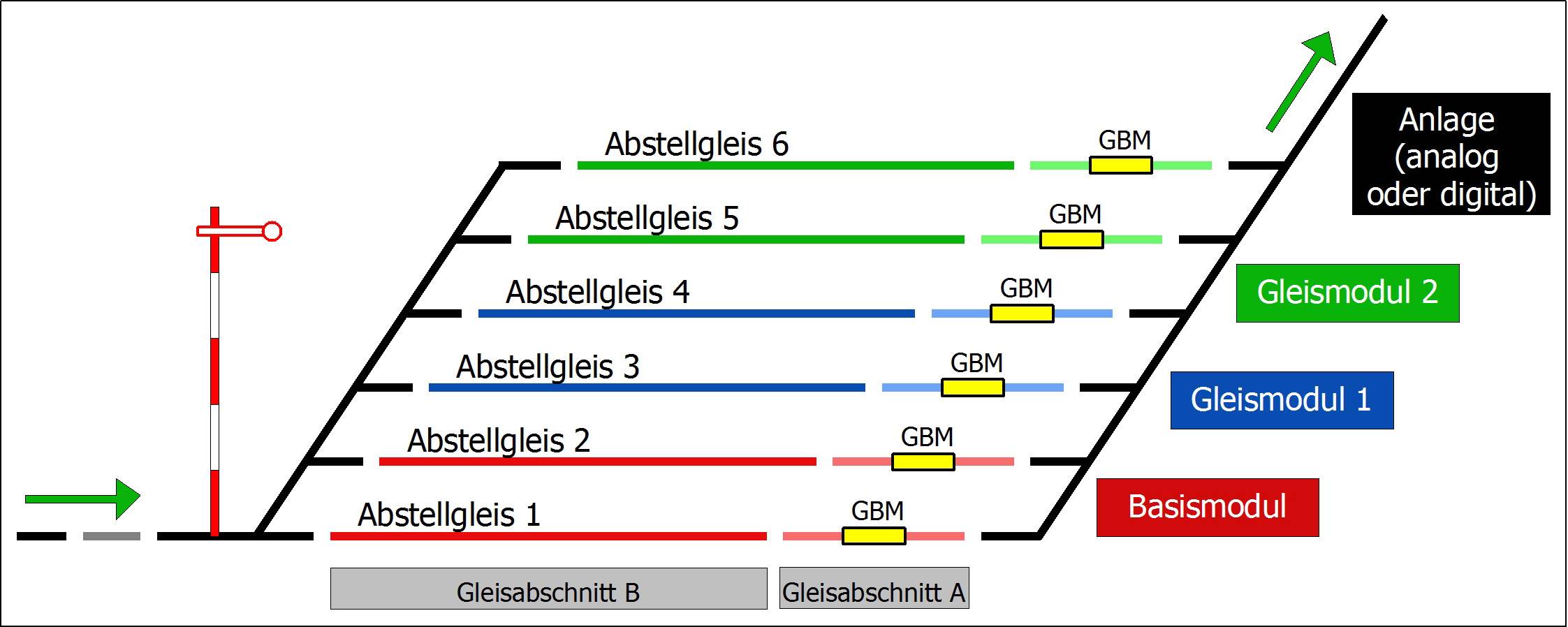

In the Shadow station arriving trains will automatically to the first free track. Is a siding free, the corresponding cross-switches HADES Before the departure point is a short section of the siding de-energized. As soon as the built-in track occupancy detector detects a current consumers, the retract point and the section after the run-in soft power supply. The train stops, regardless of whether the locomotive pulls or pushes.

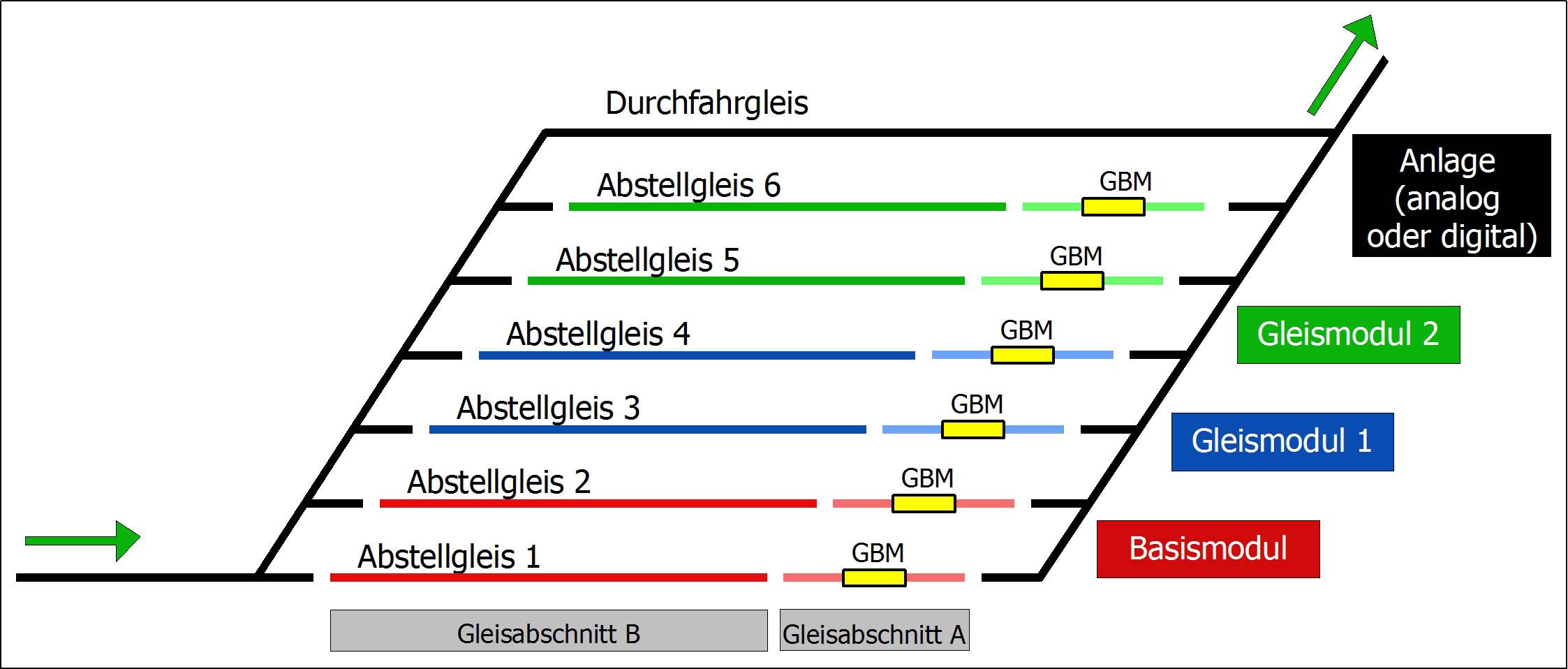

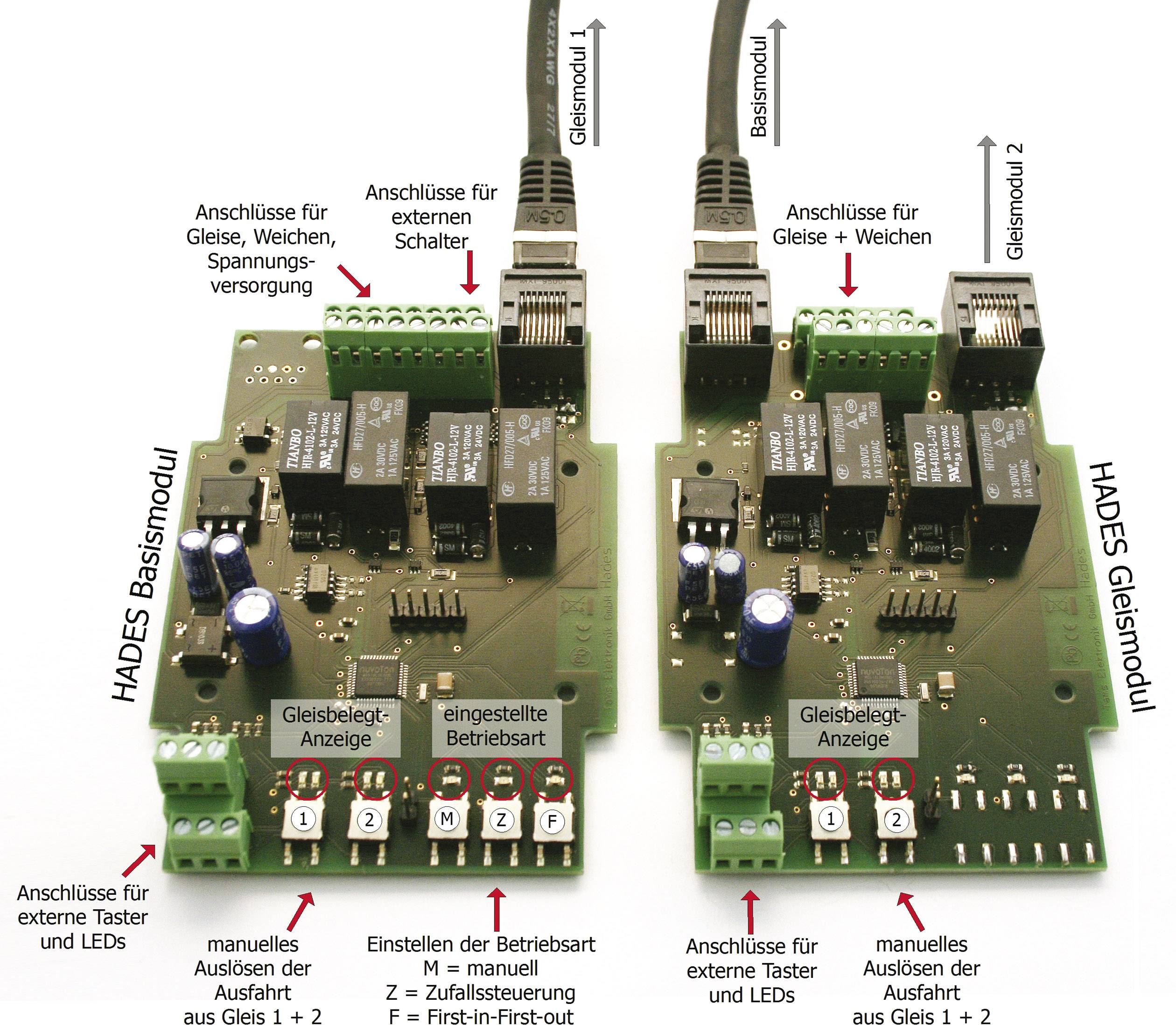

The base module monitors and controls the first two sidings. An additional track module monitors and controls 2 more sidings (max. 15 track modules can be connected).
In the event of a fault, the LEDs will flash and the exit of other trains is blocked. Only the track voltage failed, the operation after being switched on again with the last settings.
This text is machine translated.
The base module monitors and controls the first two sidings. An additional track module monitors and controls 2 more sidings (max. 15 track modules can be connected).
In the event of a fault, the LEDs will flash and the exit of other trains is blocked. Only the track voltage failed, the operation after being switched on again with the last settings.
This text is machine translated.
Features
- 2 to 32 holding tracks
- Odd Number of Sidings possible
- Operating modes: "First in - first out", Random control, manual activation via push button
- Connection of the modules with RJ-45 Patch Cables
- Block the exit via external switch for the basic module
- Max. Output current: 3000 mA per siding.
Hints
HADES represents the current for the switch during the run-in points. The power supply should, therefore, to the nominal size and the soft type.
For analogue model railway systems (DC and AC).
For digital model railway systems.
