Buy TAMS Elektronik 51-04156-01-C Schattenbahnhof control Prefab component Track controller

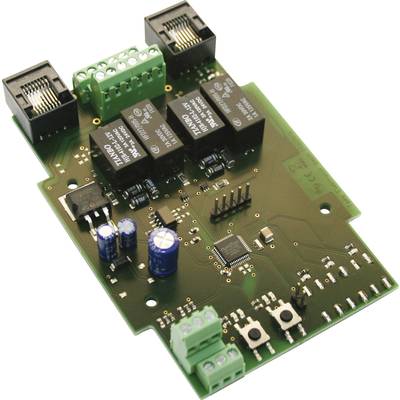

A green printed circuit board with multiple electronic components, including relays, capacitors, and connectors. Suitable for electronic circuits and control systems.

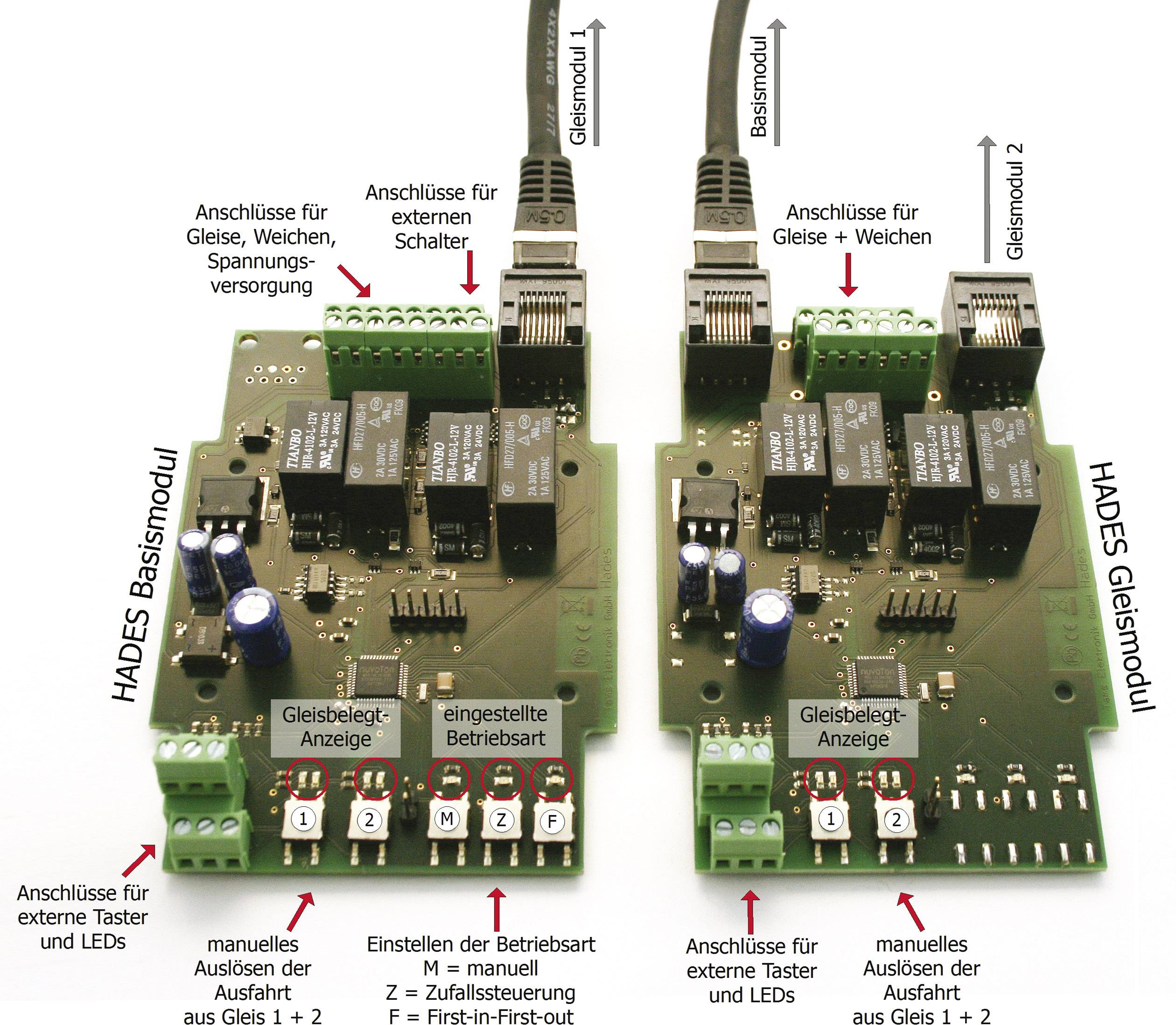

'Two electronic HADES modules on a white background. Left: Base module, showing connections for external switches. Right: Track module, displaying settings for operating mode and LEDs.'

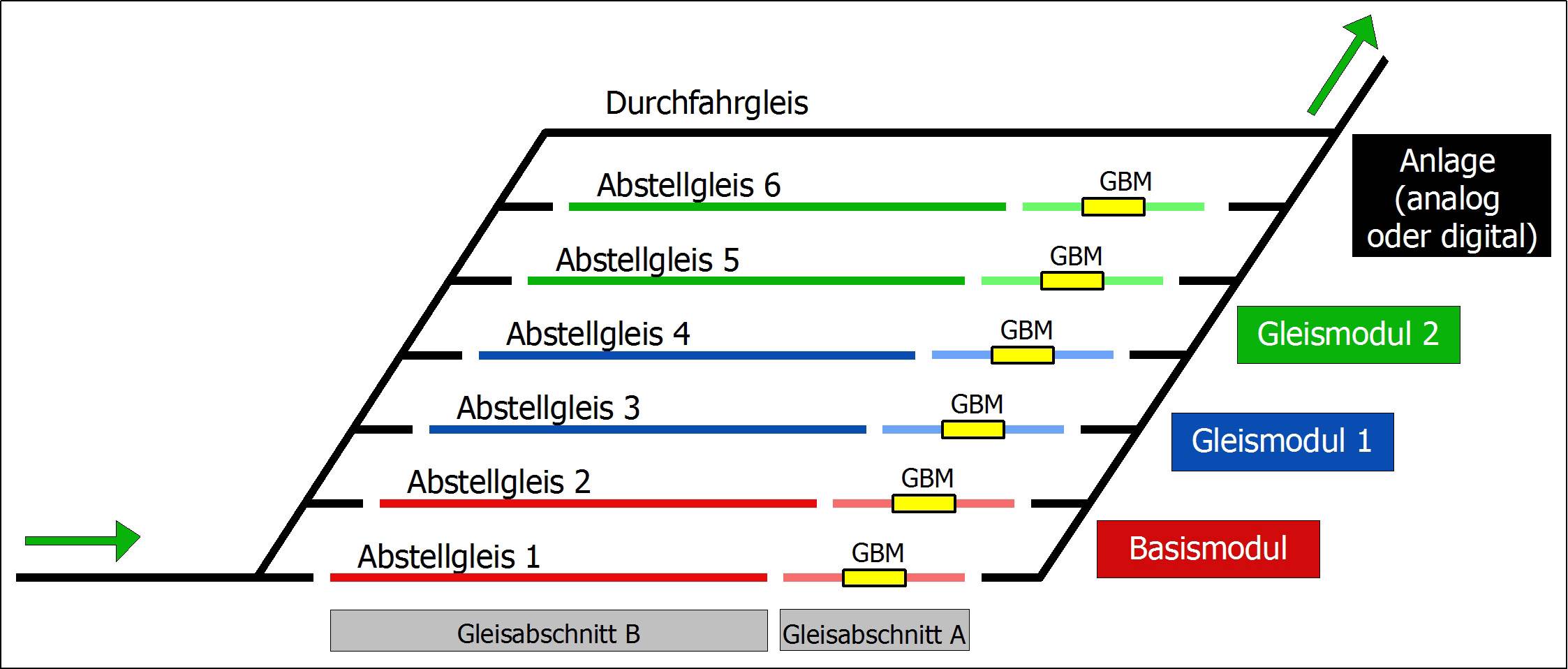

Diagram of a train stabling facility with six stabling tracks, GBM facilities, two track modules and a base module. Arrows indicate the direction of travel.

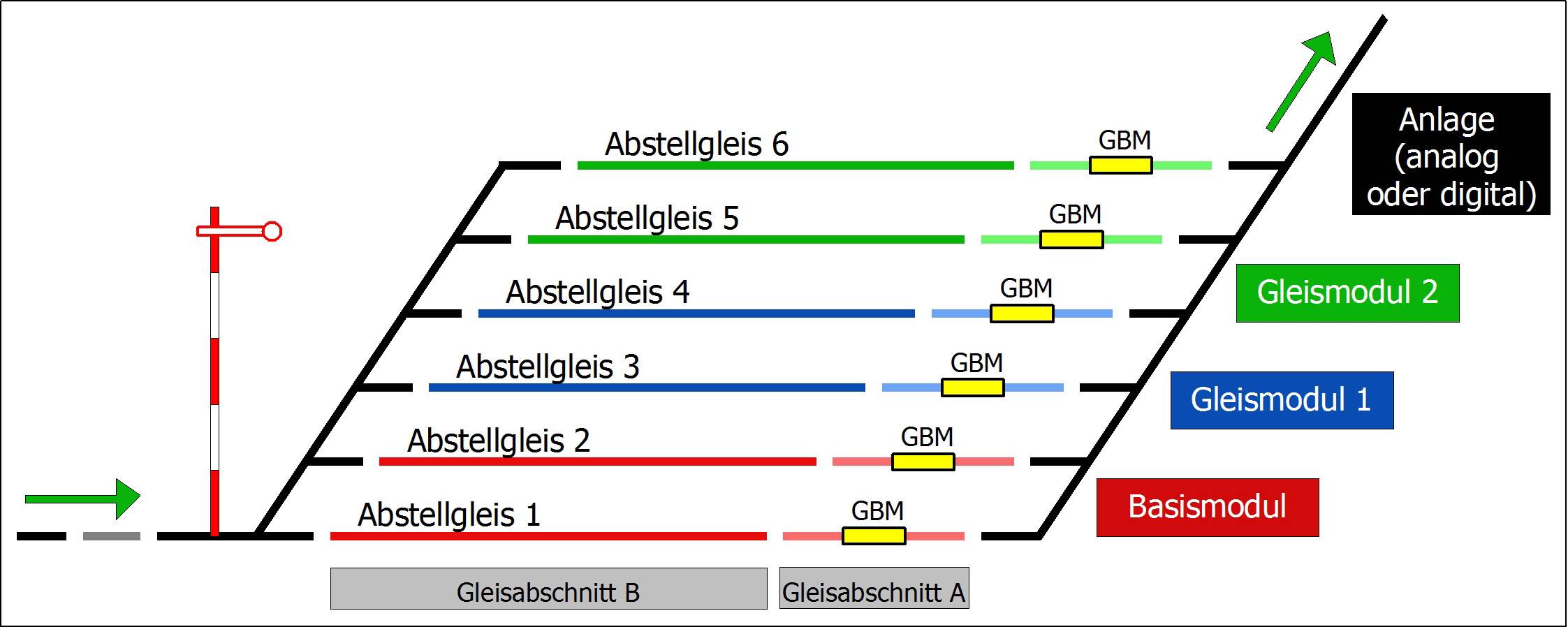

Diagram of a railway station with six storage tracks, track modules, a base module, and switchgear. Track sections A and B marked.

1/4

Fast track dispatch on Fri, 2 Oct

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Schattenbahnhof control

Features: Track controller

Type: Prefab component

Output current: 3 A

Operating voltage: 12-18 V DC/AC

Age category: 15 years and over

Type: Track module

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1492024 TAMS Elektronik 51-04156-01-C Schattenbahnhof control Prefab component Track controller

Description

In the Shadow station arriving trains will automatically to the first free track. Is a siding free, the corresponding cross-switches HADES Before the departure point is a short section of the siding de-energized. As soon as the built-in track occupancy detector detects a current consumers, the retract point and the section after the run-in soft power supply. The train stops, regardless of whether the locomotive pulls or pushes.

The base module monitors and controls the first two sidings. An additional track module monitors and controls 2 more sidings (max. 15 track modules can be connected).

In the event of a fault, the LEDs will flash and the exit of other trains is blocked. Only the track voltage failed, the operation after being switched on again with the last settings.

This text is machine translated.

Features

2 to 32 holding tracks
Odd Number of Sidings possible
Operating modes: "First in - first out", Random control, manual activation via push button
Connection of the modules with RJ-45 Patch Cables
Block the exit via external switch for the basic module
Max. Output current: 3000 mA per siding.
