TAMS Elektronik 51-04157-01 Schattenbahnhof control Accessories for Hades track controller
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 7 Piece(s) available
Highlights & Details
TAMS Elektronik Hades track controller
- Expansion module for the HADES shadow station control.
- For monitoring and control of max. 2 additional sidings.
- Maximum number of additional track modules in a shadow station control: 15.
Technical specifications
- Supply voltage for the circuit 12 - 18 volt DC or AC voltage. Note: HADES provides the power for switching the drive-in points. The power supply should therefore be matched to the nominal size and the switch type.
- Supply of the tracks in the Shadow station: Via the analogue travel transformer or the digital track voltage
- Max. Output current 3,000 mA per siding
- Additional outputs: 2 for external indicator LEDs, supply voltage 5 V constant
- Additional inputs: 2 for external extension switches, 1 for external switches
- Extension time: 2 to 20 seconds (can be set in 1 second-steps)
- Board dimensions: approx. 74 x 105 mm.
- Dimensions including housing: 100 x 112 x 35 mm
- Product type
Schattenbahnhof control
- Features
for Hades track controller
- Type
Accessories
- Length
100 mm
- Width
112 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 112 x 35 mm
- Age category
15 years and over
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775677 TAMS Elektronik 51-04157-01 Schattenbahnhof control Accessories for Hades track controller
Description
Trains arriving at the Shadow station are automatically routed to the first free track. If a siding is free, HADES switches the respective switch. A short section of the stop track is de-energized in front of the exit point. As soon as the integrated track-busy indicator detects a power consumer, the entry point is set and the section after the drive-in point is switched off. The train stops, regardless of whether the locomotive pulls or pushes.
The basic module monitors and controls the first two sidings. An additional track module monitors and controls 2 further sidings (max. 15 track modules can be connected).
In the event of a fault, the LEDs flash and the exit of other trains is blocked. If only the track voltage fails, the operation continues with the last settings after being switched on again.
· 2 to 32 sidings
· Odd number of sidings possible
· Modes: "First-in-First-out", Random control, Manual triggering via push-button
· Connection of the modules with RJ-45 patch cables
· Block the exit via an external switch at the base module
· Max. Output current 3000 mA per siding
This text is machine translated.
The basic module monitors and controls the first two sidings. An additional track module monitors and controls 2 further sidings (max. 15 track modules can be connected).
In the event of a fault, the LEDs flash and the exit of other trains is blocked. If only the track voltage fails, the operation continues with the last settings after being switched on again.
· 2 to 32 sidings
· Odd number of sidings possible
· Modes: "First-in-First-out", Random control, Manual triggering via push-button
· Connection of the modules with RJ-45 patch cables
· Block the exit via an external switch at the base module
· Max. Output current 3000 mA per siding
This text is machine translated.
Scope of delivery

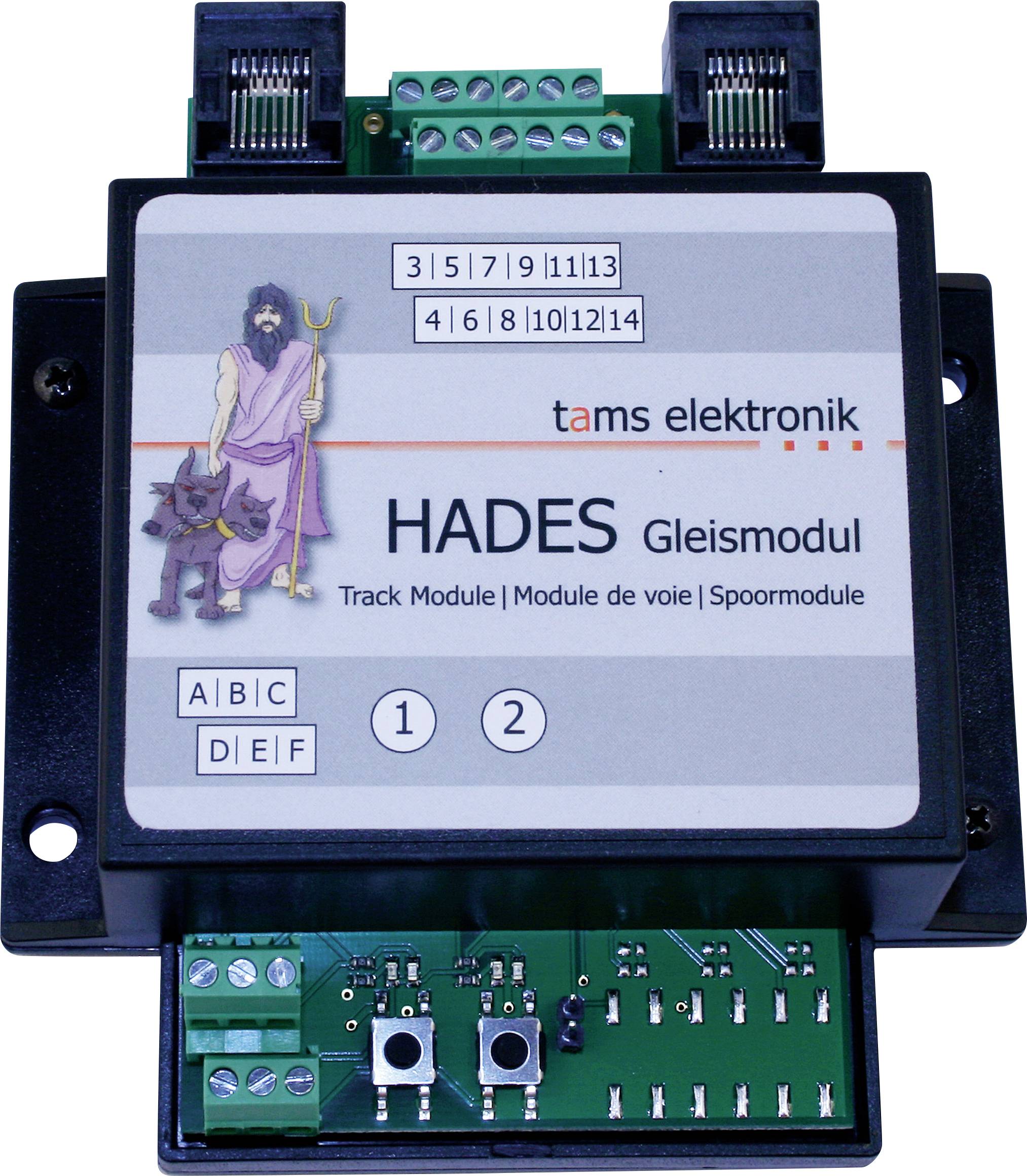

- 1 HADES track module, design: Finished device in the casing
- 1 jumpers
- 1 patch cables with RJ-45 connectors (length 0.5 m)
Hints
Notes
HADES provides the power for switching the drive-in points. The power supply should therefore be matched to the nominal size and the switch type.
For analogue model railway systems (DC and AC).
For digital model railway systems.
