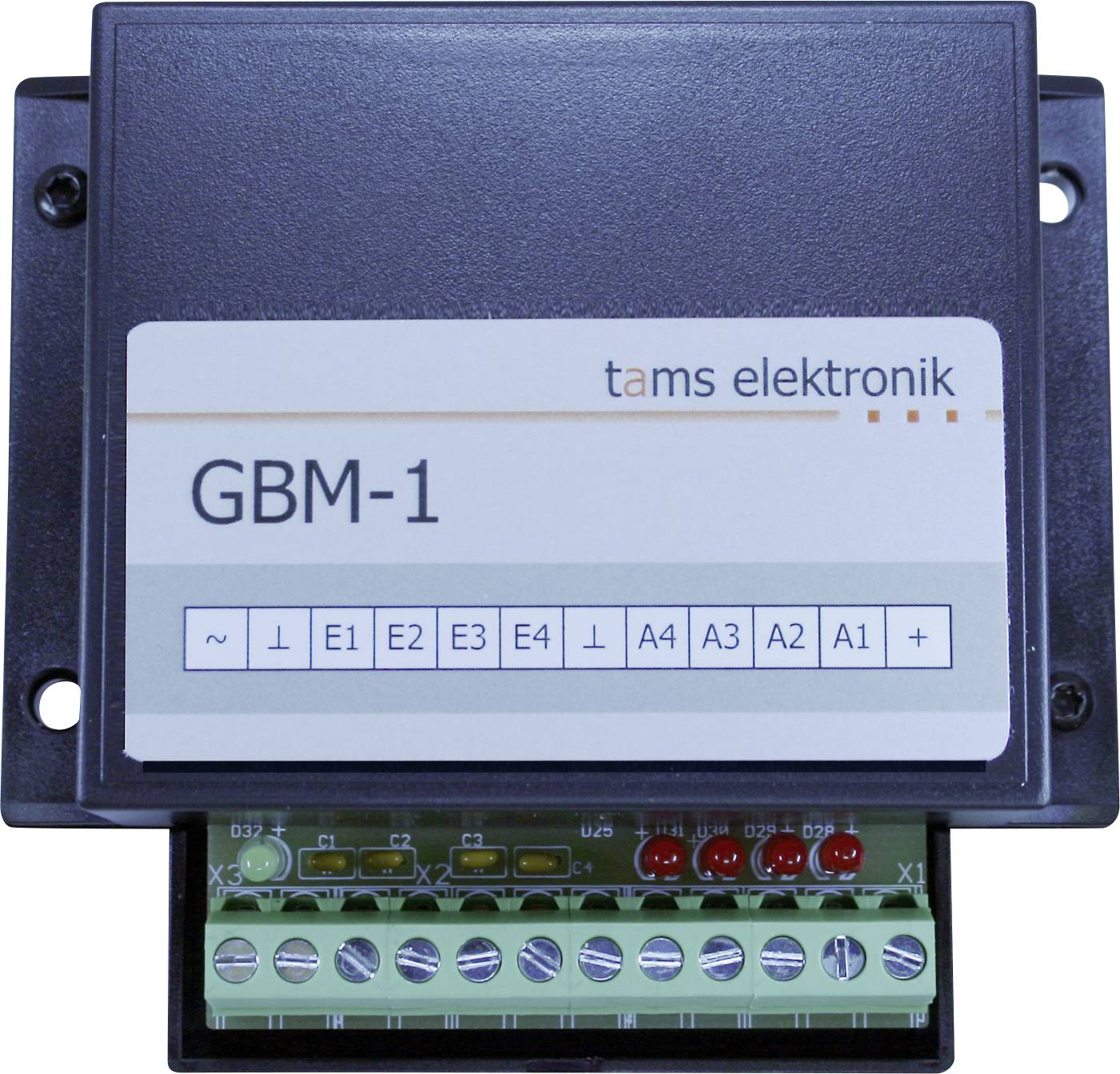

TAMS Elektronik track-busy reporter GBM-1
- Optimised for use in analogue systems
- Direct connection of consumers up to 500 mA
Technical specifications
- Number of monitored track sections: 4
- Evaluation of the document messages: Against the mass of the downstream components
- Inputs and outputs:
- - 4 inputs for connecting monitored track sections
- - 4 outputs for connection of external indicator LEDs or lamps, secondary circuits or digital feedback inputs
- Power supply 12 - 18 volt direct or alternating voltage. IMPORTANT! The GBM-1 must not be powered by transformers or digital boosters providing traction power.
- max. Current per track section 1,200 mA
- max. Current per output 500 mA
- max. Total output current 2,000 mA
- Sensitivity: Min. 0.1 A (adjustable)
- Board dimensions 72 x 82 mm
- Dimensions including housing: 100 x 90 x 35 mm
- Product type
Track circuit
- Type
Accessories
- Output current
500 mA
- Length
100 mm
- Width
90 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 90 x 35 mm
- Age category
15 years and over
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775680 TAMS Elektronik 52-01017-01 Track circuit Accessories
Description
For use in analogue DC or AC systems
- High sensitivity (1mA). In DC systems, the GBM-1 also detects vehicles whose axles have been painted with resistive paint and which otherwise do not consume any power.
- Detection of vehicles independent of the direction of travel with which they travel into a section of the track (in analog DC systems)
- Four outputs each with 500 mA for direct connection of many consumers
Usage possibilities:
- Visualization of the occupied track sections on integrated LEDS and optionally on external LEDs or lamps (e.g. in a control panel)
- Direct connection of downstream consumers (up to 500 mA), which are to be switched on and off depending on the occupied status of the track sections
- Part of an automated control, e.g. block point control
Use in digital systems
- It is possible to connect digital detectors (e.g. s88 feedback modules) that switch against ground
- WARNING! However, due to the high sensitivity of the GBM-1, interference voltages from the digital system can cause false alarms.
- Better suited for use in digital systems: GBM‑8.2 track occupancy detector.
