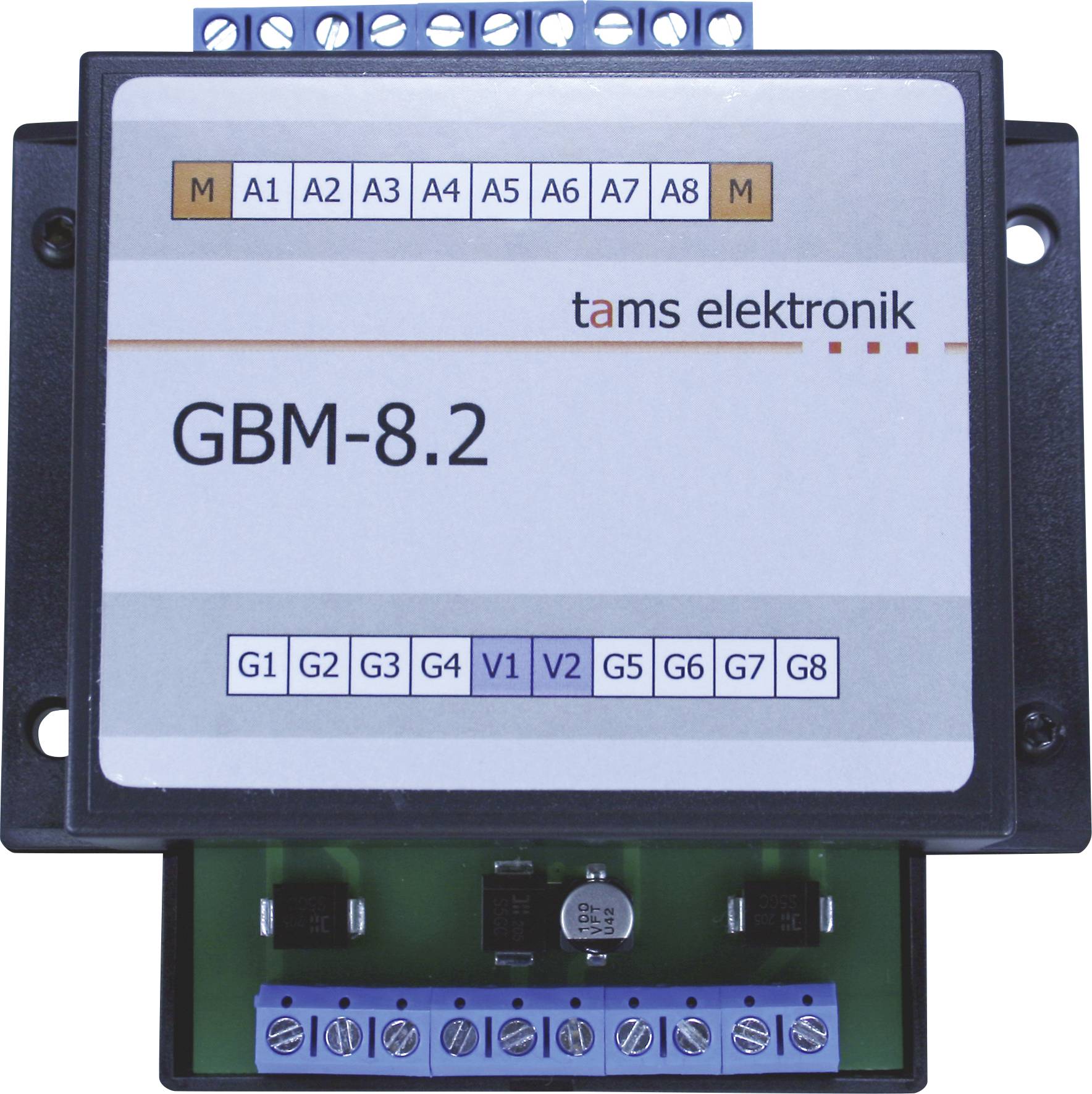

TAMS Elektronik track-busy reporter GBM-8.2
- Inputs and outputs galvanically separated
- Suitable for all standard sizes
Technical specifications
- Number of monitored track sections: 8
- Evaluation of the document messages: Against the mass of the downstream components
- Galvanic isolation: Between inputs and outputs
- Inputs and outputs:
- - 8 inputs for connecting monitored track sections
- - 8 outputs for connecting the inputs of downstream detectors and/or LEDs to display the busy states
- Power supply: Via the rails. Note: All track sections must lie in a booster circuit or be supplied via a common travel transformer. A common drive transformer / a booster circuit
- max. Current in the track sections: 6 A per track section
- max. Current per output 500 mA
- Sensitivity: 1 mA … 15 mA. Adjustment at a trim potentiometer separately for each of the 8 track sections
- Board dimensions 63 x 97 mm
- Dimensions including housing: 100 x 98 x 35 mm
- Product type
Track circuit
- Type
Accessories
- Output current
500 mA
- Length
100 mm
- Width
98 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 98 x 35 mm
- Age category
15 years and over
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775681 TAMS Elektronik 52-01187-01 Track circuit Accessories
Description
The "correct" sensitivity at which a track occupancy indicator detects a current consumer in a section depends on several factors: For example, if vehicles with a resistive paint coating are to trigger a message, a very high sensitivity is necessary. In digital systems, however, high sensitivity can become a problem if interference voltages from the digital system cause false alarms.
On the GBM-8.2, the sensitivity for each detection section can be adjusted separately on a trim potentiometer and adapted to individual requirements.
Areas of application:
- Plants of all nominal sizes (up to 6 A per section of track)
- Digital systems (independent of format) in combination with feedback sensors that read in ground contacts (e.g. s88)
- Analog systems (direct or alternating current). Note: As a matter of principle, the GBM-8.2 in analogue DC systems can only detect vehicles that move into the monitored track section from a direction of travel.
This text is machine translated.
On the GBM-8.2, the sensitivity for each detection section can be adjusted separately on a trim potentiometer and adapted to individual requirements.
Areas of application:
- Plants of all nominal sizes (up to 6 A per section of track)
- Digital systems (independent of format) in combination with feedback sensors that read in ground contacts (e.g. s88)
- Analog systems (direct or alternating current). Note: As a matter of principle, the GBM-8.2 in analogue DC systems can only detect vehicles that move into the monitored track section from a direction of travel.
This text is machine translated.
Scope of delivery
- 1 track occupancy detector GBM-8.2, design: Finished device in the housing
