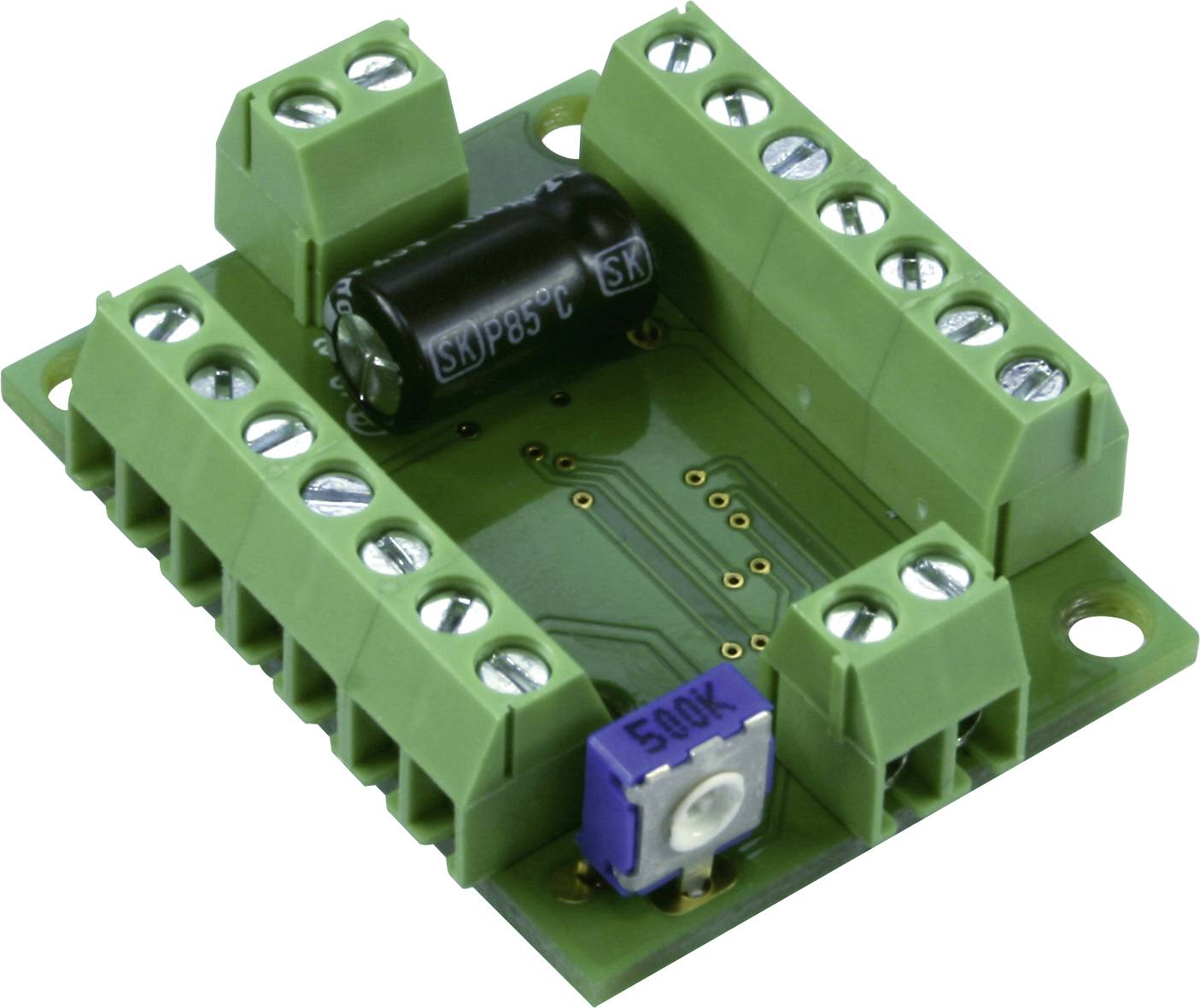

Green electronic circuit with multiple terminal blocks, a black capacitor labelled 'SKP85°C' and a blue potentiometer marked '500K'.

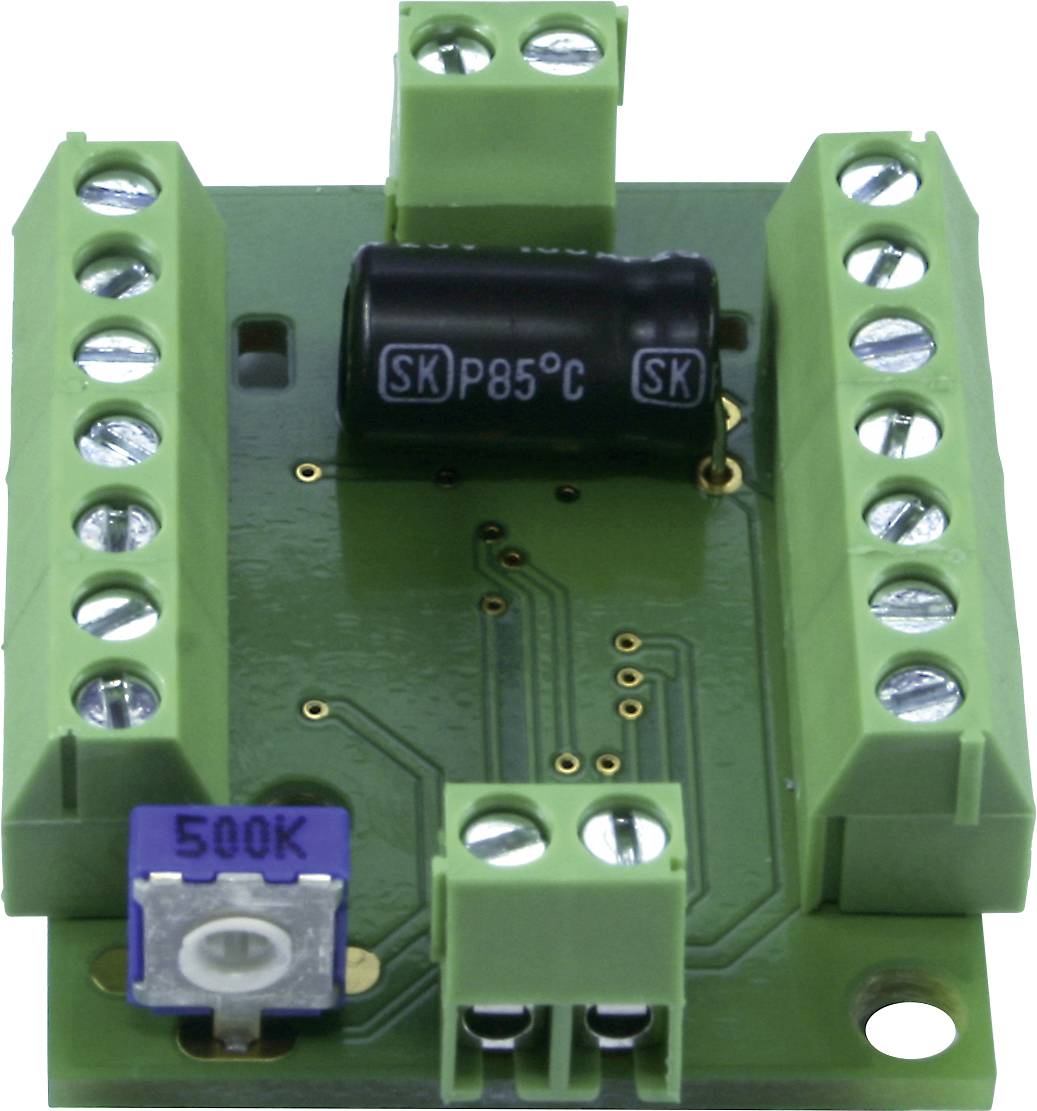

Green electronic circuit board with screw terminals and a black capacitor. Front view of a mounting board.

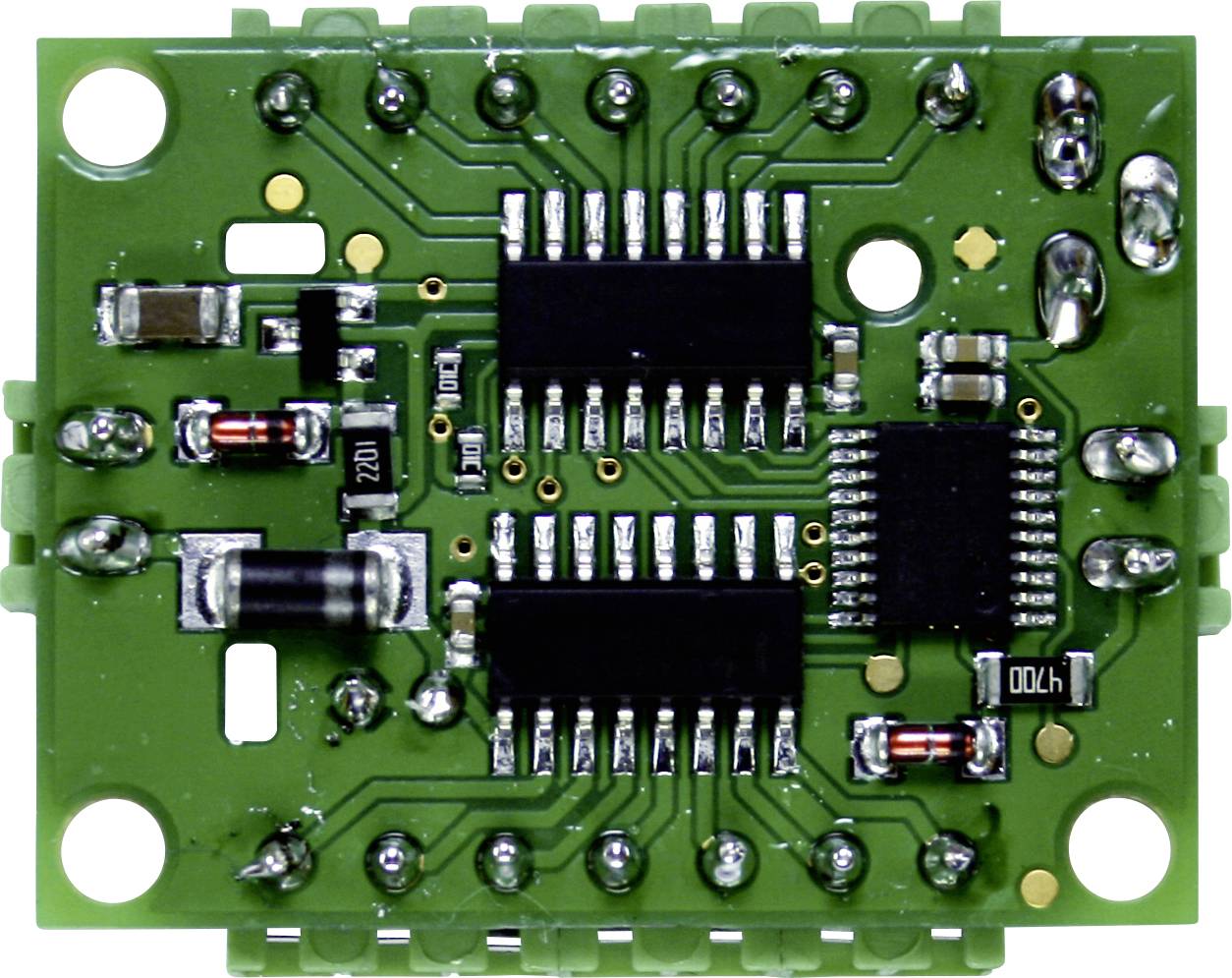

Green electronic circuit board with integrated circuits, resistors, and capacitors. Primarily used for technological applications.

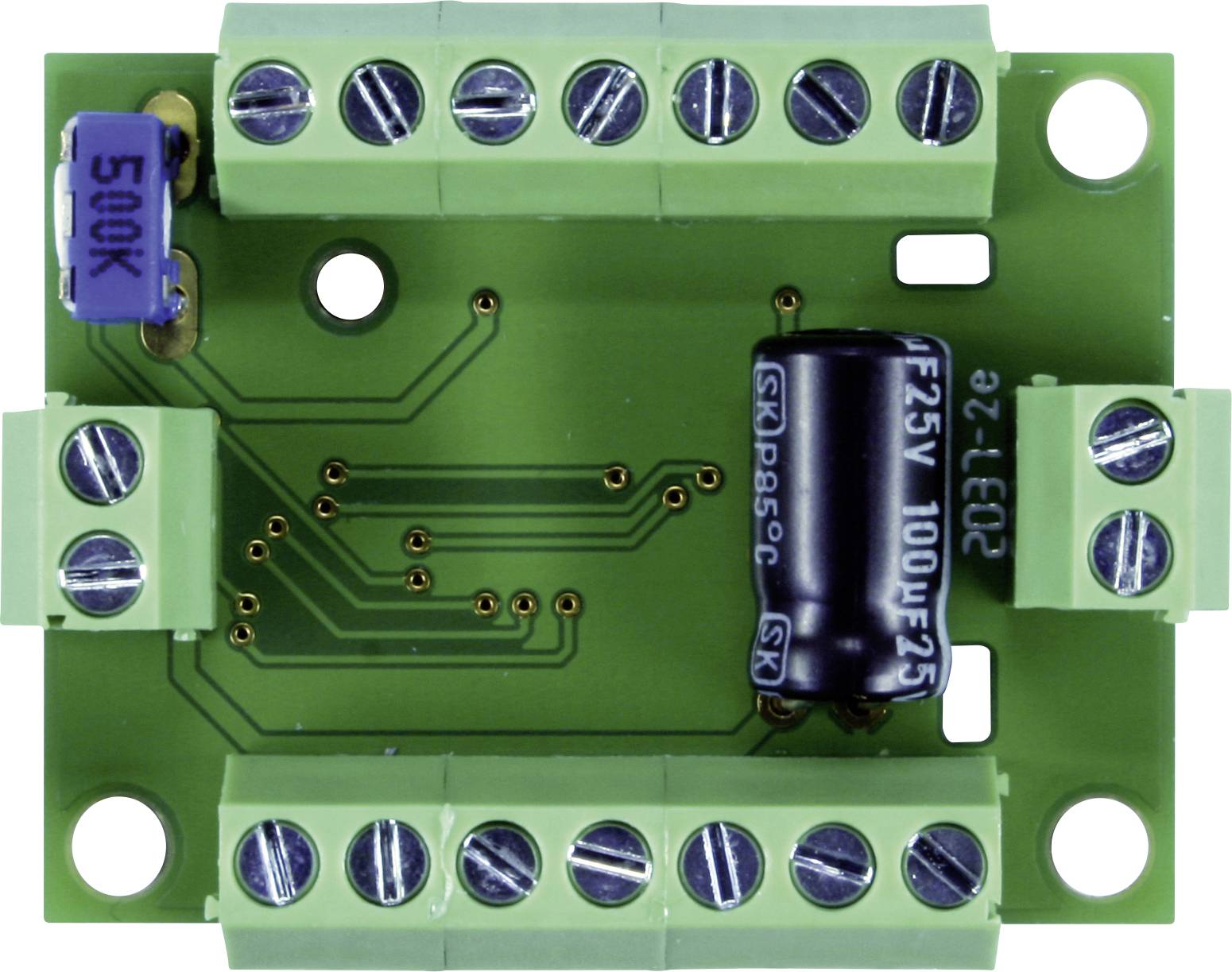

Green electronic circuit board with multiple terminal rows, a capacitor (100μF, 25V) and a blue-marked resistor (500K).

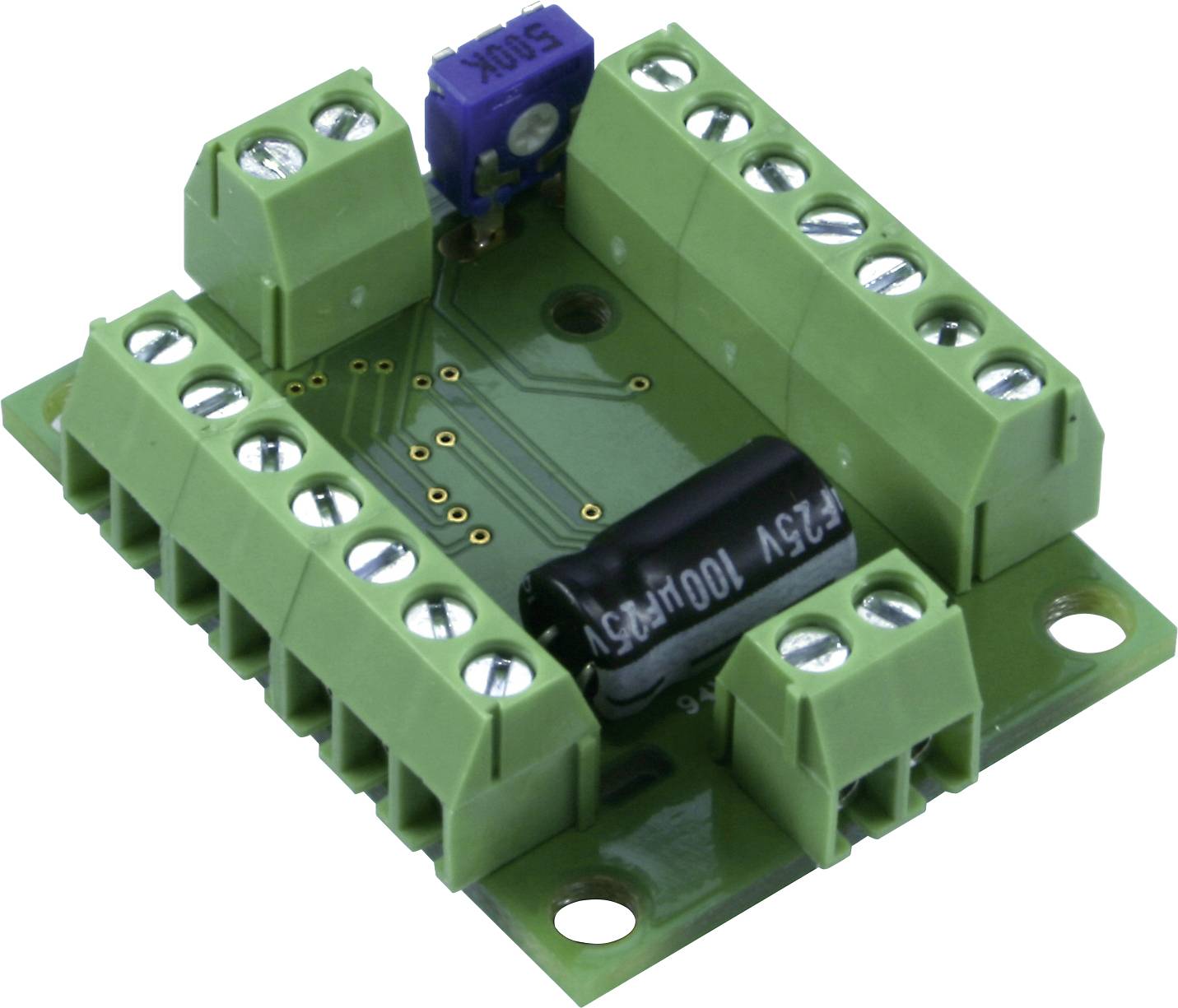

'Electronic module with multiple green terminal blocks and a black capacitor on a circuit board.'

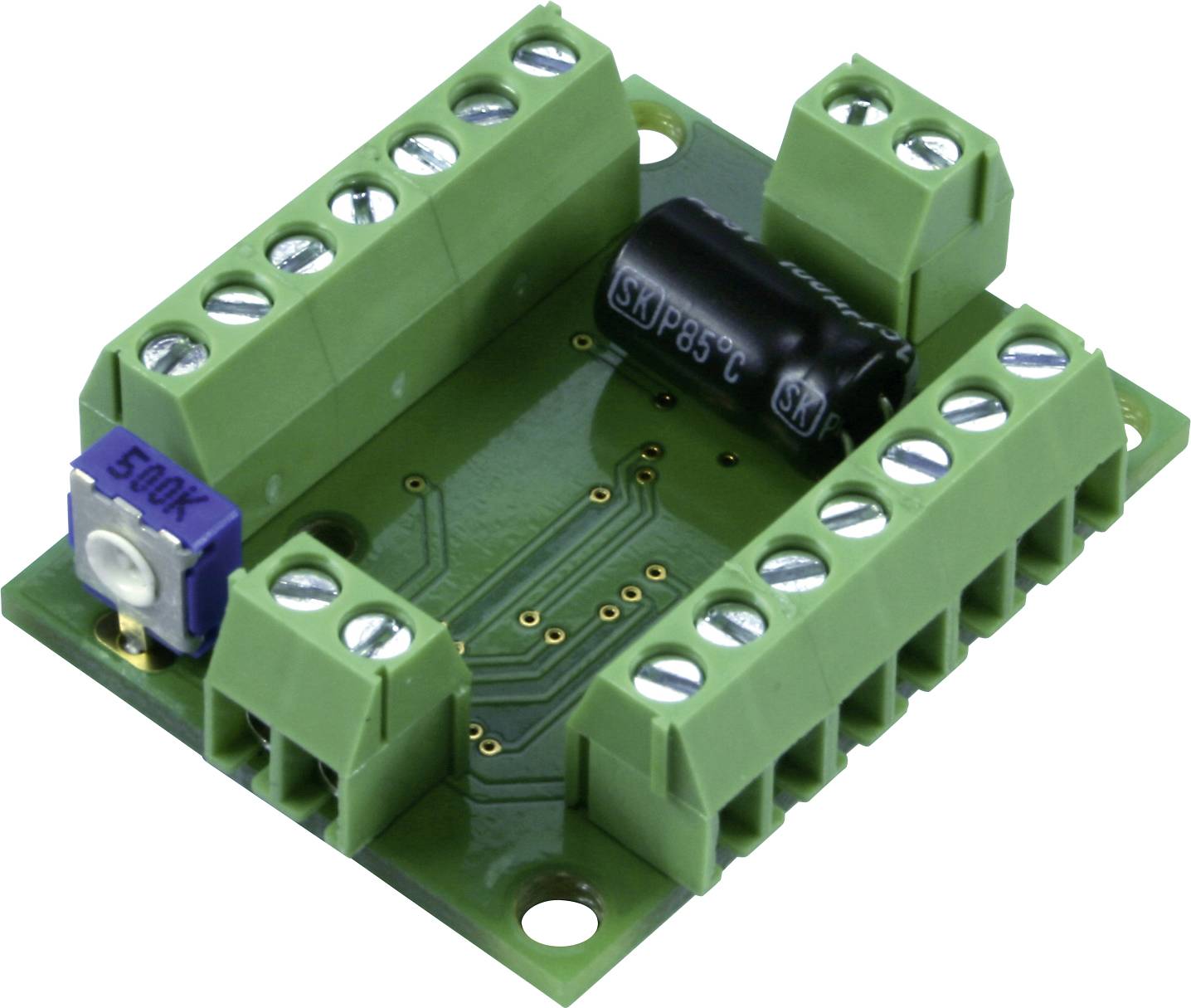

'Green electronic circuit board with multiple connectors, a black cylindrical capacitor, and a blue component labelled "500K".'

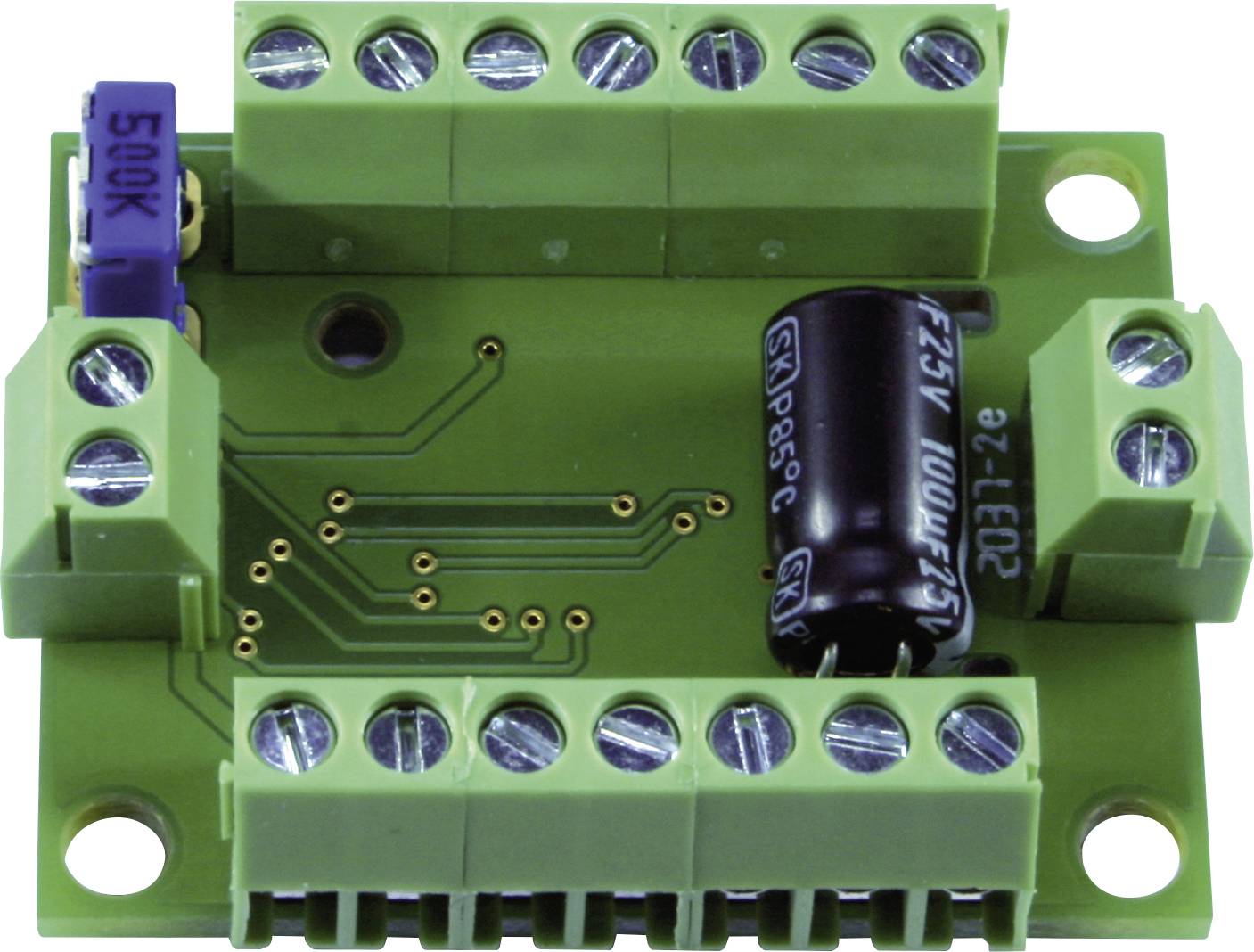

A green printed circuit board with several green terminal blocks, a blue potentiometer marked '500K' and a black capacitor.

1/8

Fast track dispatch on Tue, 6 Oct

13 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.96 / piece)

€ 15.96

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Offices/commercial property

Type: Assembly kit

Age category: 15 years and over

Type: Assembly Kit

Manufacturer part #: 53-04035-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373277 TAMS Elektronik 53-04035-01-C BSA LC-NG-03 Flashing control circuits Offices/commercial property 1 pc(s)

Warranty Terms

Warranty Terms 2373277 TAMS Elektronik 53-04035-01-C BSA LC-NG-03 Flashing control circuits Offices/commercial property 1 pc(s)

Description

For controlling the illuminated advertising and interior lighting of shops, offices and the communal staircase according to typical daily procedures. 4 different variants for controlling the outputs for the illuminated advertising.

This text is machine translated.

Features

14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors), of which:
8 outlets for lighting in different offices and shops
1 exit for the shared staircase and 5 outputs for illuminated buildings
Subordinated circuits can be switched on and off together with the individual lighting
Maximal total current: 1,000 mA
Use of the switching input: Setting the variant for the illuminated advertising (one of four)
Settings on the trim potentiometer: Setting the time factor (approx. 1 to 12 minutes / daily sequence)
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
