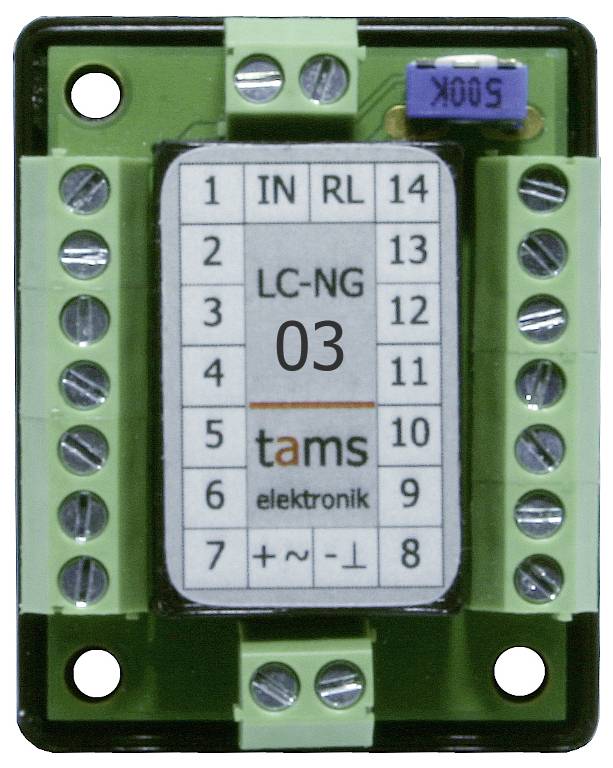

TAMS Elektronik 53-04037-01 LC-NG-03 Lighting controller Offices/commercial property Green 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.82
€ 20.18
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Only 8 Piece(s) available
Highlights & Details
TAMS Elektronik LC-NG-03 Lighting Control "Office and Business Houses"
- For a business house with illuminated advertising
Technical specifications
- 14 outputs (max. 200 mA each) for the connection of small lamps or LEDs (via series resistors). Of these 8 outputs for the lighting in the different offices and shops, 1 output for the common staircase and 5 outputs for illuminated advertising. Secondary circuits can be switched on and off together with the individual lights.
- Maximal total current: 1,000 mA
- Using the switching input: Setting the variant for the illuminated advertising (one of four)
- Settings on the trim potentiometer: Adjustment of the time factor (approx. 1 to 12 minutes / day schedule)
- 12-18 volt alternating voltage or 10-22 VDC
- Size
Universal
- Product type
Lighting controller
- Functions
Offices/commercial property
- Type
Accessories
- Factory colour
Green
- Length
39 mm
- Width
31 mm
- Height
13 mm
- Dim
(L x W x H) 39 x 31 x 13 mm
- Age category
15 years and over
- Manufacturer part #
53-04037-01
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775684 TAMS Elektronik 53-04037-01 LC-NG-03 Lighting controller Offices/commercial property Green 1 pc(s)
Description
For controlling the illuminated advertisement and interior lighting of shops, offices and the common staircase according to typical daily routine. 4 different variants for controlling the outputs for the illuminated advertisement
This text is machine translated.
This text is machine translated.
Scope of delivery
- Light Computer Next Generation LC-NG-3, design: Finished device in the housing
Hints
Lamps and LEDs are not included in the delivery.
