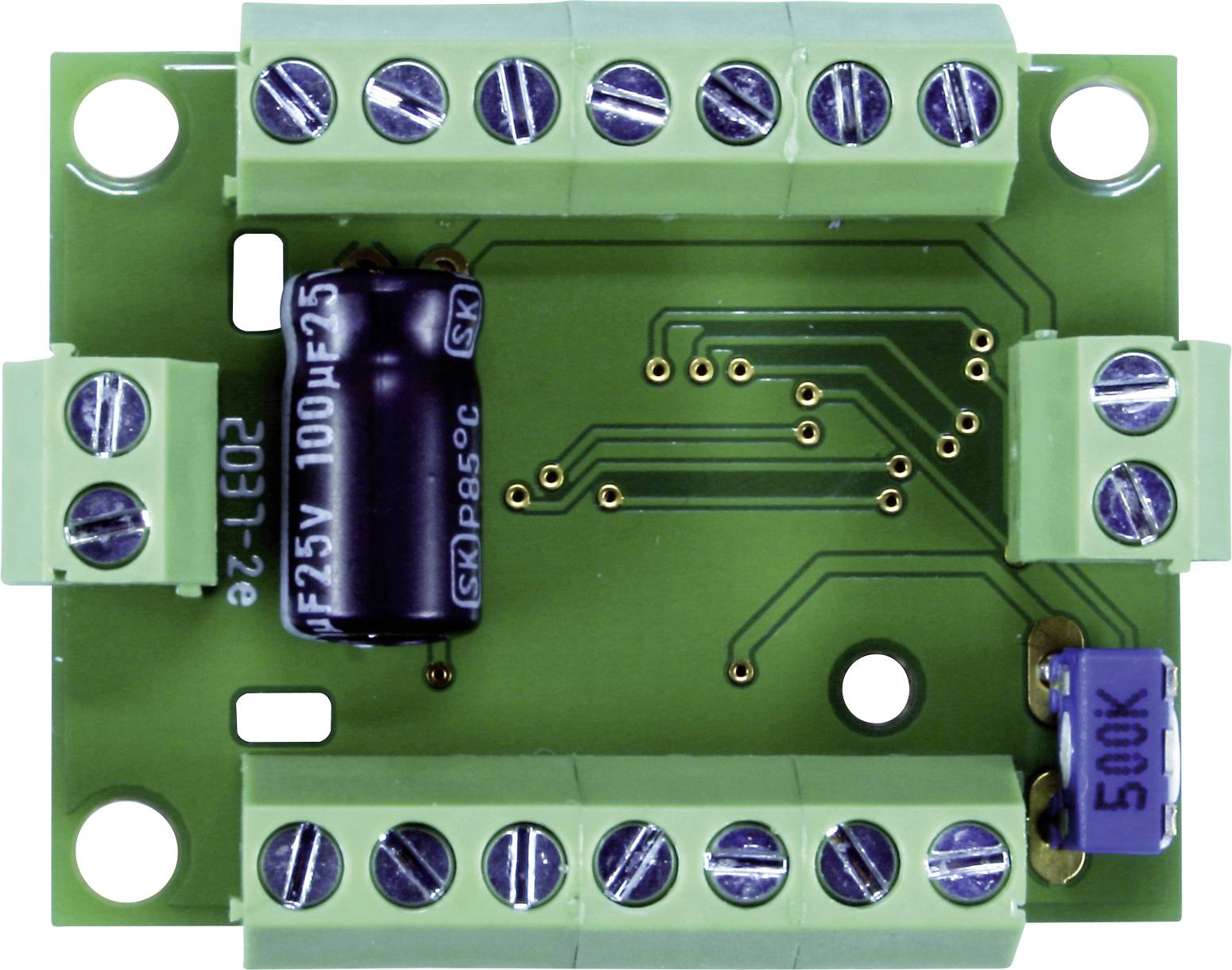

Green electrical circuit with multiple terminal screws, a black capacitor, and a blue potentiometer screw located bottom right.

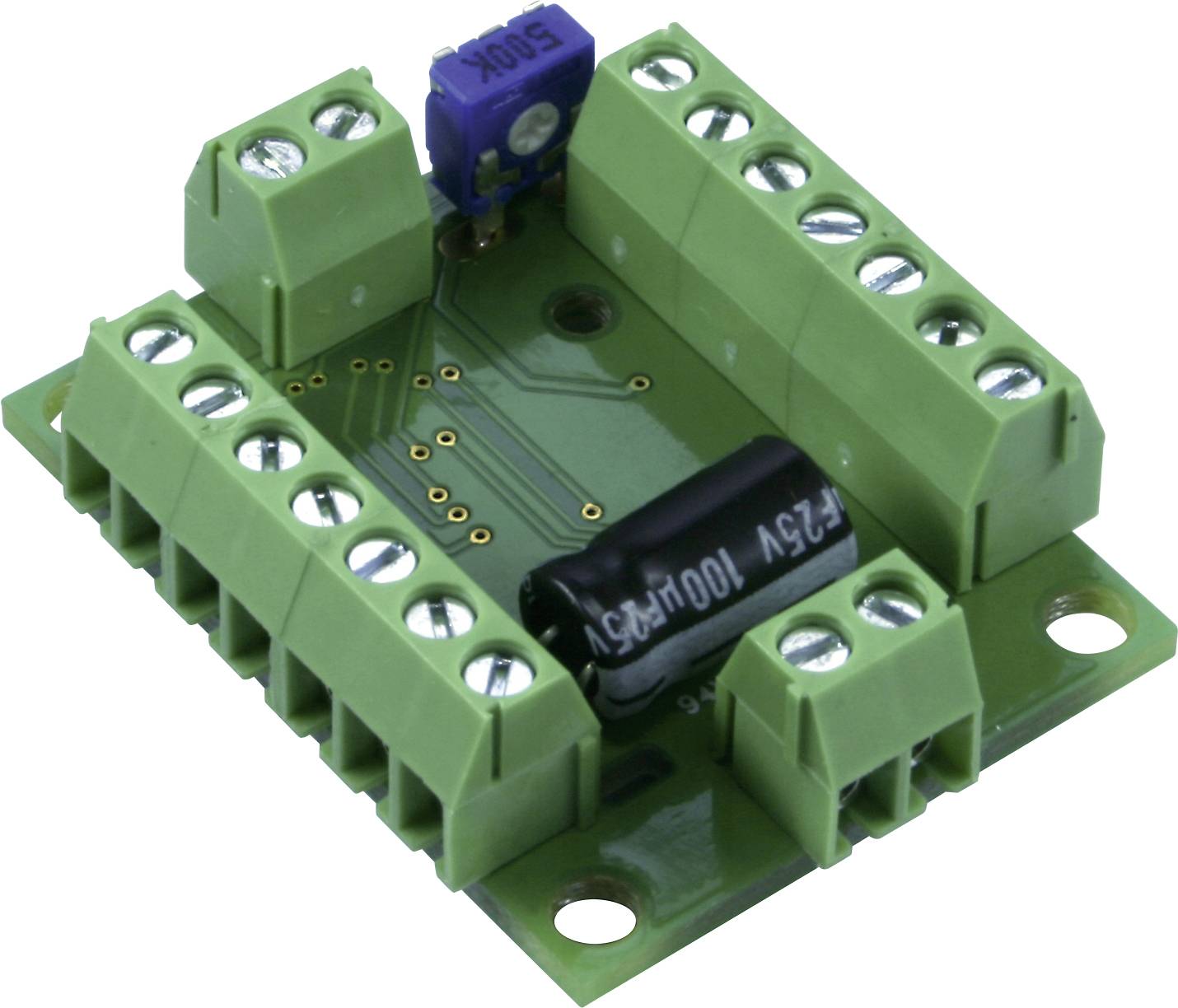

A green circuit board with several green terminal blocks and a cylindrical electronic component on it.

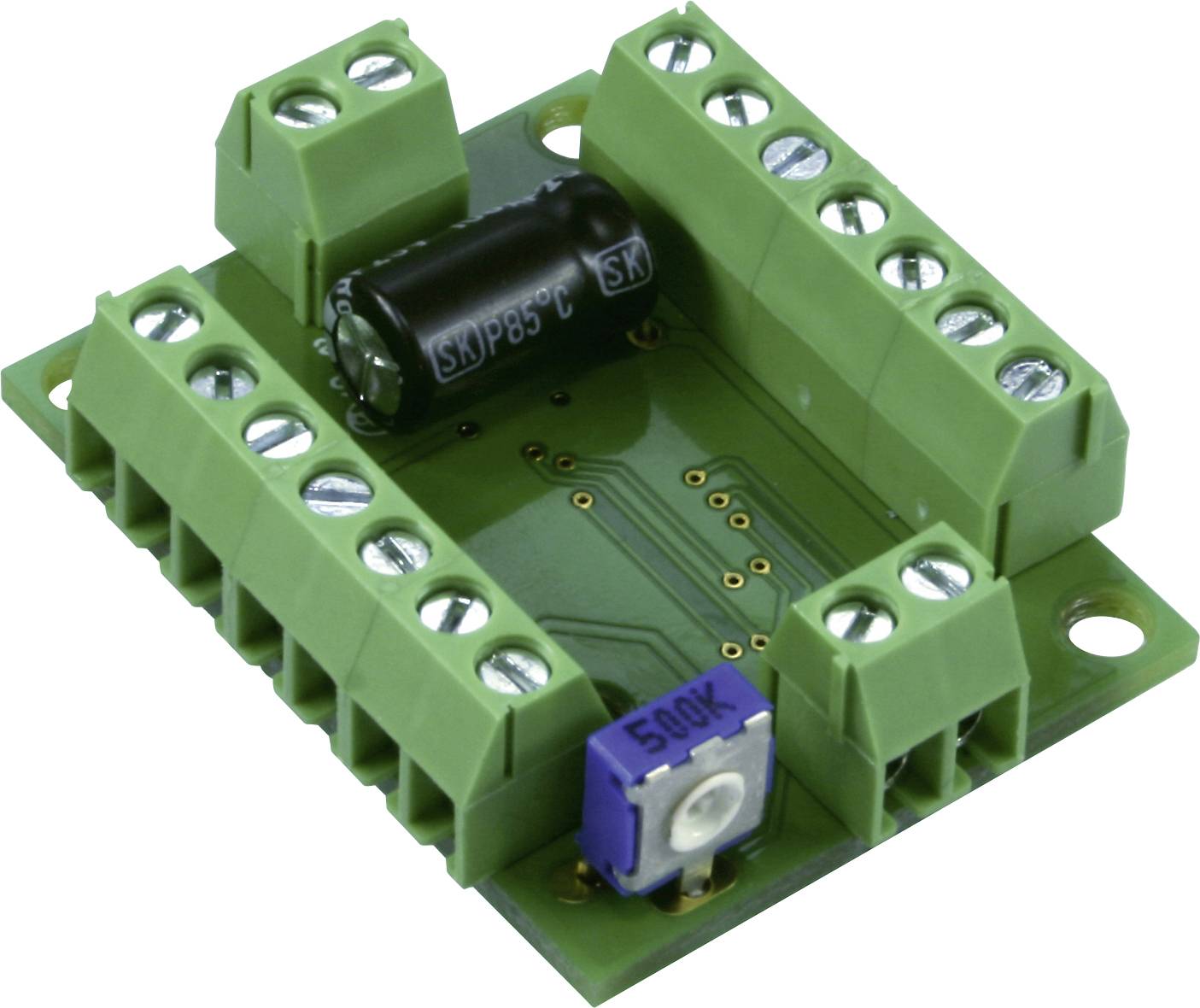

Green electronic interface circuit board with screw terminals and black capacitor, used for electrical connection of various components.

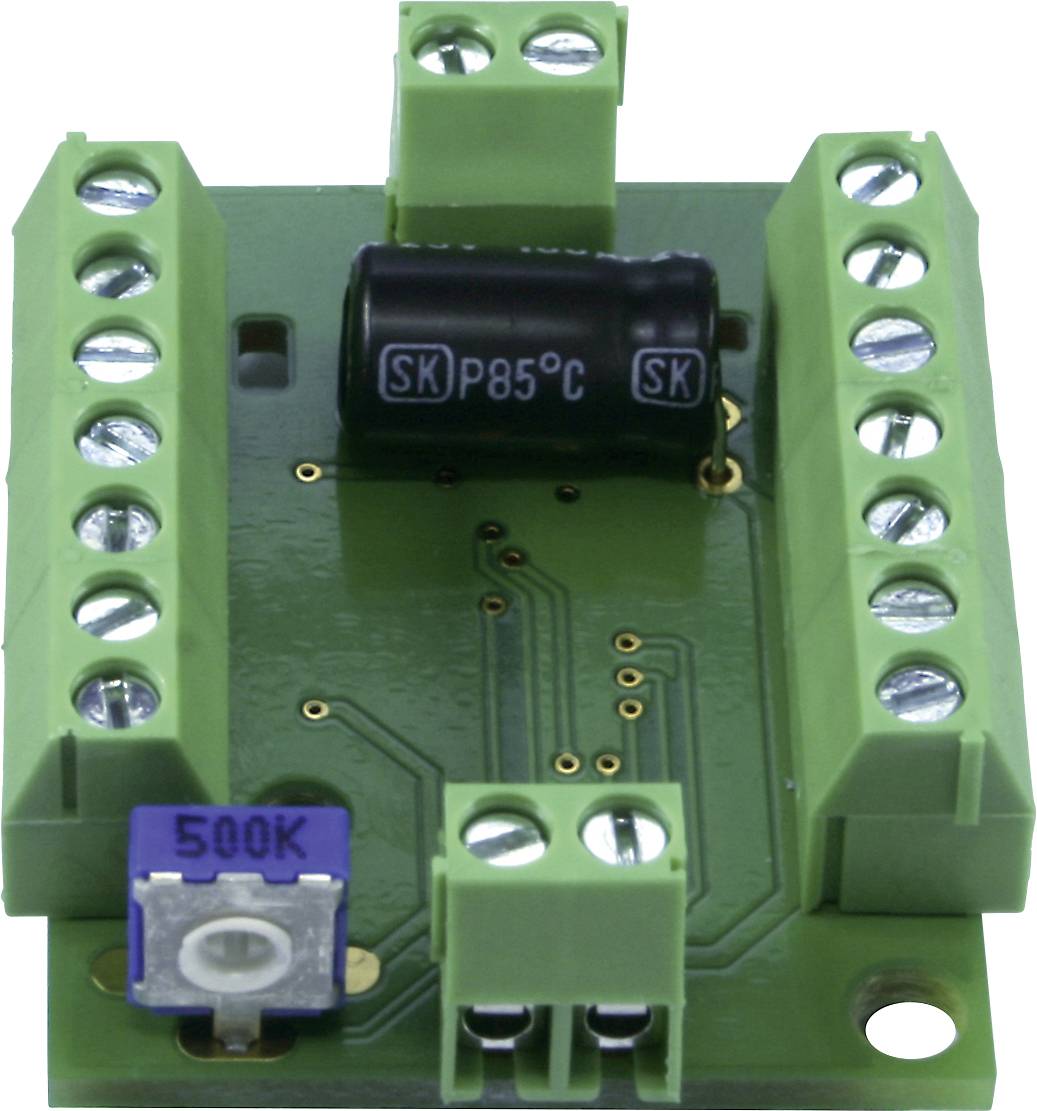

A green printed circuit board with several green terminal blocks, a blue potentiometer marked '500K' and a black capacitor.

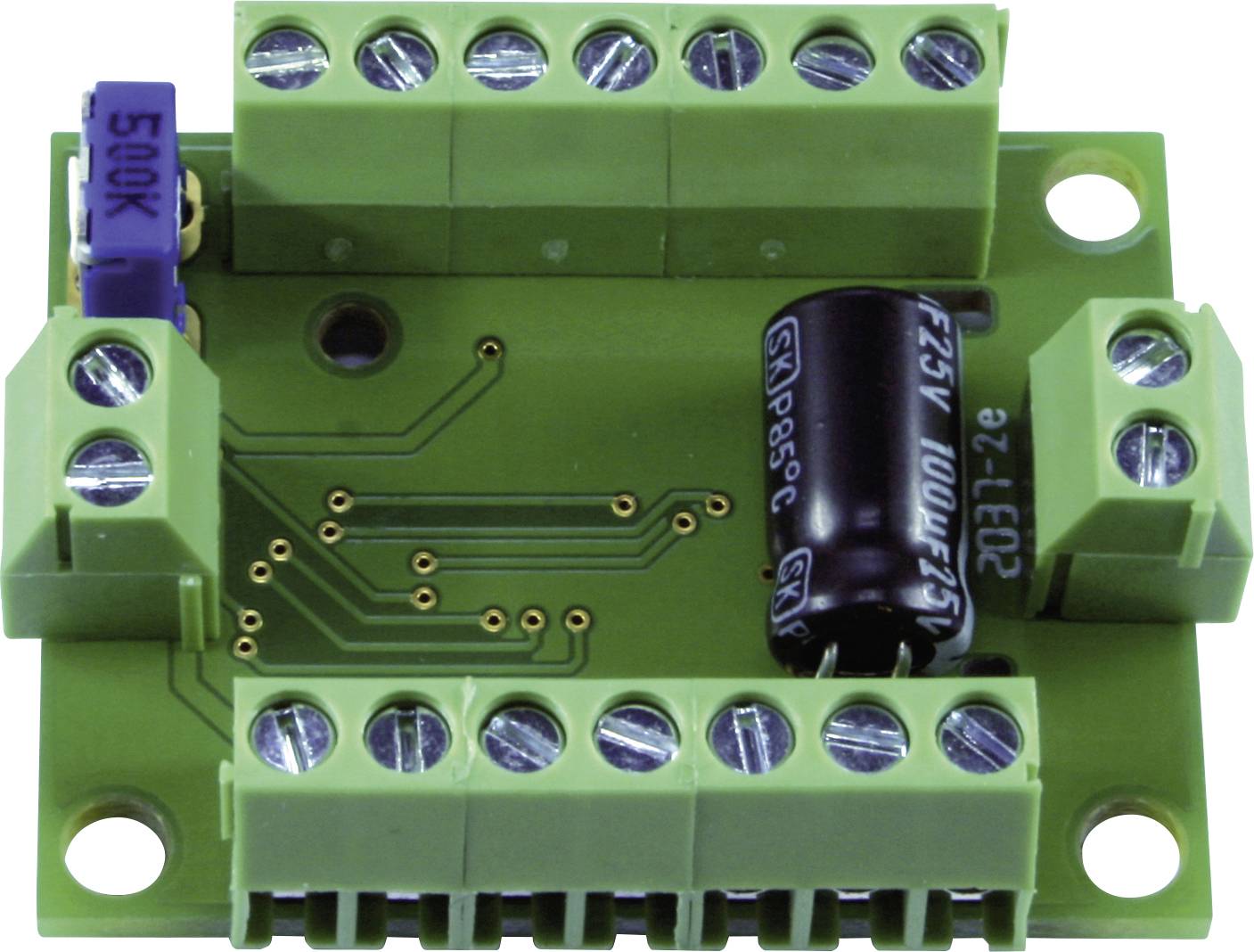

Electronic green circuit board with multiple screw terminals and a black capacitor. Used for electrical connections.

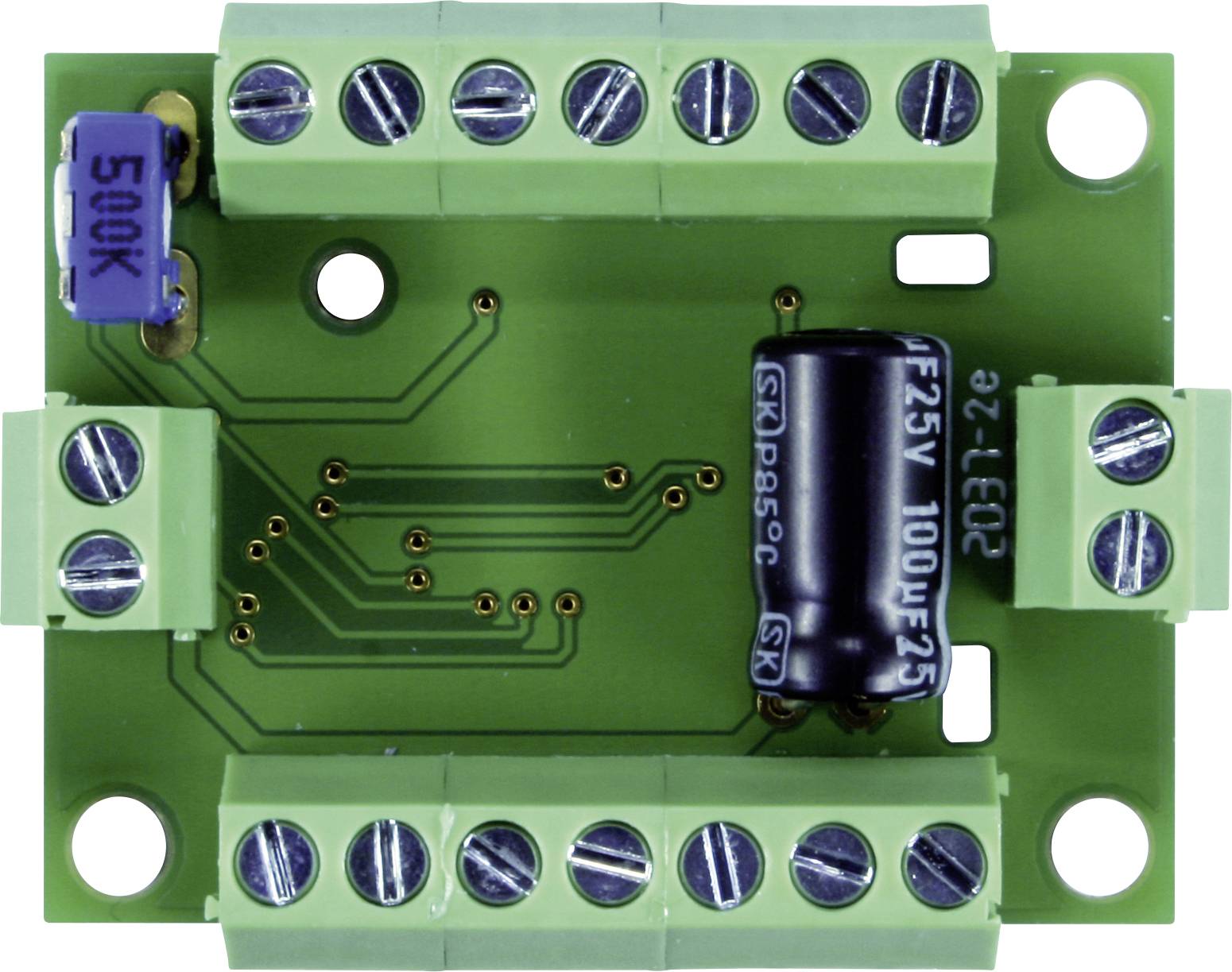

Green electronic circuit board with multiple silver screw terminals, a blue potentiometer, and a black electrolytic capacitor.

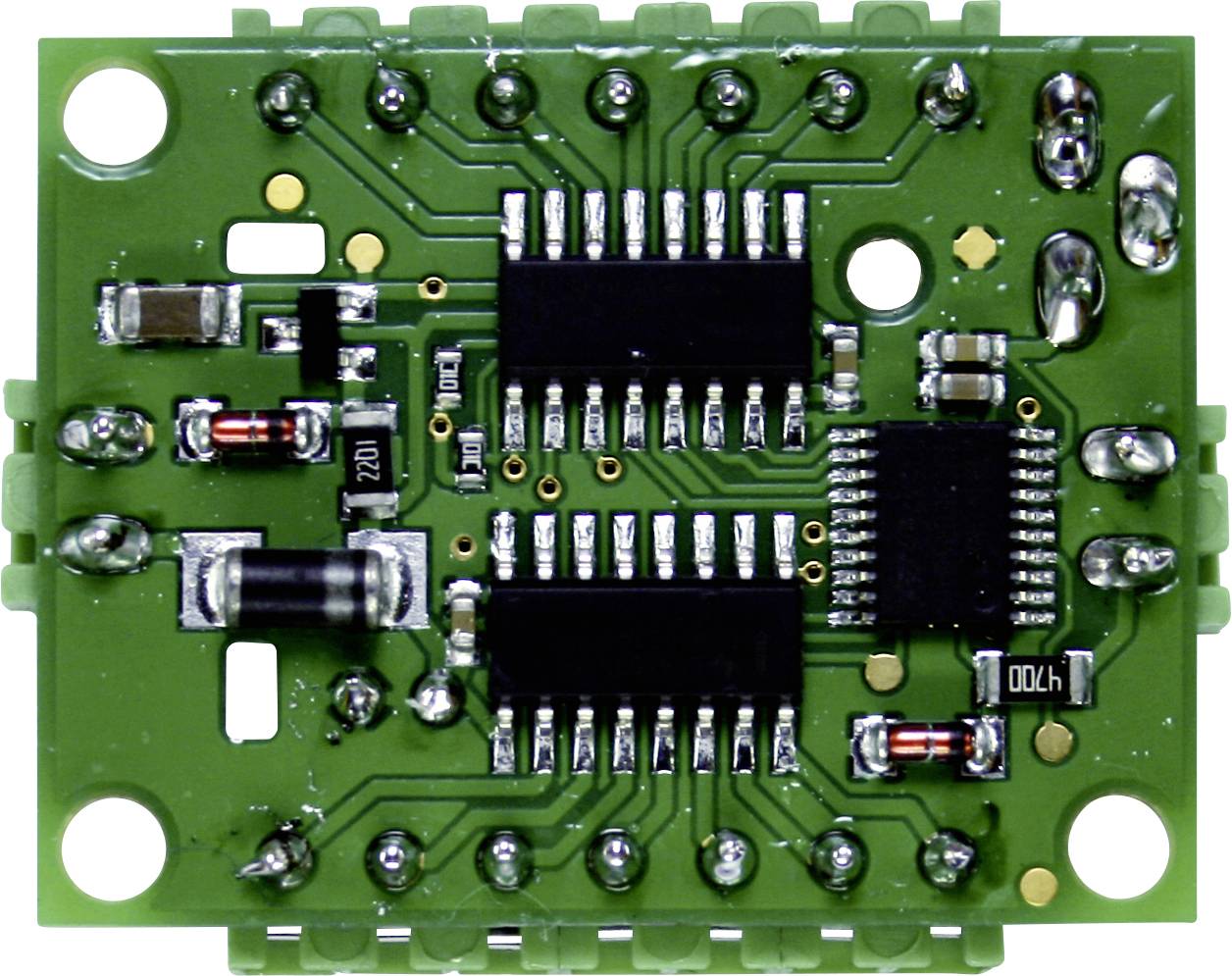

Green electronic circuit board with integrated circuits, resistors, and capacitors. Main component of an electronic device.

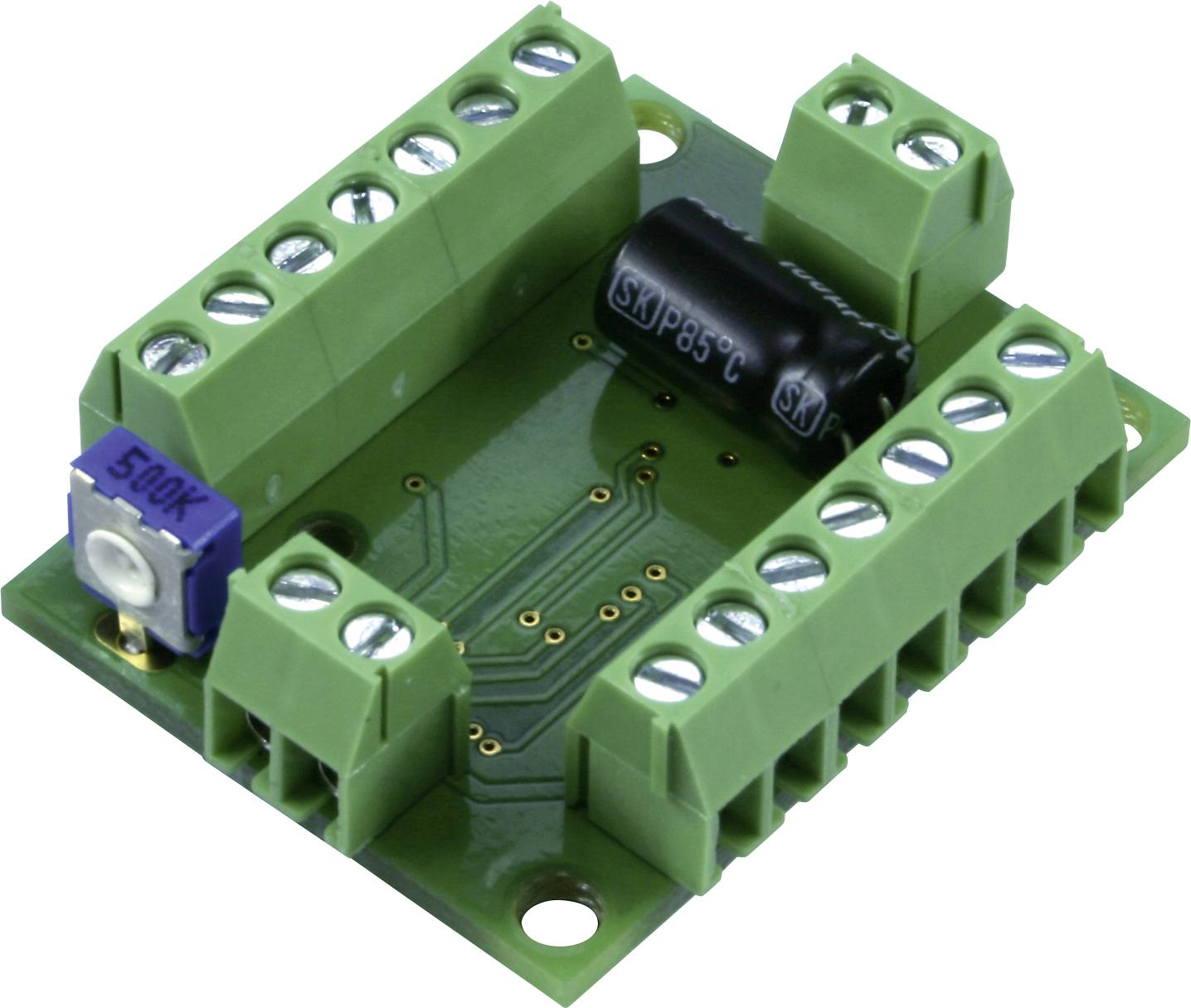

'Green electronic circuit board with screw terminals and capacitor, used for electrical circuits.'

1/8

Fast track dispatch on Wed, 30 Sep

49 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Emergency service vehicle

Type: Prefab component

Age category: 15 years and over

Manufacturer part #: 53-04066-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373281 TAMS Elektronik 53-04066-01-C BST LC-NG-06 Flashing control circuits Emergency service vehicle 1 pc(s)

Warranty Terms

Warranty Terms 2373281 TAMS Elektronik 53-04066-01-C BST LC-NG-06 Flashing control circuits Emergency service vehicle 1 pc(s)

Description

For controlling the blue lights of one or more emergency vehicles. Flashing lights optionally as single flasher (for older vehicles) or double or triple flash (for modern vehicles). Connection for a loudspeaker (for playing back the sound of a martinhorn stored on the IC). Note on the stored sound: The LC-NG module is not designed as a sound module, the stored sound is correspondingly simple.

This text is machine translated.

Features

14 outputs (max. 200 mA each), of which 13 outputs for connecting incandescent lamps or LEDs (via series resistors) and 1 output for connecting a loudspeaker (impedance at least 8 Ohm, recommended at least 32 Ohm)
Maximal total current: 1,000 mA
Use of the switching input: Start / end the sequence
Settings on the trim potentiometer: Selection of the start mode
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
