Buy TAMS Elektronik 53-04095-01-C BSA LC-NG-09 Flashing control circuits Train station 1 pc(s)

Green electronic circuit board with multiple green terminal blocks, a black capacitor component, and a blue potentiometer adjustment.

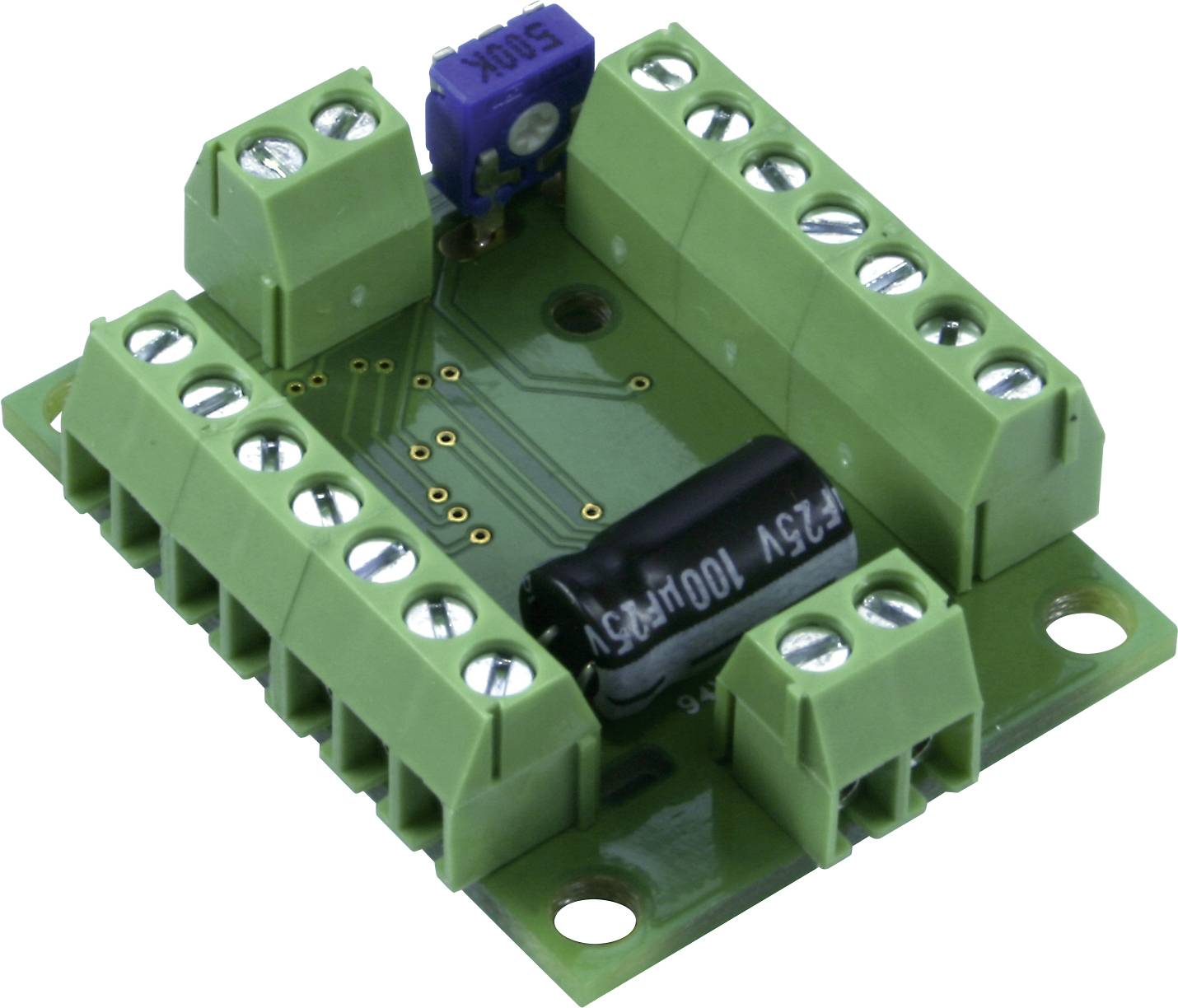

Electronic module with several green terminals and a cylindrical black component in the centre on a circuit board.

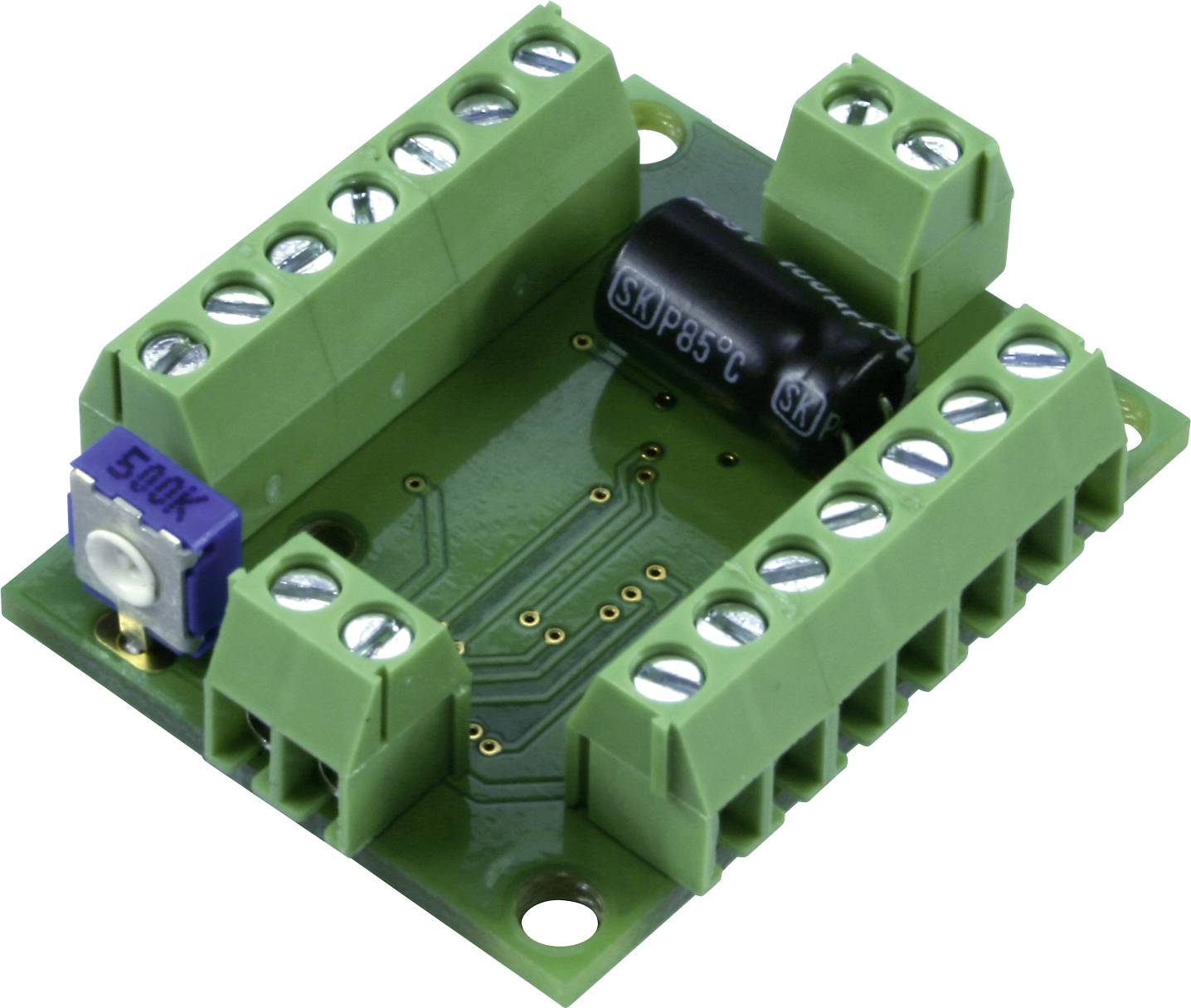

'Green electronic circuit board with multiple connections and a black cylindrical component, possibly a capacitor.'

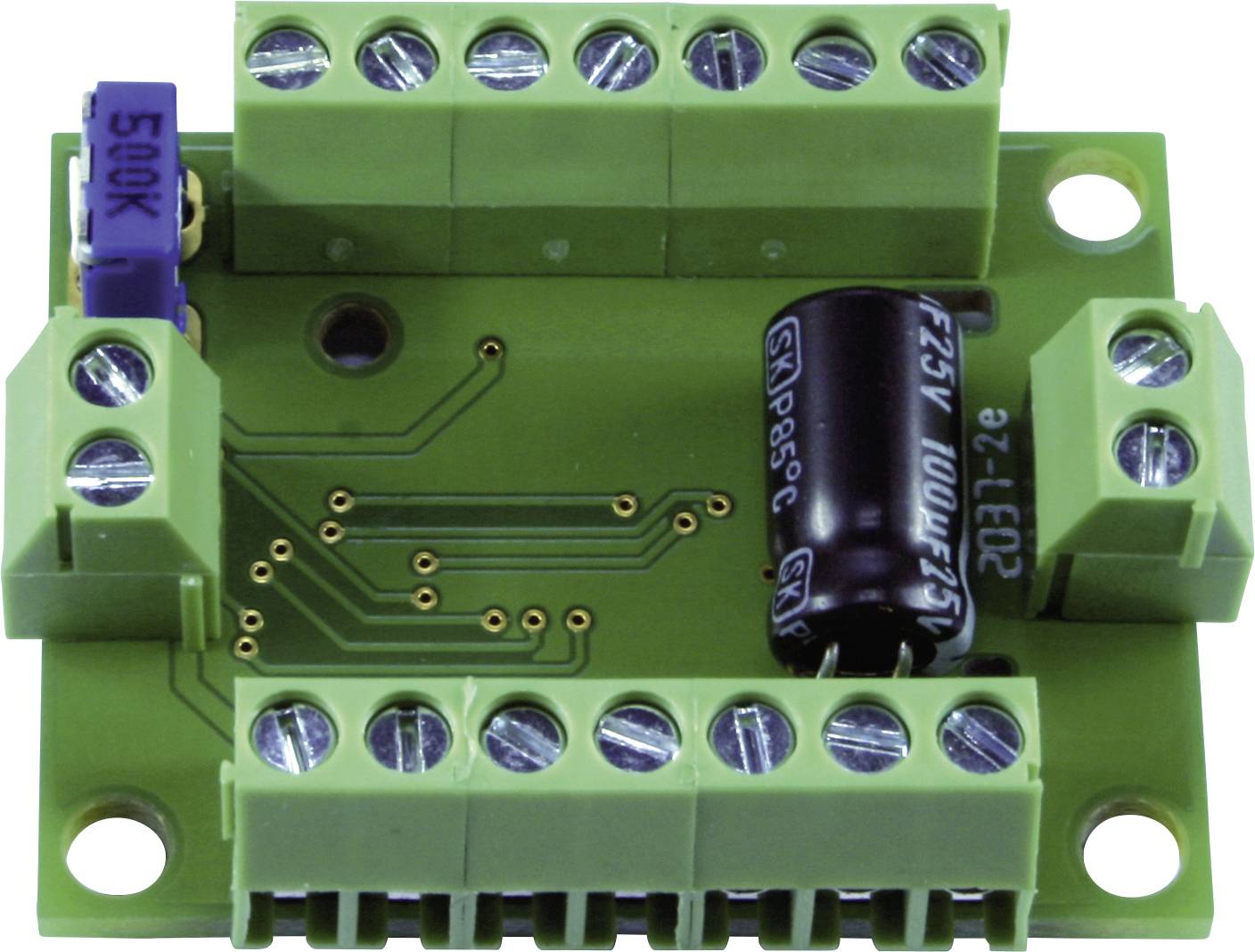

Electronic circuit board with multiple green terminal blocks, a capacitance unit, and a blue potentiometer.

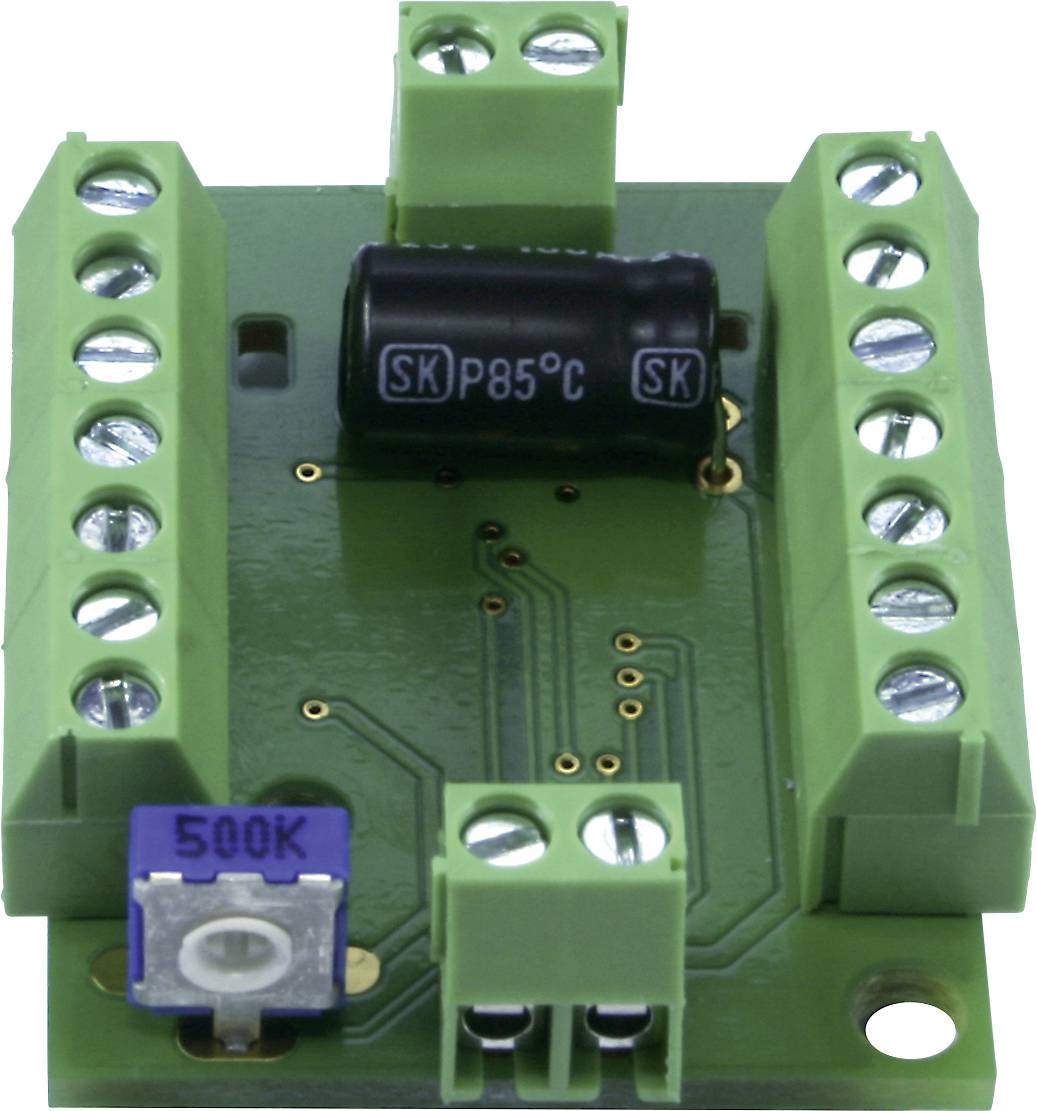

A green electronic printed circuit board with multiple screw terminals and a black capacitor, used for electrical connections.

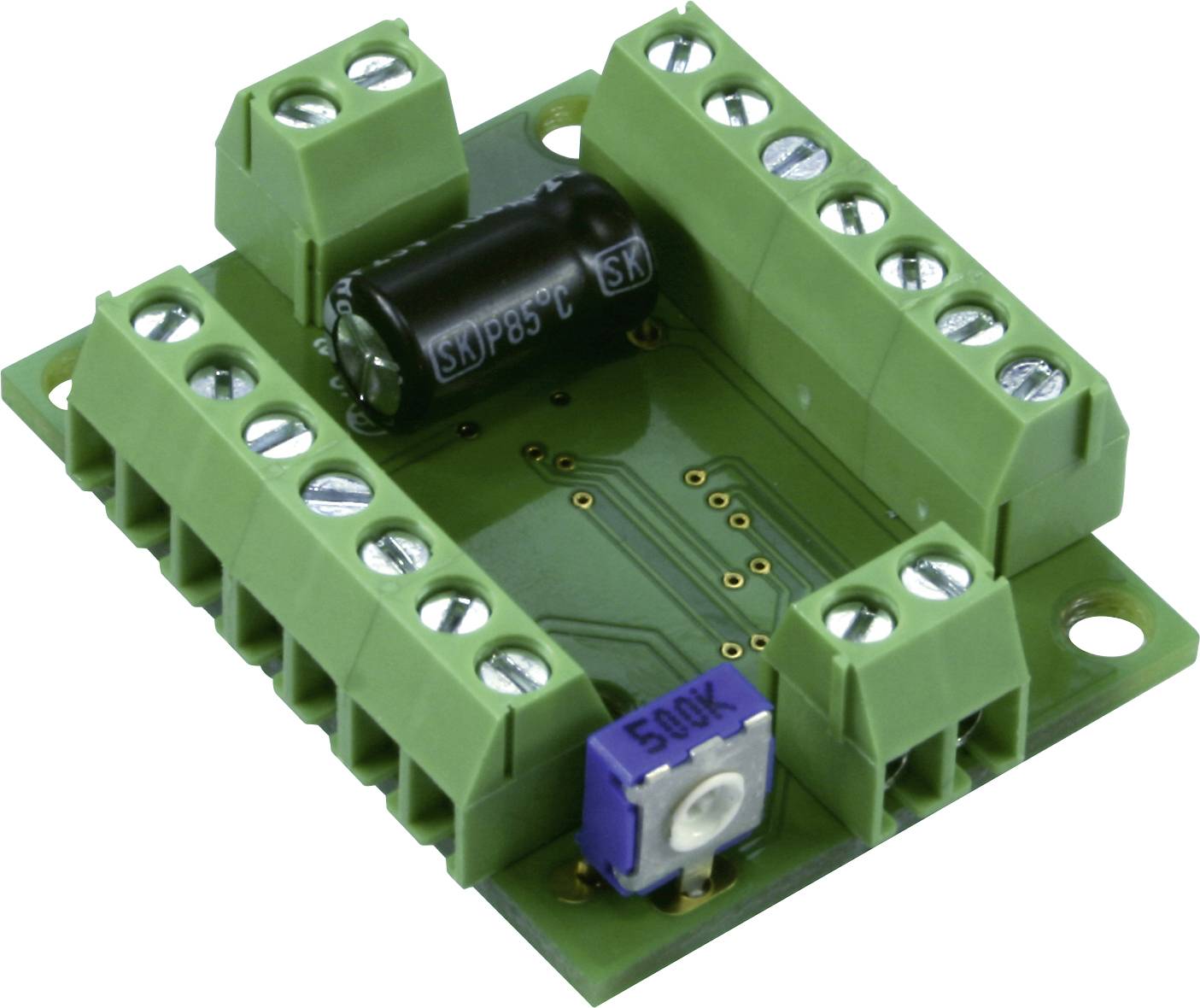

'Green electronic circuit board with multiple screw terminals, a capacitor, and a blue potentiometer. Components mounted on the board.'

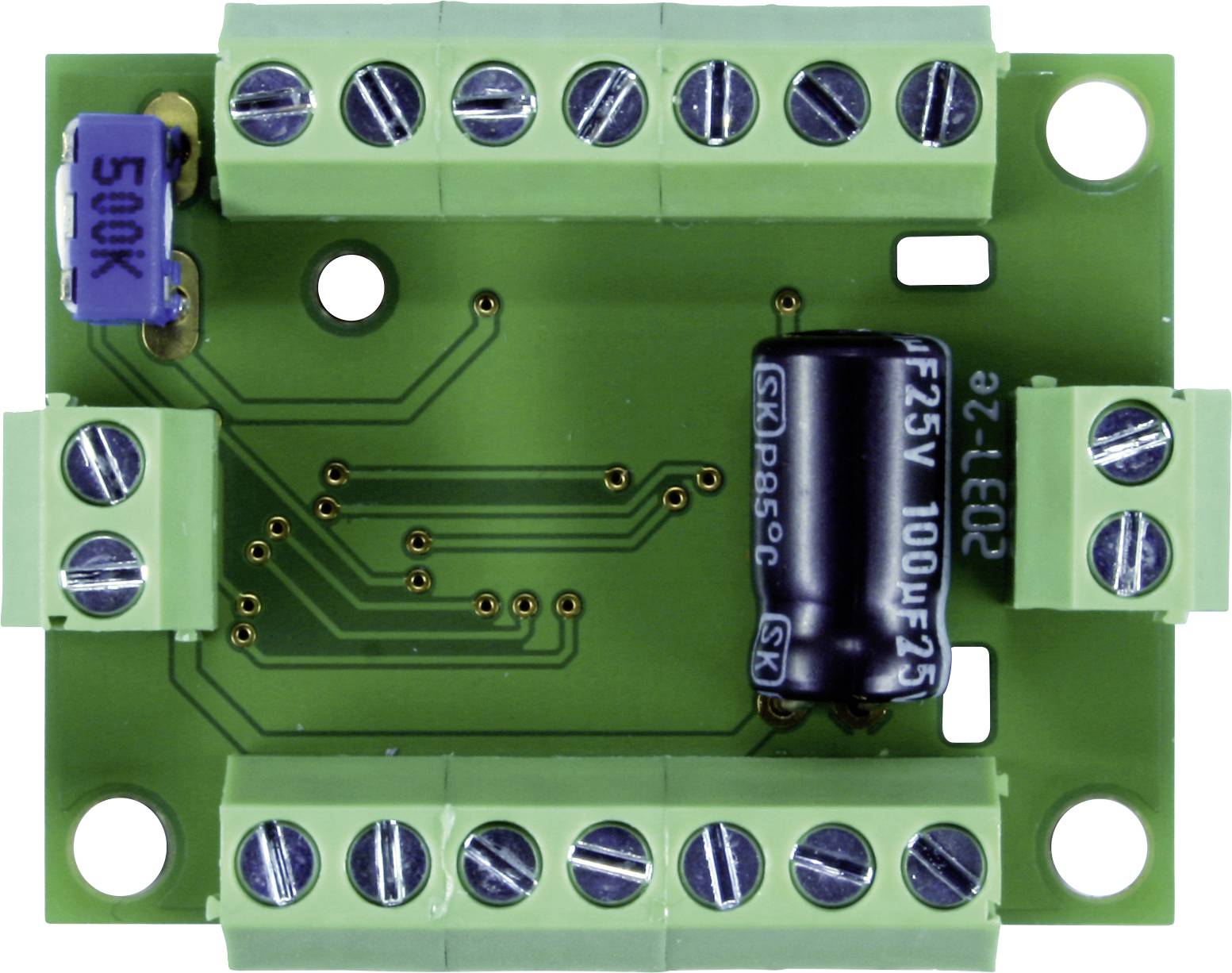

Green electronic circuit board with multiple screw terminals and a black cylindrical electrical capacitor.

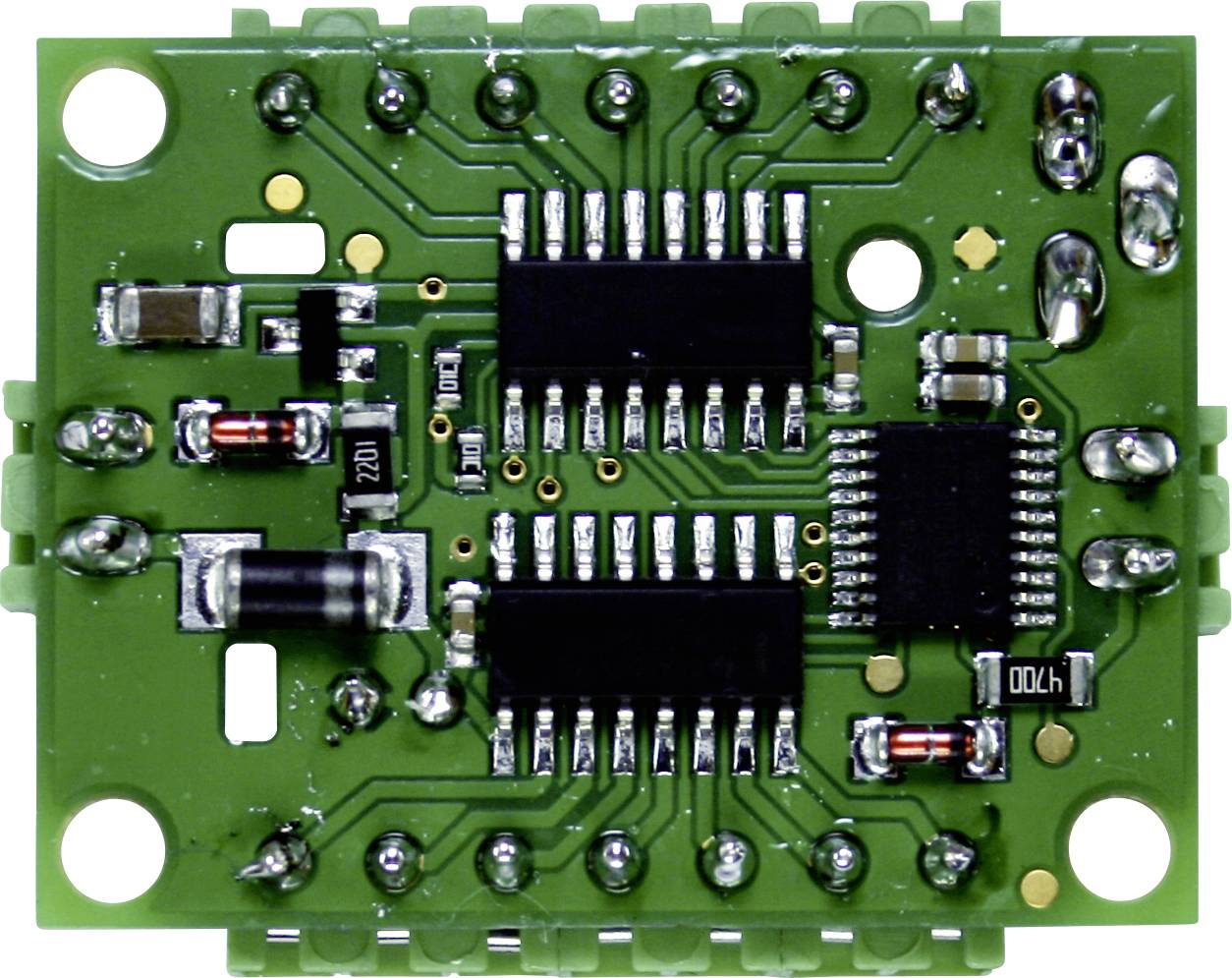

Green electronic circuit with multiple microchips and resistors, typical layout of a digital circuit board.

1/8

Fast track dispatch on Mon, 5 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Train station

Type: Assembly kit

Age category: 15 years and over

Type: Assembly Kit

Manufacturer part #: 53-04095-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373297 TAMS Elektronik 53-04095-01-C BSA LC-NG-09 Flashing control circuits Train station 1 pc(s)

Warranty Terms

Warranty Terms 2373297 TAMS Elektronik 53-04095-01-C BSA LC-NG-09 Flashing control circuits Train station 1 pc(s)

Description

For the control of "fluorescent lamps" including a defective lamp (e.g. for platform roof), connection possibility for warning lights (e.g. for luggage carts or cleaning vehicles), further outputs for lighting in the station building or in the signal tower.

This text is machine translated.

Features

14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors), of which:
7 outputs for "fluorescent lamps" (e.g. for platform roof), which flicker briefly when switched on, before they reach their final brightness. One of the fluorescent lamps has a defect and flickers accordingly
2 outputs for flashing lights (e.g. for luggage carts or cleaning vehicles)
5 exits for the lighting in the station building or in the signal tower
Maximal total current: 1,000 mA
Use of the switching input: Start / end the sequence
Settings on the trim potentiometer: Speed of the switching sequence at the outputs for further lighting. The outputs can be used either for connecting lights in the station building or for simulating the displays in the signal tower
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
