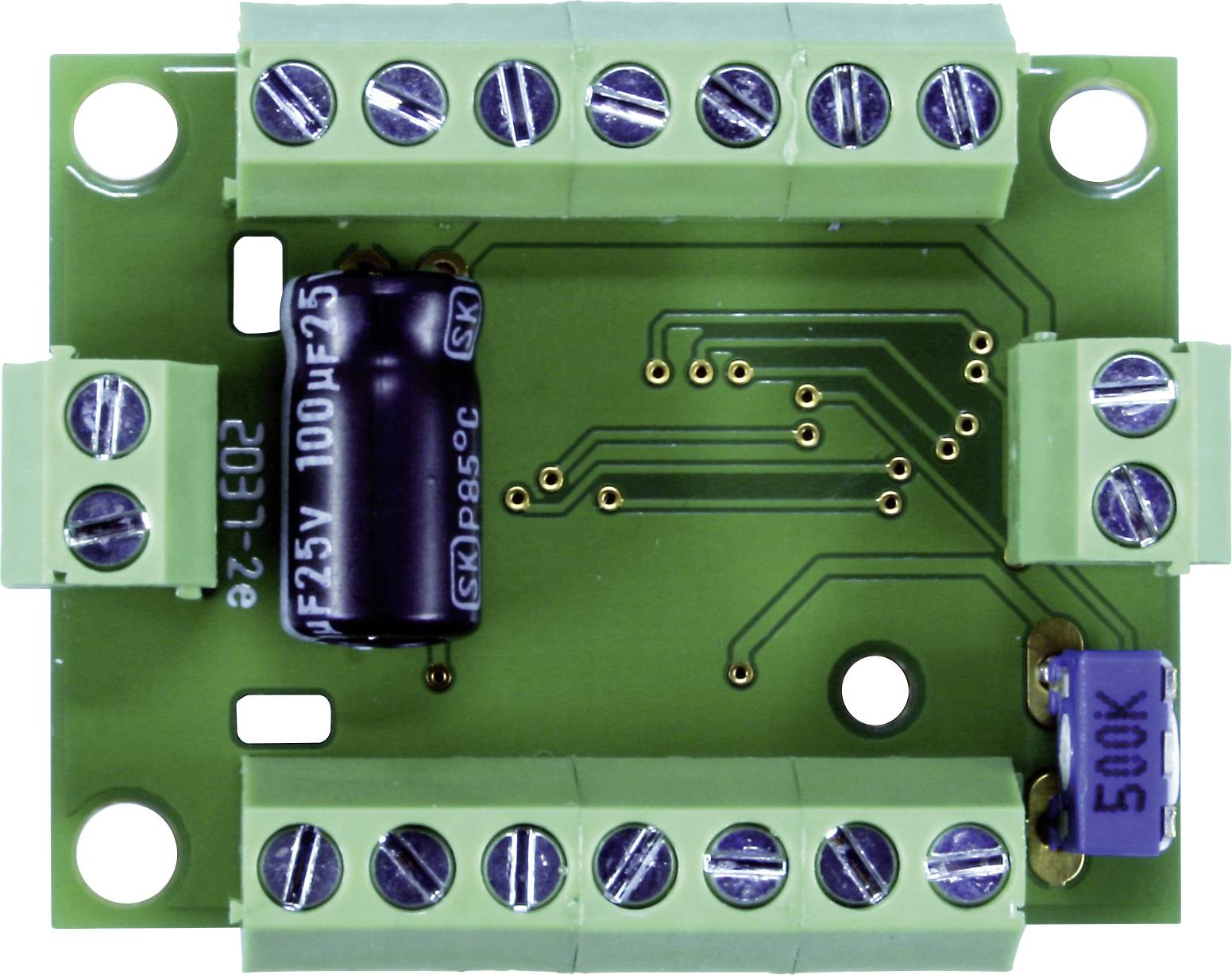

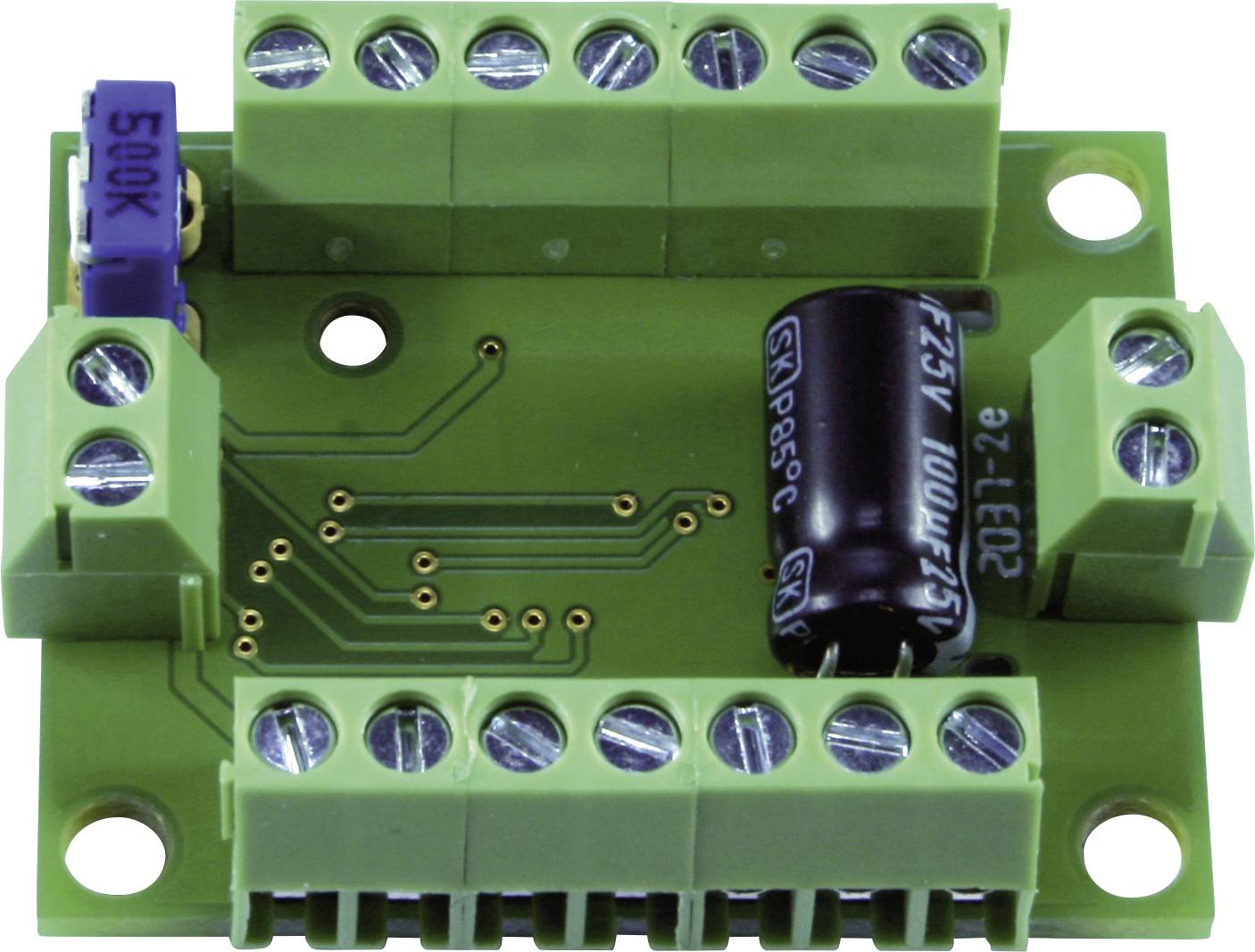

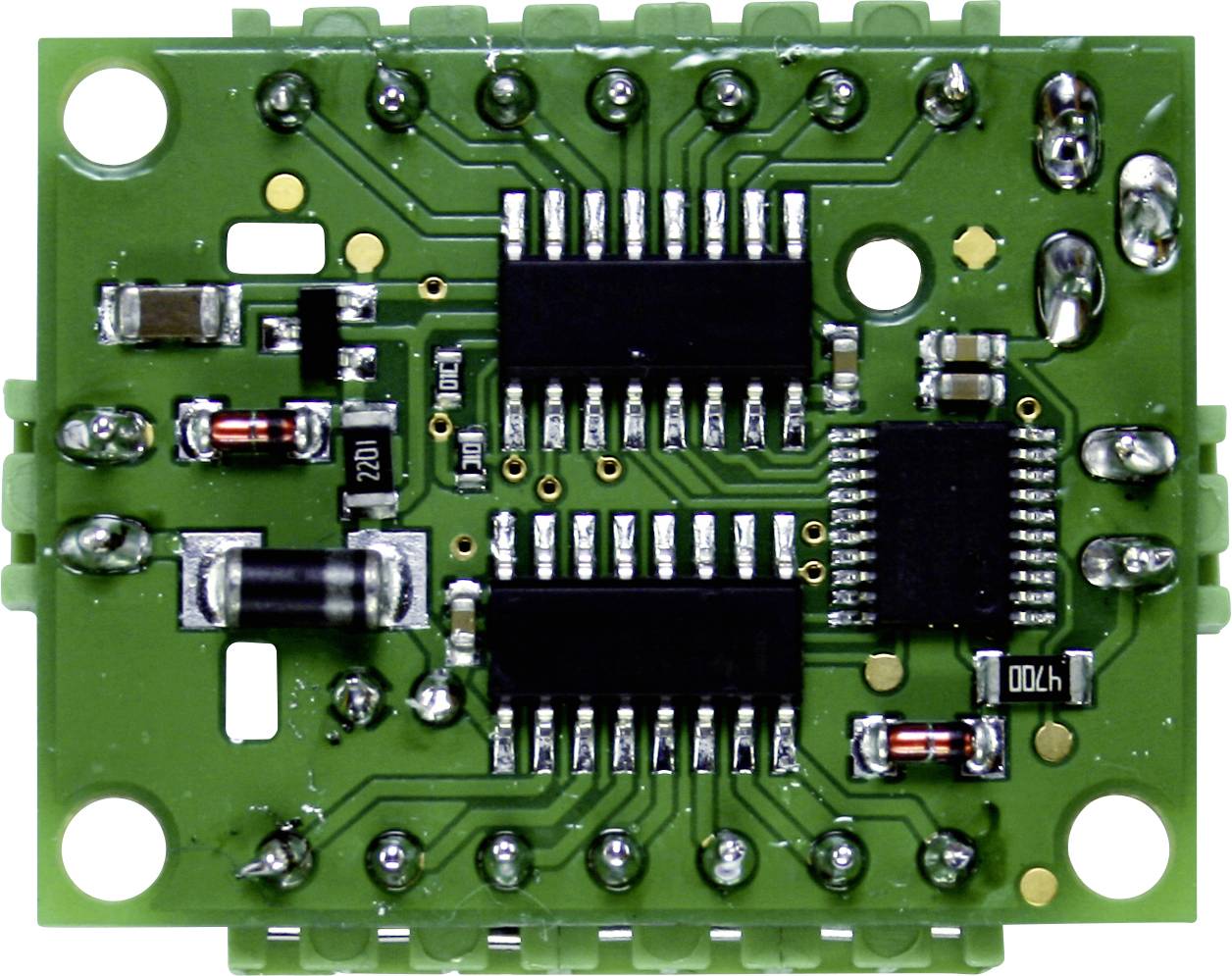

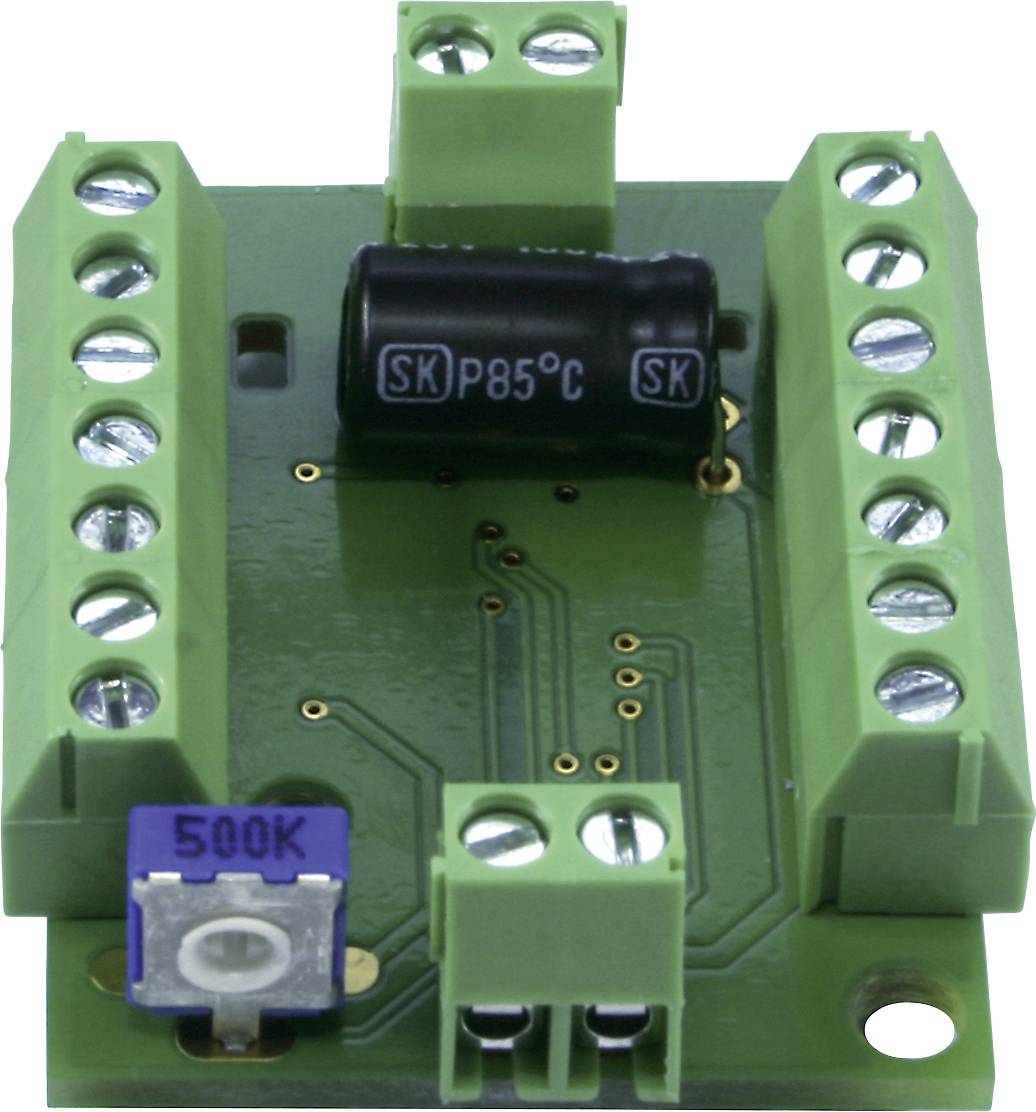

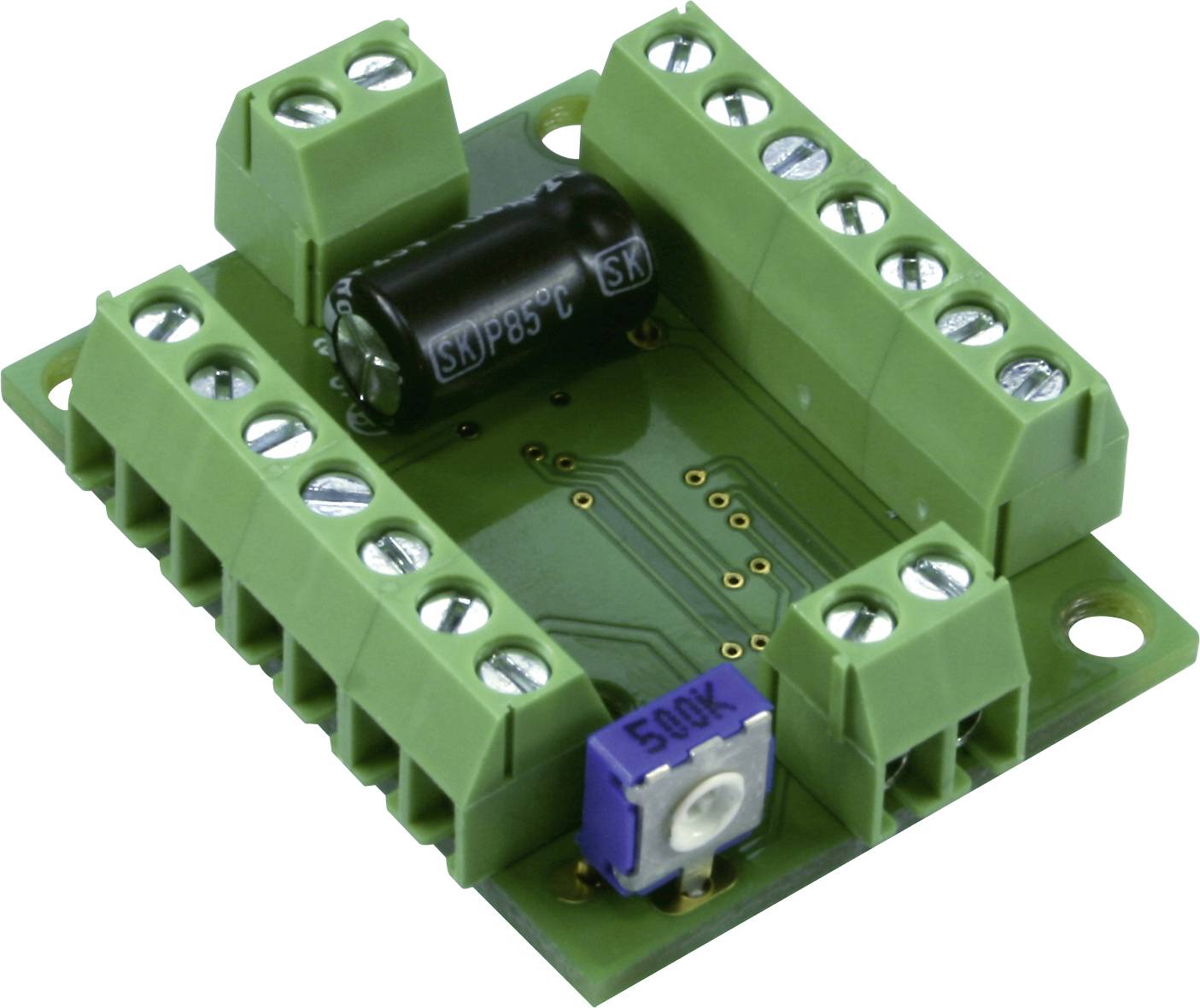

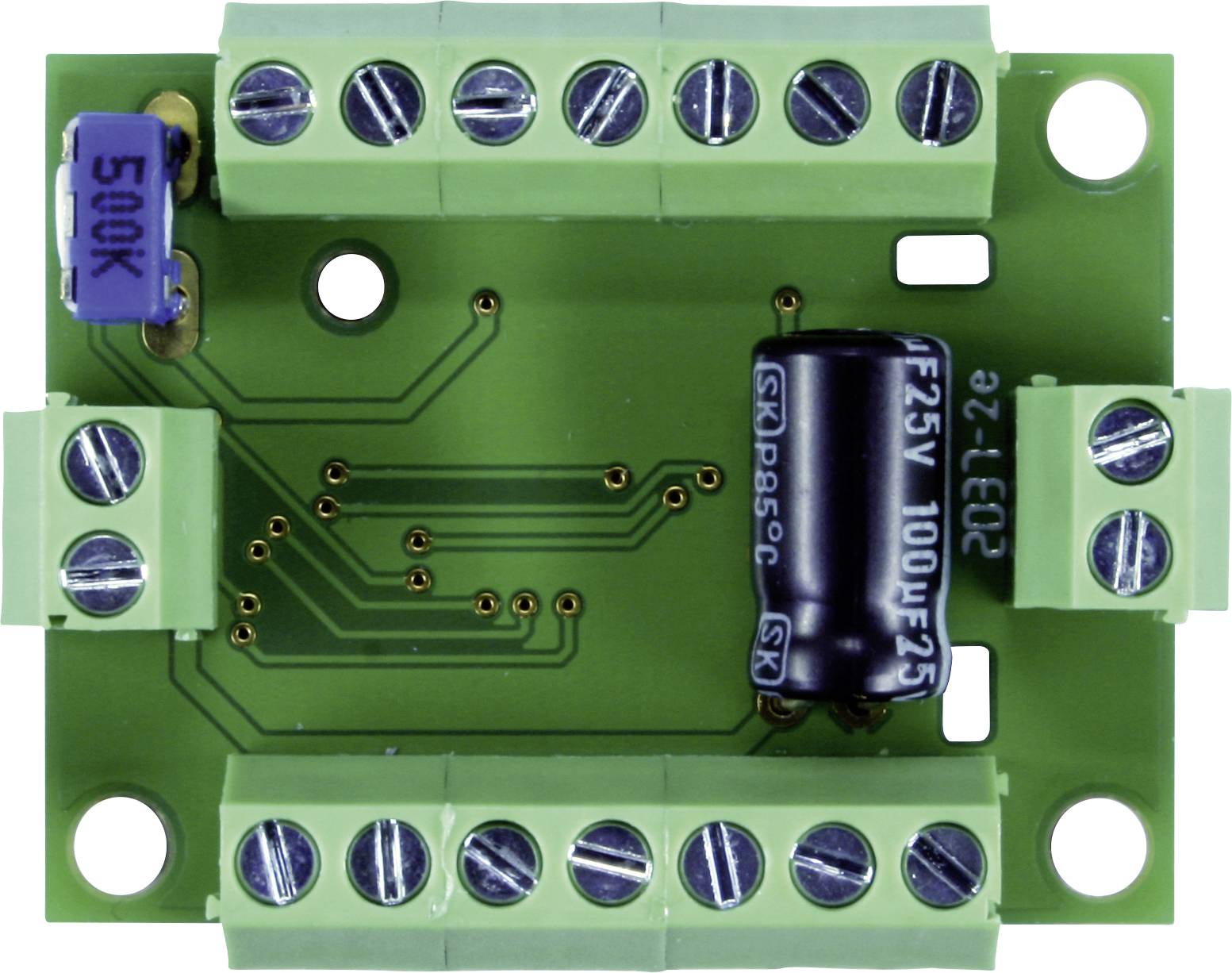

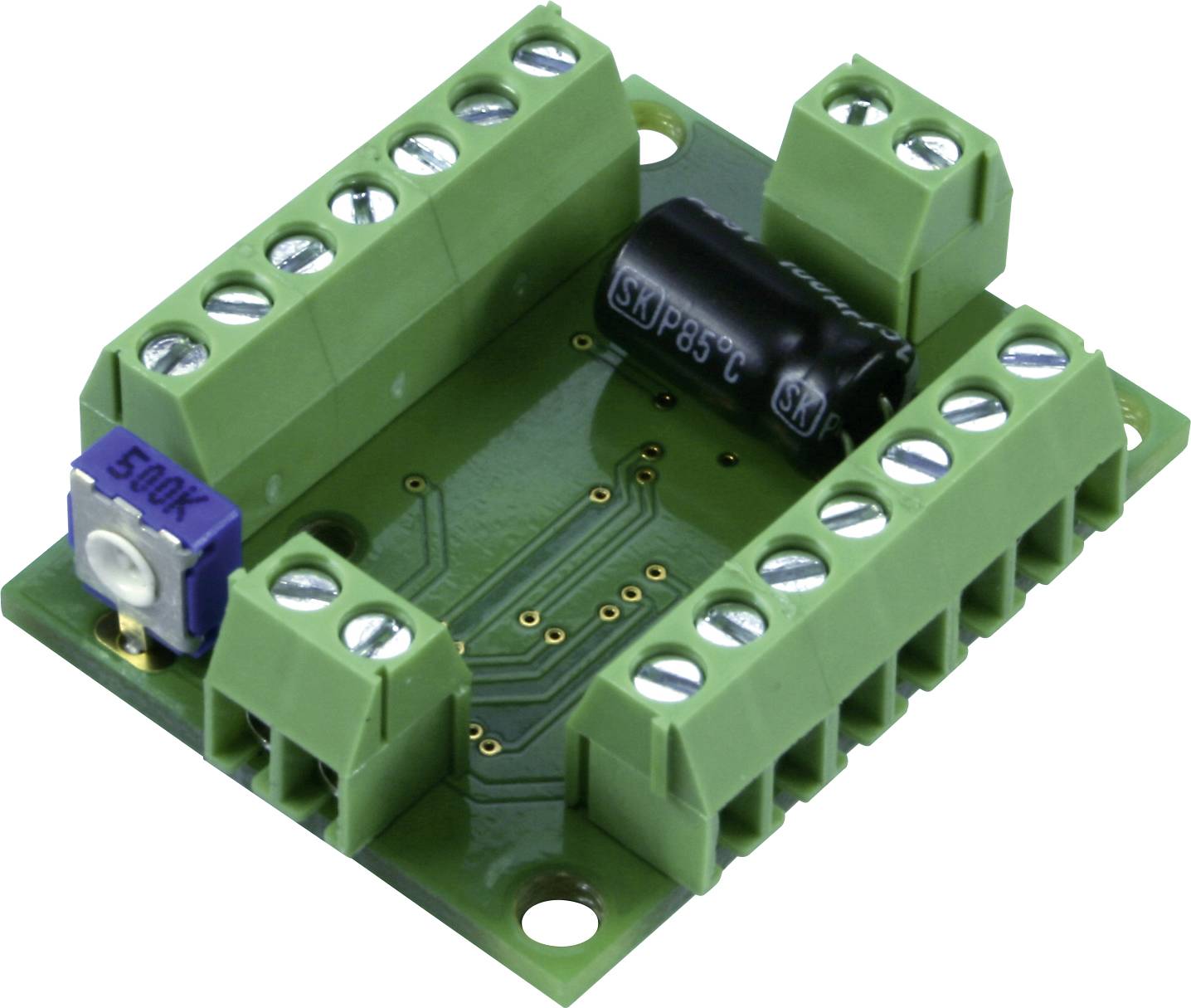

TAMS Elektronik 53-04105-01-C BSA LC-NG-10 Flashing control circuits Workshop 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Technical specifications
- Size
Universal
- Product type
Flashing control circuits
- Functions
Workshop
- Type
Assembly kit
- Age category
15 years and over
- Type
Assembly Kit
- Manufacturer part #
53-04105-01-C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373285 TAMS Elektronik 53-04105-01-C BSA LC-NG-10 Flashing control circuits Workshop 1 pc(s)
Warranty Terms
Warranty Terms 2373285 TAMS Elektronik 53-04105-01-C BSA LC-NG-10 Flashing control circuits Workshop 1 pc(s)
Description
Generation of different lighting effects in a workshop: Welding light, open fire (flicker), warning lights and fluorescent lamps. Connection possibility for the lighting of offices or living rooms. Output for a servo (e.g. for controlling a gate or crane).
This text is machine translated.
This text is machine translated.
Features
- 14 outputs (max. 200 mA each), of which:
- 2 outputs for "open fire"*
- 1 outputs for a flashing light*
- 5 outputs for the welding lights*
- 5 outputs for "fluorescent lamps"*, which flicker briefly when switched on, before they reach their final brightness.
- 1 output for connecting a servo (e.g. for controlling a crane or a gate). Note: An external power supply is required for the servos (e.g. Servo board Conrad Item No. 499661)
- *Lighting outputs for connecting glow lamps or LEDs (via series resistors).
- Maximal total current: 1,000 mA
- Use of the switching input: Switching the neon tubes on and off
- Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
Hints
Lamps, LEDs, servos and power supply for servos are not included in the delivery.
