Buy TAMS Elektronik 53-04106-01-C BST LC-NG-10 Flashing control circuits Workshop 1 pc(s)

Green circuit board with multiple screw terminals and a black cylinder, likely an electronic component such as a capacitor.

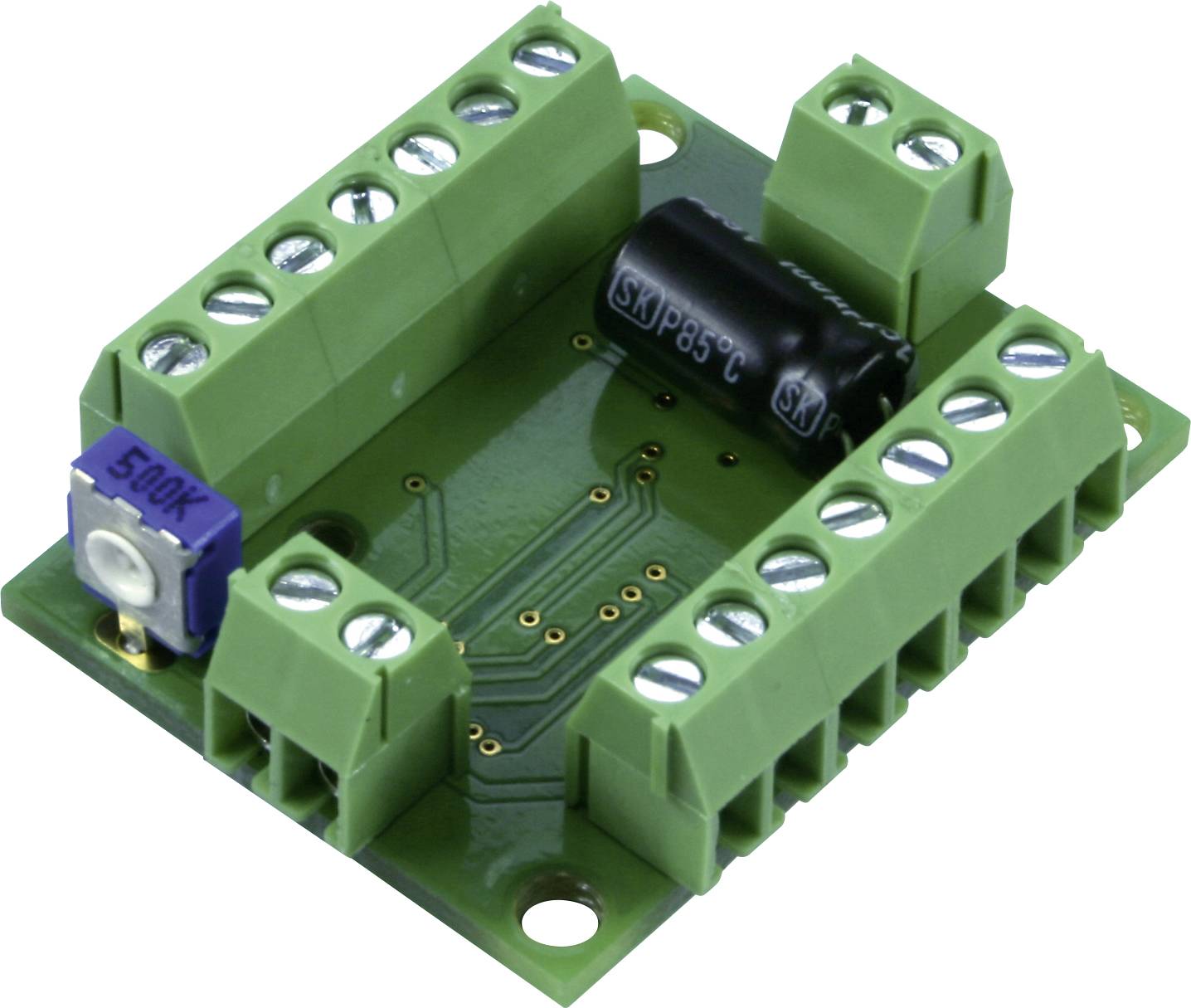

'Electronic circuit board with multiple green terminal blocks and a black capacitor. Suitable for electronic applications.'

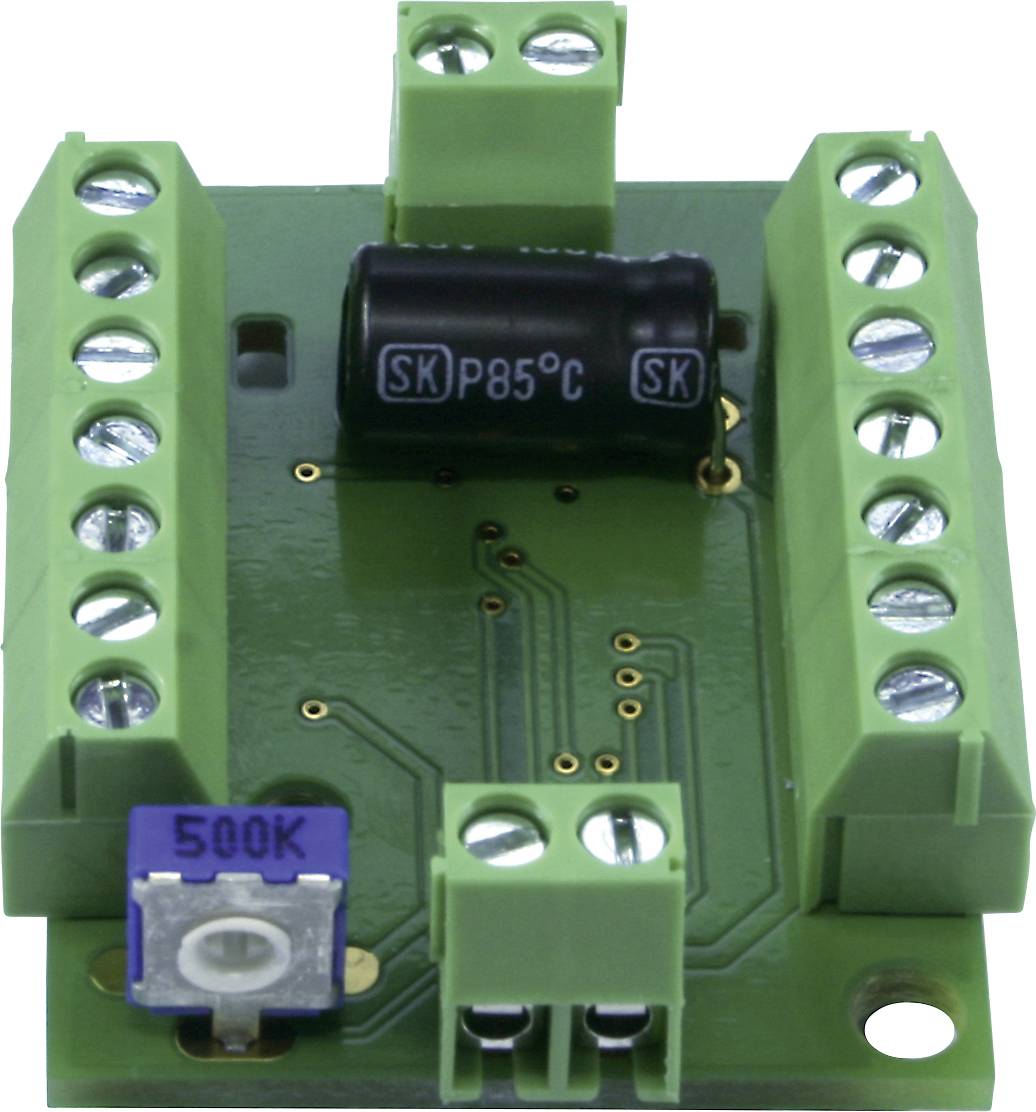

A green electronic circuit board with multiple screw terminals and a capacitor, used for connecting electrical circuits.

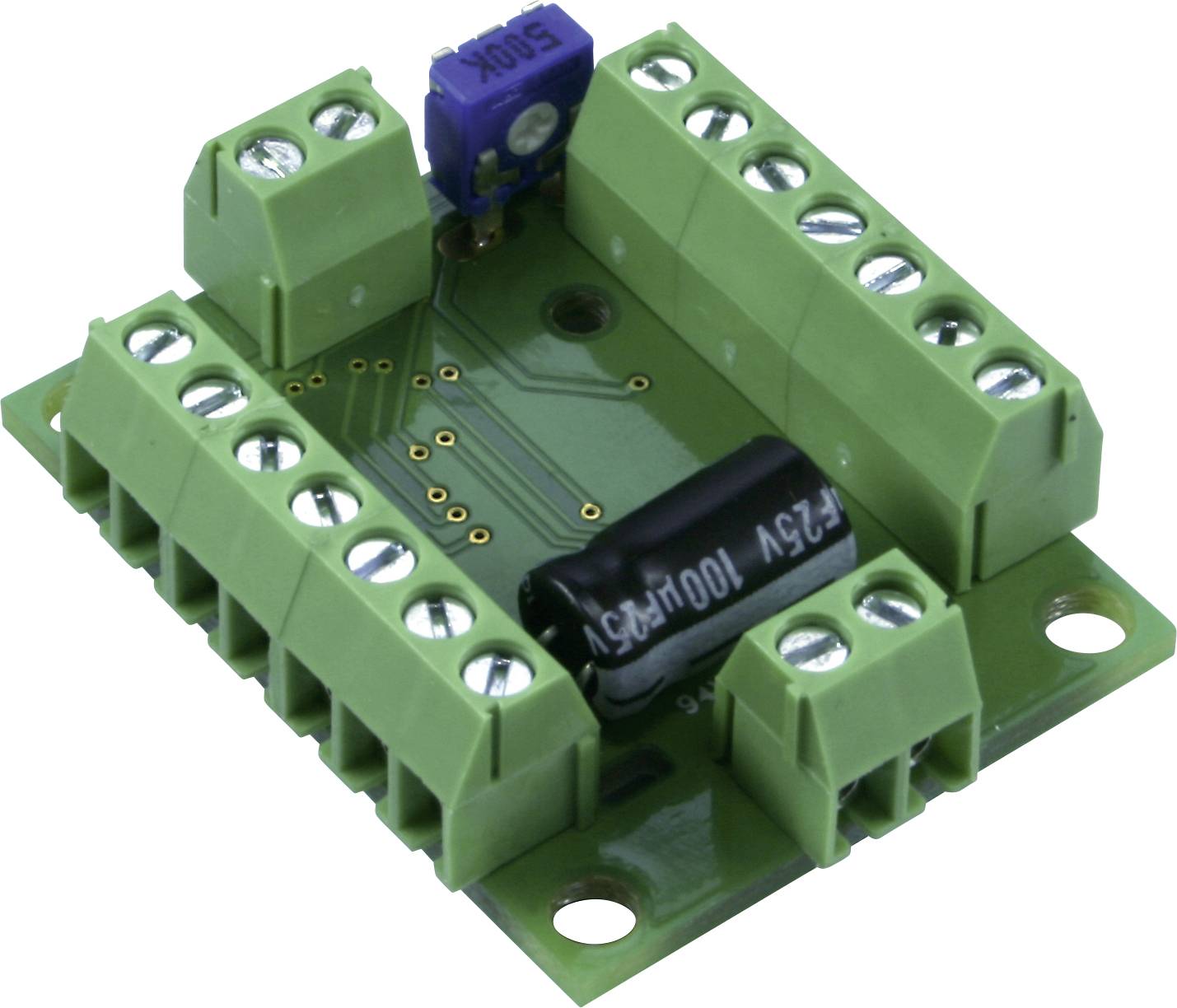

Green printed circuit board with multiple terminals and electronic components, including a black cylindrical capacitor, for electrical connections.

Green electronic circuit board with multiple terminal blocks, a blue resistor marked '500K', and a black capacitor '100µF 25V'.

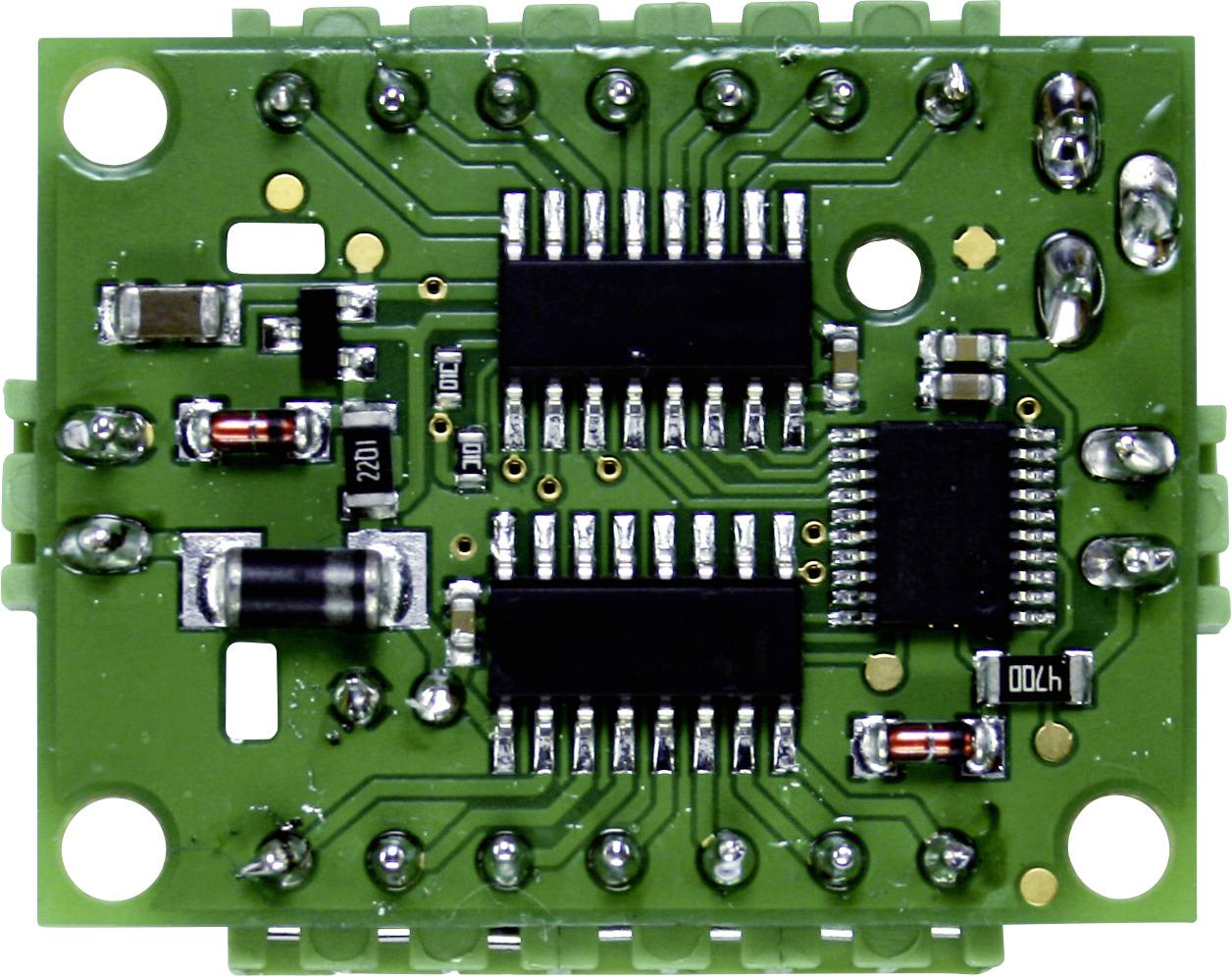

A green microcontroller board with several black chips and small electronic components, primarily resistors and capacitors.

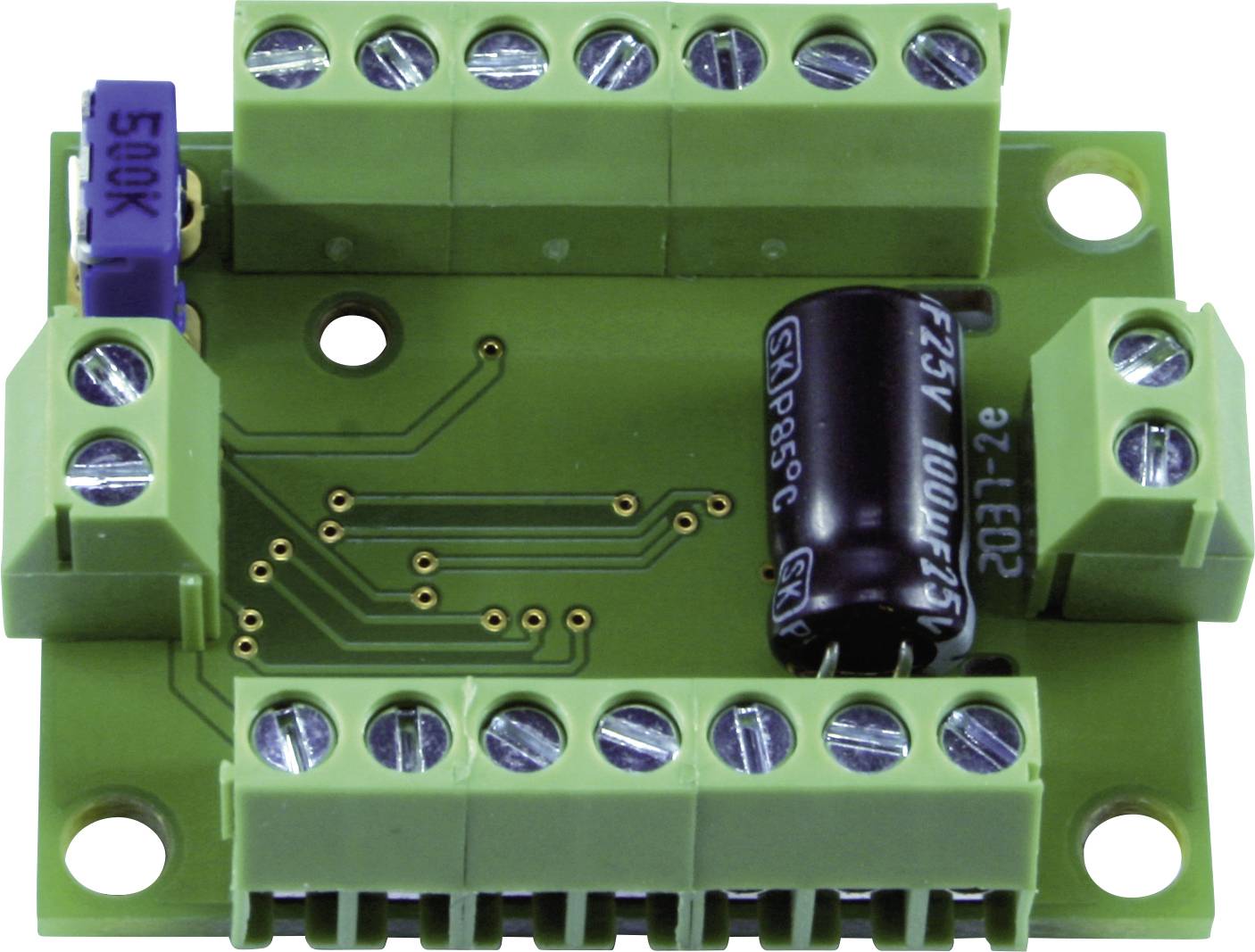

A green electrical circuit board with multiple screw terminals, a blue potentiometer, and an upright black capacitor.

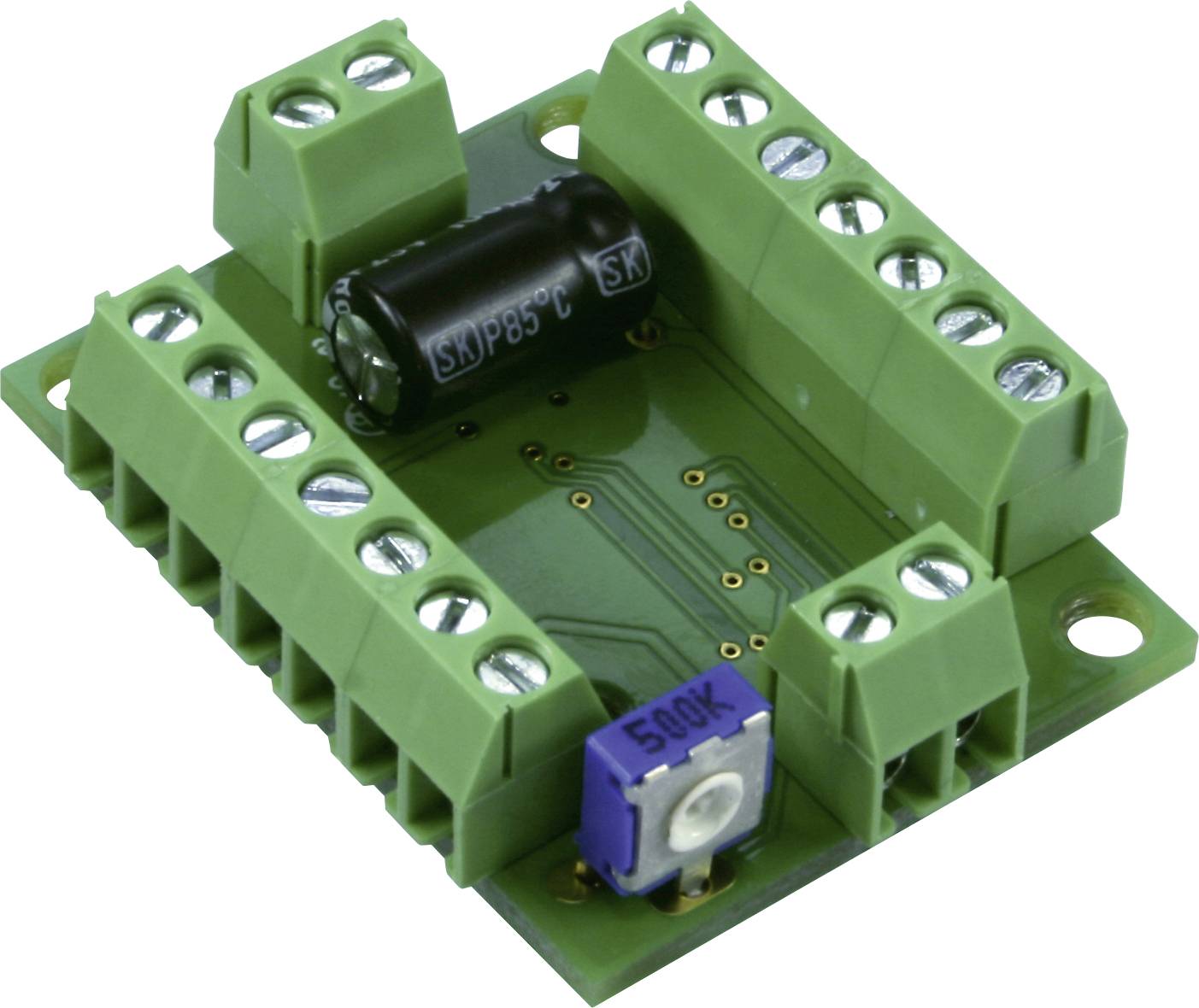

Green electronic circuit board with multiple terminal screws and a black capacitor, suitable for electrical connections.

1/8

Fast track dispatch on Wed, 30 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Workshop

Type: Prefab component

Age category: 15 years and over

Manufacturer part #: 53-04106-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373286 TAMS Elektronik 53-04106-01-C BST LC-NG-10 Flashing control circuits Workshop 1 pc(s)

Warranty Terms

Warranty Terms 2373286 TAMS Elektronik 53-04106-01-C BST LC-NG-10 Flashing control circuits Workshop 1 pc(s)

Description

Generation of different lighting effects in a workshop: Welding light, open fire (flicker), warning lights and fluorescent lamps. Connection possibility for the lighting of offices or living rooms. Output for a servo (e.g. for controlling a gate or crane).

This text is machine translated.

Features

14 outputs (max. 200 mA each), of which:
2 outputs for "open fire"*
1 outputs for a flashing light*
5 outputs for the welding lights*
5 outputs for "fluorescent lamps"*, which flicker briefly when switched on, before they reach their final brightness.
1 output for connecting a servo (e.g. for controlling a crane or a gate). Note: An external power supply is required for the servos (e.g. Servo board Conrad Item No. 499661)
*Lighting outputs for connecting glow lamps or LEDs (via series resistors).
Maximal total current: 1,000 mA
Use of the switching input: Switching the neon tubes on and off
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
