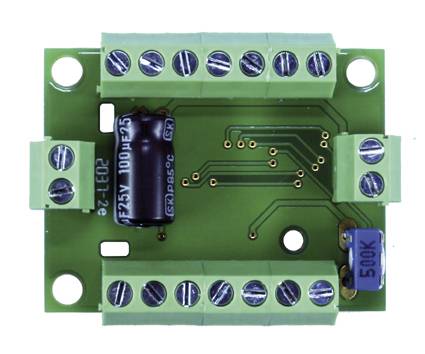

TAMS Elektronik 53-04155-01-C LC-NG-15 Lighting controller Hazard light, Town lighting 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 6 Piece(s) available
Highlights & Details
LC-NG-15 lighting control red warning system
- Complete protection of track construction sites with signal lights and acoustic warning device
Technical specifications
- 14 outputs (max. 200 mA each), of these 13 outputs for the connection of incandescent lamps or LEDs (via series resistors) and 1 output for the connection of a loudspeaker (loudspeaker set available as special accessories).
- Maximal total current: 1,000 mA
- Use of the switching input: Start / end of the process
- Adjustment on the trim potentiometer: Duration of the warning tone
- 12-18 volt alternating voltage or 10-22 VDC
- Size
Universal
- Product type
Lighting controller
- Functions
Hazard light
Town lighting
- Type
Assembly kit
- Age category
15 years and over
- Manufacturer part #
53-04155-01-C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3207340 TAMS Elektronik 53-04155-01-C LC-NG-15 Lighting controller Hazard light, Town lighting 1 pc(s)
Description
For controlling the signal lamps and the acoustic warning signal of an automatic warning system, which is used for safeguarding a track construction site.
The LEDs or lamps for the signal lights flash asynchronously as long as the switching input of the module is closed. The warning signal is played after closing the switching input for the duration set on a trimming potentiometer on the module. Note on the saved sound: The LC-NG module is not designed as a sound module, the stored sound is correspondingly simple.
This text is machine translated.
The LEDs or lamps for the signal lights flash asynchronously as long as the switching input of the module is closed. The warning signal is played after closing the switching input for the duration set on a trimming potentiometer on the module. Note on the saved sound: The LC-NG module is not designed as a sound module, the stored sound is correspondingly simple.
This text is machine translated.
Hints
Lamps, LEDs and speakers are not included.
