TAMS Elektronik Next18-Adapter 70-01051-01-C Next18 adapter Accessories
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details

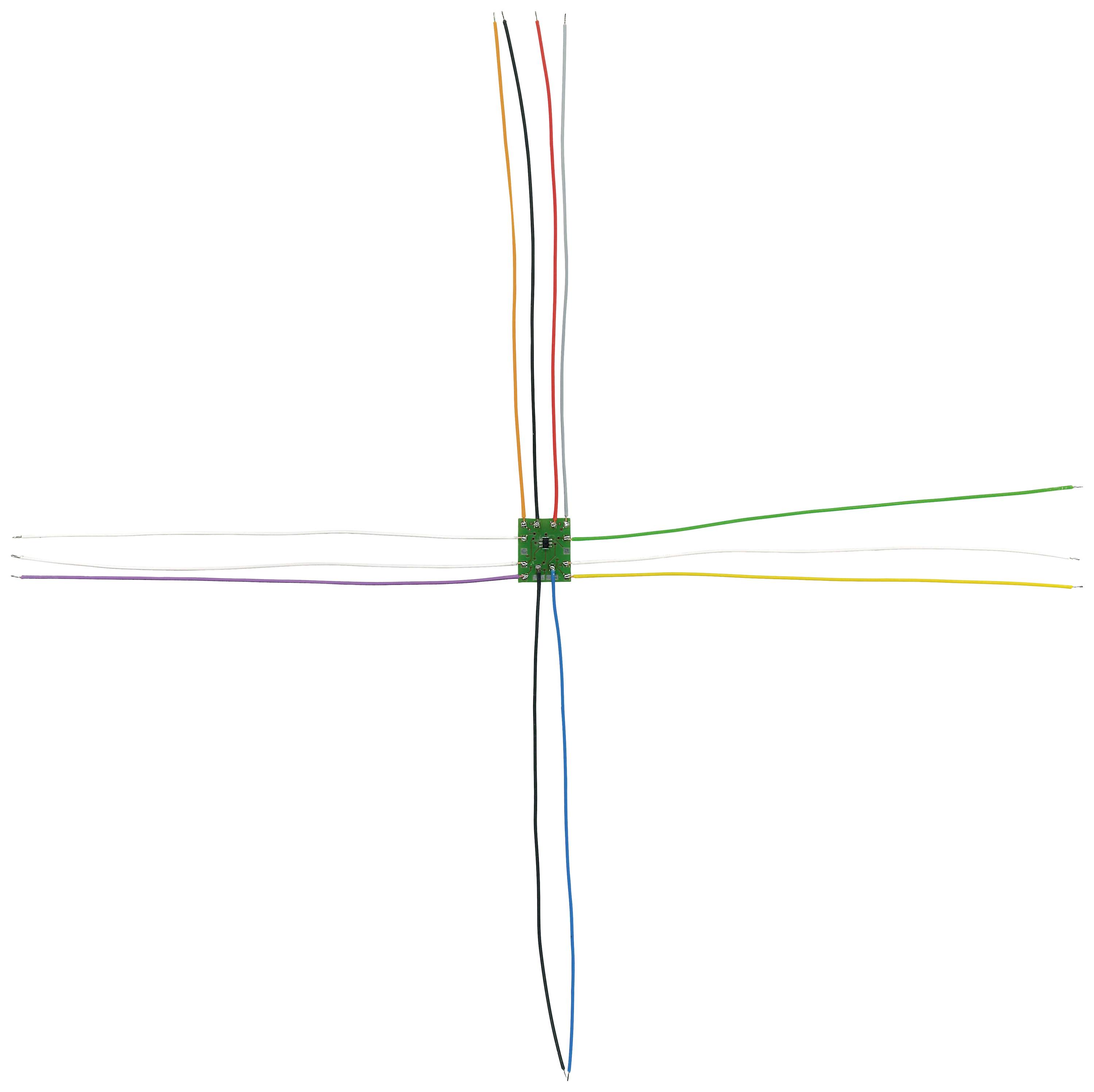

Next18 adapter with connection cables
- For retrofitting vehicles without Next18 interface
- Small dimensions
- Complete functional scope of the Next18 interface
- SMD-equipped circuit board with connection cables
Technical specifications
- Protection class: IP 00 (meaning: No protection against foreign objects, contact or water)
- Weight: approx 0.5 g
- Product type
Next18 adapter
- Type
Accessories
- Suitable for
Engines with digital decoders
- Length
12.5 mm
- Width
10.5 mm
- Height
4 mm
- Dim

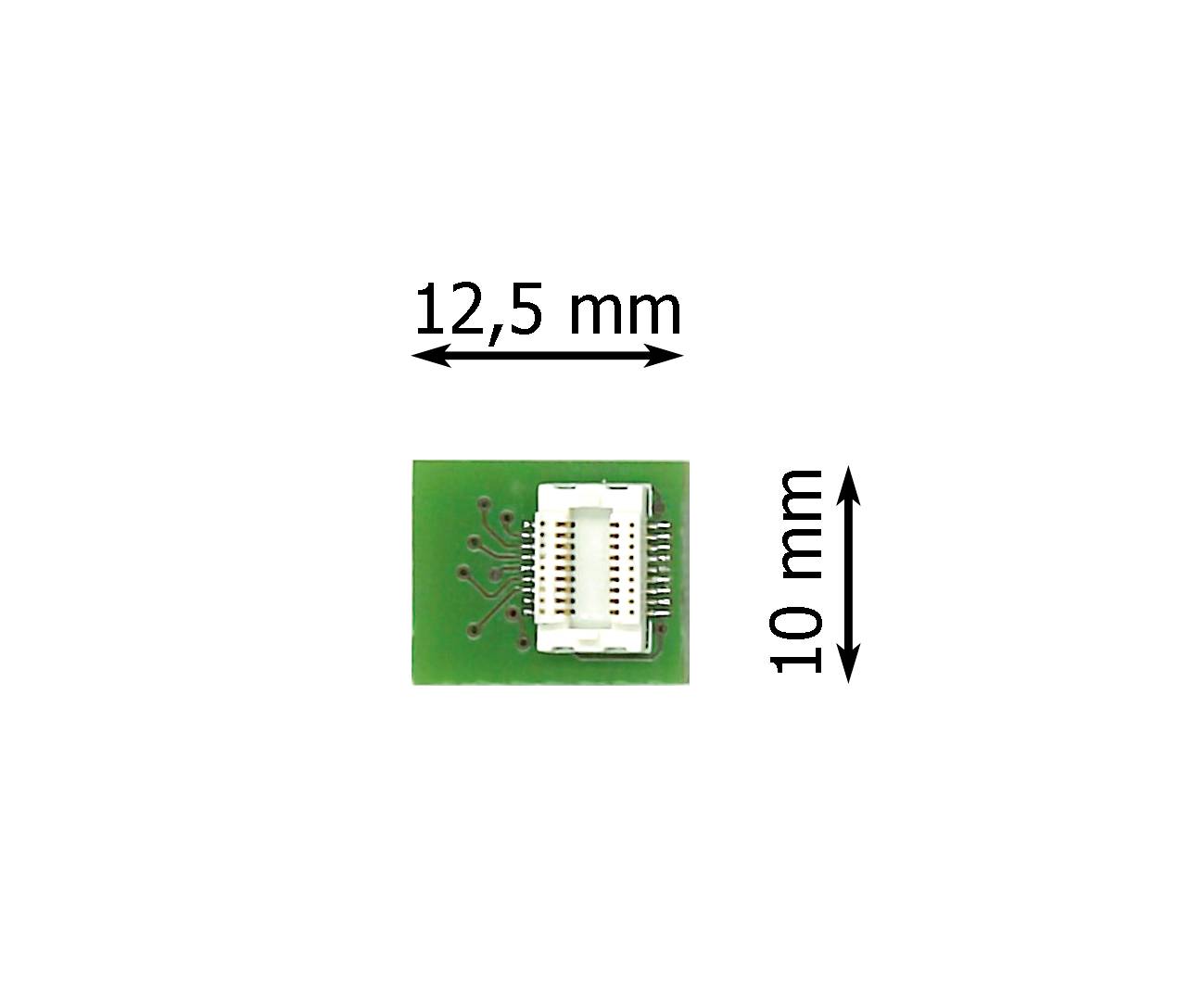

(L x W x H) 12.5 x 10.5 x 4 mm
- Age category
15 years and over
- Type
With cable
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3207343 TAMS Elektronik Next18-Adapter 70-01051-01-C Next18 adapter Accessories
Description
All connections of the Next18 interface are lead through solder pads.
Connections for function outputs:

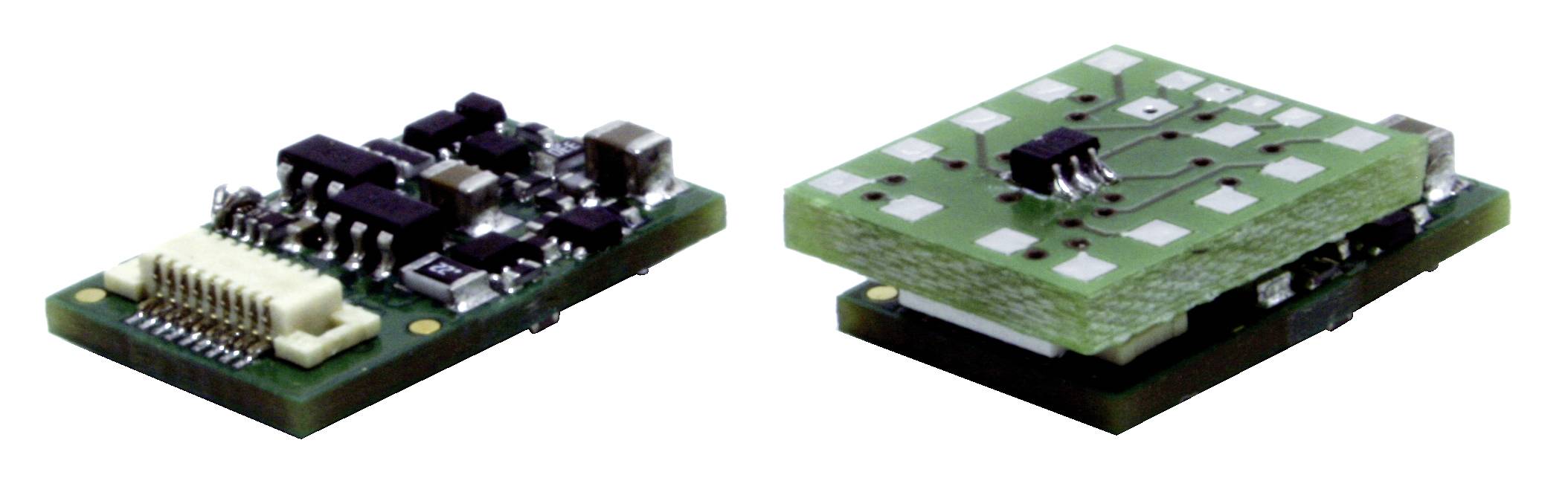

The use of the connectors depends on the decoder with which the adapter is combined.
With Next18 decoder without external SUSI module: 8 switching outputs (F0f and F0r amplified, AUX1 and AUX2 reinforced, AUX3 and AUX4 either amplified or unamplified, AUX5 and AUX6 not amplified)
With Next18 decoder with external SUSI module: 6 switching outputs (F0f and F0r amplified, AUX1 and AUX2 reinforced, AUX5 and AUX6 not amplified)
With Next18-S decoder: 6 switching outputs (F0f and F0r reinforced, AUX1 and AUX2 reinforced, AUX3 and AUX4 either amplified or not amplified).
Connection for support-elko (GND, U+). Can be used for:
External support electrolytic capacitor (capacity 100 to 470 µF, voltage strength min. 25 V) or
External buffer circuit in accordance with RCN-530 (switches against ground)
SUSI interface:
Corresponding to RCN-600 Version classic (up to 1000 mA)
For reasons of space, the SUSI interface is not designed with a pin header to host a cable plug. The connection cable of the SUSI module must be soldered directly to the soldering pads.
This text is machine translated.
