Target Ladungssicherung 90617 Double strap Low lashing capacity (single/direct)=400 daN (L x W) 4 m x 25 mm Ratchet EN 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

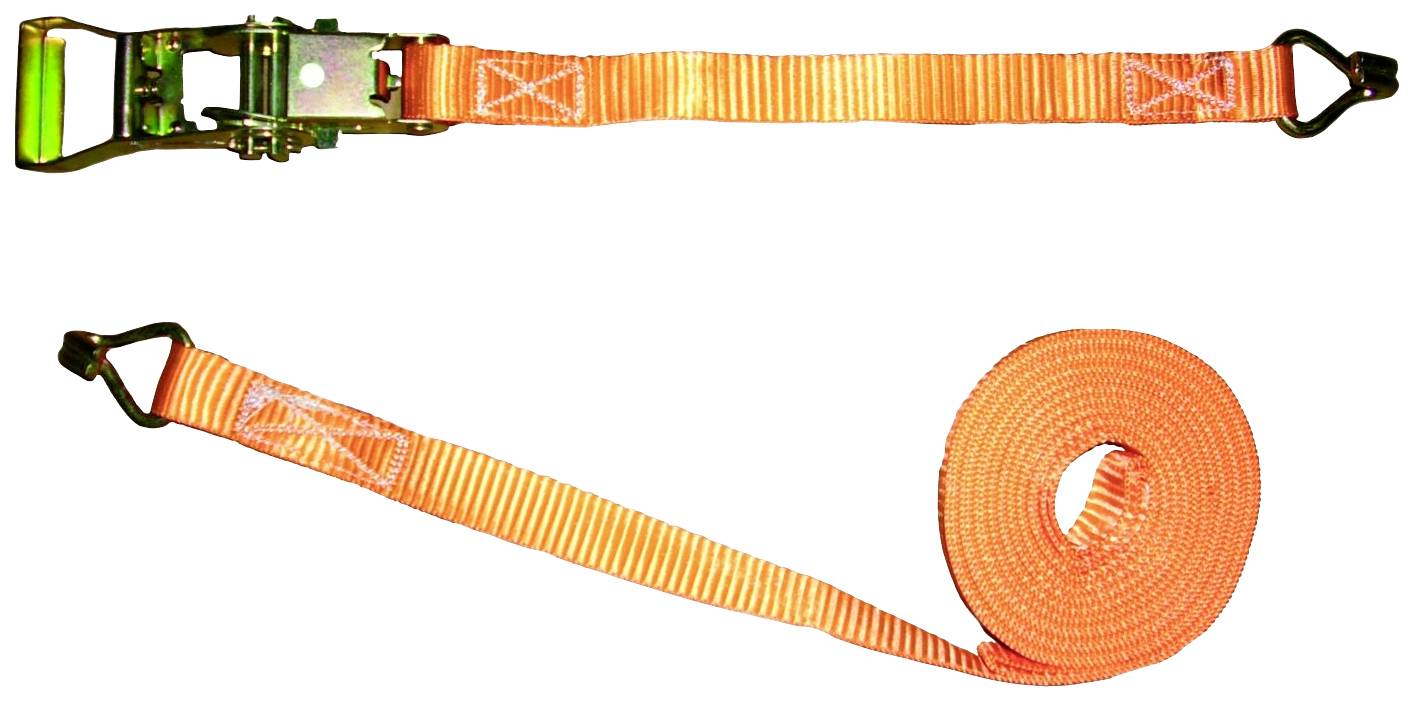

Fixing belt 25 mm, 2-part
- Pulling load 400/800 kg
- 4 metres
- Spike hook
Technical specifications
- Dim
(L x W) 4 m x 25 mm
- Product type
Double strap
- Type (hooks)
Single claw hook
- Factory colour
Orange
- Content
1 Set
- Material
Polyester fabric
- Width
25 mm
- Length
4 m
- Buckle (straps)
Ratchet
- Standard tension force
112 daN
- Diagonal lashing capacity (kg) (double/round pull)
800 kg
- Tensile force (kg, cargo low lashing) (single/direct)
400
- Diagonal lashing capacity (LC) (double/round pull)
800 daN
- Low lashing capacity (single/direct)
400 daN
- EN standard
EN 12195
Documents & Downloads
Datasheet
Datasheet 3221339 Target Ladungssicherung 90617 Double strap Low lashing capacity (single/direct)=400 daN (L x W) 4 m x 25 mm Ratchet EN 1
User & Safety Instructions
User & Safety Instructions 3221339 Target Ladungssicherung 90617 Double strap Low lashing capacity (single/direct)=400 daN (L x W) 4 m x 25 mm Ratchet EN 1
Description
Abrasion and abrasion-proof lashing strap with a bearing capacity of 400/800 kg in orange
This text is machine translated.
This text is machine translated.
Features
- Abrasion and abrasion-proof lashing strap with a bearing capacity of 400/800 kg in orange
- Made from polyester fabric with low elongation
- manufactured according to DIN EN 12195-2
- Width: 25 mm
- Available in different lengths
- Two-part with galvanized ratchet and pointed hooks
- Tear-resistant sewn label
- Series tensioning force STF 112 daN
Scope of delivery
- Fixing belt 25 mm, 2-part
